User manual ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2

Operating instructions and pdf manual for use - ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2 User manual, User manual ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2, ikan, VH8-2, 8, HDMI, Monitor, with, HD, Panel, Canon, VH8-2


User manual for ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
ikan VH8-2 8
  • Manufacturer: ikan
  • Basic description and contents of package
  • Product classification: Professional Video - Monitors - On Camera Monitors
  • Safety instructions
  • Startup and operation of the on camera monitors
  • Tips for setting up your ikan
  • Settings and expert assistance
  • Contact ikan service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2, which address similar problems with connecting and setting up On Camera Monitors ikan.



User manual for the ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2

The user manual for the ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2 provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

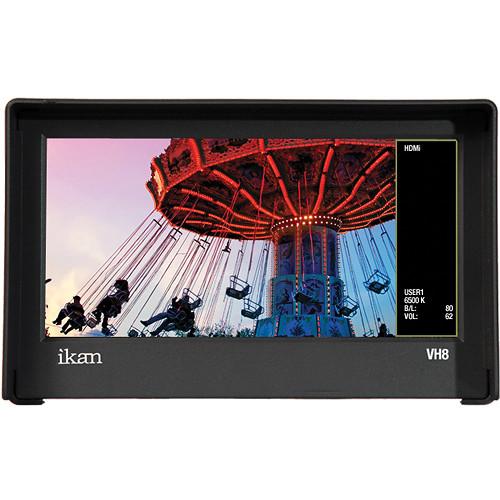

The ikan VH8-2 8" HDMI Monitor with HD Panel and Canon E6, Nikon EL15, Panasonic G6 Type Battery Plates is 1/2-inch thick and weighs a 1/2-pound.The screen features 1600 x 768 resolution, which provides an aspect ratio over 2:1, which allows the monitor to fit your HD image on the screen while the unused screen area on the side used by the Heads Up Display. Yet the monitor is lightweight enough to mount to your camera.

The monitor incorporates a variety of image display tools that aid you in capturing in-focus, well-exposed images. It has four assignable function buttons for programming your most commonly used of these features. All the monitor's buttons are away from screen view, with the four assignable buttons located at the top of the back panel, and with three more not far away. These three control the monitor's menu and select between the monitor's inputs, HDMI and Composite. The monitor comes with Canon E6, Nikon EL15, Panasonic G6, which can be swapped out for other optional battery plates.
If you own a ikan on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2:
Specifications
    Screen Size Approx. 7" (18 cm)
    Resolution 1600 x 768
    Inputs 1x HDMI
    1x Composite
    Outputs 1x HDMI
    1x Headphone jack
    LCD Brightness 300 nit
    Contrast Ratio 400:1
    Viewing Angles 35º/35º (R/L), 10º/30º (U/L)
    Supported Resolutions Video:
    NTSC-M, NTSC-J, NTSC 4.43
    PAL B/G H I D, PAL M, PAL N
    SECAM

    HDMI:
    720x480i & 720x480p @ 59.94, 60 Hz
    720x576i & 720x576p @ 50 Hz
    1280x720p @ 50, 59.94, 60 Hz
    1920x1080i @ 50, 59.94, 60 Hz
    1920x1080psf @ 24, 25, 29.97, 30 Hz
    1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
    Mount Type 2x 1/4"-20 (one on bottom, one on top)
    Operating Power DC 7 V - 24 V
    Dimensions 8 x 5 x .5" (20.3 x 12.7 x 1.27 cm)
    Weight .6 lb (.27 kg)
    Packaging Info
    Package Weight 2.4 lb
    Box Dimensions (LxWxH) 12.0 x 8.0 x 3.0"
    The user manual for the ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2 can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ikan users keep a unique electronic library for ikan on camera monitorss, where you can use our link to download the user manual for the ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2.

    The user manual lists all of the functions of the ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ikan service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ikan VH8-2 8" HDMI Monitor with HD Panel and Canon VH8-2. User manuals are also available on the ikan website under Professional Video - Monitors - On Camera Monitors.
