User manual Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB

Operating instructions and pdf manual for use - Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB User manual, User manual Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB, Ikegami, HLM-2450WB, Multi-Format, LCD, Monitor, HLM-2450WB,


User manual for Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB
  • Manufacturer: Ikegami
  • Basic description and contents of package
  • Product classification: Professional Video - Monitors - Production Monitors
  • Safety instructions
  • Startup and operation of the production monitors
  • Tips for setting up your Ikegami
  • Settings and expert assistance
  • Contact Ikegami service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB, which address similar problems with connecting and setting up Production Monitors Ikegami.



User manual for the Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB

The user manual for the Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB provides necessary instructions for the proper use of the product Professional Video - Monitors - Production Monitors.

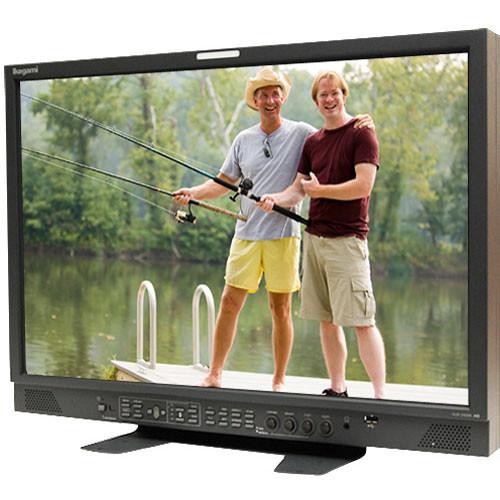

The Ikegami HLM-2450WB Multi-Format LCD Monitor is a 24" high definition LCD monitor designed specifically for professional editing workstations and broadcast studios. The monitor offers a plethora of features to make the process from acquisition all the way to delivery as smooth as possible. Features include HD-SDI, tally, signal generator, waveform display, split screen and much more. Additionally, its modular design allows for additional input boards to be added and removed depending on your specific needs.
If you own a Ikegami production monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB:
Specifications
    Application Broadcast Monitoring
    LCD Size 24"
    Video System NTSC/PAL
    1080i/60 (59.94), 1080i/50, 1080p/30 (29.97), 1080psF/30, 1080p/25, 1080psF/25, 1080p/24, (23.98), 1080psF/24 (23.98), 1035i/60, 59.94, 720p/60 (59.94), 720p/50, 720p/30 (29.97), 720p/25, 720p/24 (23.98), 480i/59.94, 480p/59.94, 575i/50
    Picture Elements 1920 x 1200
    Viewing Angle 178°
    Contrast Ratio 1000:1 (max)
    Brightness 400cd/m²
    Number of Colors 1.07 Billion
    Input and Output Connectors Composite Video: BNC (x2 Input)
    HD-SDI: BNC (x2 Input, x1 Output)
    DVI: DVI-D (x1 Input)
    Analog Audio: RCAx2 (x1 Input)
    Tally: 9-Pin DSub (x1)
    Remote: RS-232C (x1)
    Speakers Built-in Stereo (1W + 1W)
    Picture Controls Menu System, Front Panel Controls
    Remote Control Serial RS-232C, Parallel, IR
    Mount Type Not Specified By Manufacturer
    Power Requirements 100-240VAC ±10%, 50/60 Hz
    Power Consumption 98-120W
    Dimensions (WxHxD) 22.1 x 15.6 x 3.5" (56.2 x 39.6 x 9cm)
    Weight Display: 19.8 lbs (9kg)
    Stand: 7.1 lbs (2.3kg)
    Packaging Info
    Package Weight 33.0 lb
    Box Dimensions (LxWxH) 25.0 x 17.0 x 16.0"
    The user manual for the Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB can be downloaded in .pdf format if it did not come with your new production monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ikegami users keep a unique electronic library for Ikegami production monitorss, where you can use our link to download the user manual for the Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB.

    The user manual lists all of the functions of the Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB, all the basic and advanced features and tells you how to use the production monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ikegami service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ikegami HLM-2450WB Multi-Format LCD Monitor HLM-2450WB. User manuals are also available on the Ikegami website under Professional Video - Monitors - Production Monitors.
