User manual for the Iluminar IR312-PoE Series PoE Powered IR IR312-C100-POE-2

The user manual for the Iluminar IR312-PoE Series PoE Powered IR IR312-C100-POE-2 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Additional Accessories - Illuminators.

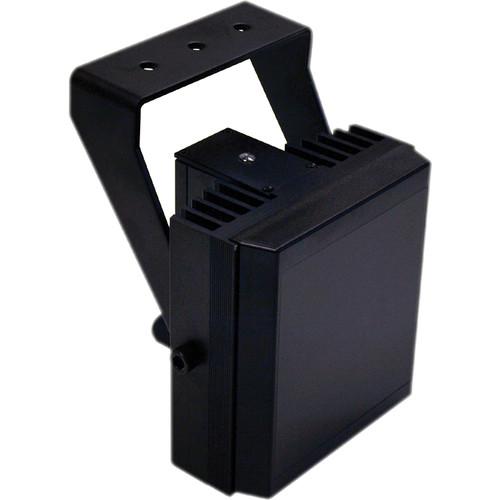

The 940nm IR312-PoE Series PoE+ Powered IR Illuminator from Iluminar provides IR lighting for CCTV systems via a PoE+ enabled network infrastructure. The illuminator provides 940nm covert illumination, which is invisible to the human eye, up to a distance of 40'. It offers an illumination angle of 100° x 50°. Rated to IP67, it is weather-resistant and can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations (-58 to 140°F).
If you own a Iluminar illuminators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Iluminar IR312-PoE Series PoE Powered IR IR312-C100-POE-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Iluminar IR312-PoE Series PoE Powered IR IR312-C100-POE-2:
IR LEDs
Number of LEDs 16 (SMT LEDs)
Wavelength 940 nm (covert)
No visible glow from illuminator - suitable for transportation or high-security applications
Illumination Angle 100° x 50°
Illumination Distance 40' (12 m)
HOV 94' (29 m)
Electrical
Power Over Ethernet IEEE802.3at compliant
Power Consumption 26 W
Power Connection Type IP67-rated RJ45 CAT5e compliant connector
General
Construction Extruded aluminum
Front Window Polycarbonate high-transmittance protective (vandal-proof) with IR filter
Interface Connector Photocell following contact & remote telemetry input
Pressure Equalization Vent Yes, prevents thermal expansion & pressure cycling
Photocell Adjustment via potentiometer
Illumination Adjustable via potentiometer
Mount Black powder-coated stainless steel wall mount, adjustable via M6 Allen key (included)
Certifications
Safety Electrical Safety: EN60598:2004
Laser Eye Safety: EN60825-1
IP IP67 in accordance with EN60529:1992
EMC EN61000, FCC part 15.107
15.108 Class B
WEEE Waste Electrical & Electronic Equipment European directive 202/96/EC
RoHS Restriction of Hazardous Substances European directive 202/95/EC
Environmental
Operating Temperature -58 to 140°F (-50 to 60°C)
Dimensions & Weight
Dimensions 4.49 x 4.33 x 3.07" (114 x 110 x 78.0 mm)
Weight 2.3 lb (1.1 kg)
Packaging Info
Package Weight 4.0 lb
Box Dimensions (LxWxH) 12.0 x 8.0 x 8.0"
The user manual for the Iluminar IR312-PoE Series PoE Powered IR IR312-C100-POE-2 can be downloaded in .pdf format if it did not come with your new illuminators, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Iluminar users keep a unique electronic library for Iluminar illuminatorss, where you can use our link to download the user manual for the Iluminar IR312-PoE Series PoE Powered IR IR312-C100-POE-2.

The user manual lists all of the functions of the Iluminar IR312-PoE Series PoE Powered IR IR312-C100-POE-2, all the basic and advanced features and tells you how to use the illuminators. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Iluminar service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Iluminar IR312-PoE Series PoE Powered IR IR312-C100-POE-2. User manuals are also available on the Iluminar website under Surveillance - Surveillance Video - Additional Accessories - Illuminators.
