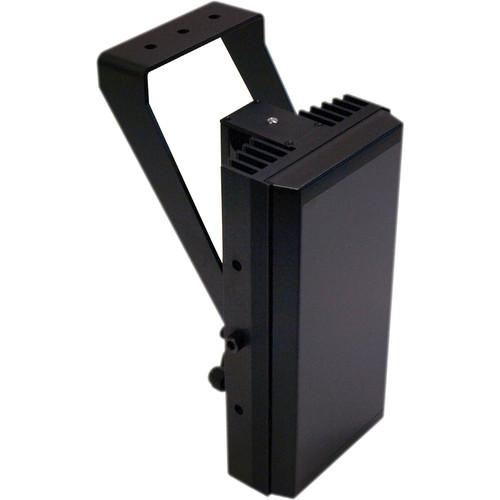

The black 940nm IR919 Series Super Long-Range IR Illuminator from Iluminar is designed to provide IR lighting for CCTV systems. This illuminator has a range of up to 114' (35m) and offers an illumination angle of 100° x 50°. The IP67-rated and vandal-proof IR illuminator can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140˚F (-50 to 60˚C).
If you own a Iluminar illuminators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Iluminar IR919 Series Super Long-Range IR IR919-C100-24-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Iluminar IR919 Series Super Long-Range IR IR919-C100-24-2:
Specifications
    Illumination Angle 100° x 50°
    Illumination Distance 114' (35 m)
    Horizontal Field-of-View 273' (83 m)
    Wavelength 940 nm (covert)
    No visible glow from illuminator - ideal for transportation or high security applications
    Electronics High-efficiency surface mount high-power LEDs with advanced current limited integral control circuitry
    Number of SMT LEDs 32
    Photocell Adjustment via potentiometer
    Illumination Adjustment via potentiometer
    Mount Black, powder-coated stainless steel wall mount
    Adjustable via M6 Allen key (included)
    Construction Robust aluminum extrusion
    Front Window Polycarbonate high transmittance protective (vandal-proof) IR filter
    Interface Connector Photocell following contact & remote telemetry input
    Power Cable 9' (3 m)
    Input Voltage 12 to 32 VDC or 24 VAC
    Input Current 2.2 A at 24 VAC
    Power Consumption 52 W
    IP Rating IP67 in accordance with EN60529:1992
    Certifications Safety:
    EN60598:2004 Electrical Safety
    EN60825-1 Laser Eye Safety

    EMC:
    EN61000, FCC part 15.107
    15.108 Class B

    WEEE directive 202/96/EC

    RoHS directive 202/95/EC
    Operating Temperature -58 to 140°F (-50 to 60°C)
    Dimensions 8.39 x 4.33 x 3.07" (21.30 x 11.00 x 7.80 cm)
    Weight 3.90 lb (1.75 kg)
    Packaging Info
    Package Weight 7.0 lb
    Box Dimensions (LxWxH) 12.0 x 12.0 x 10.0"
