User manual Impact VC-500WL 500Ws Digital Monolight VC-500WL

Operating instructions and pdf manual for use - Impact VC-500WL 500Ws Digital Monolight VC-500WL User manual, User manual Impact VC-500WL 500Ws Digital Monolight VC-500WL, Impact, VC-500WL, 500Ws, Digital, Monolight, VC-500WL, Video

User manual for Impact VC-500WL 500Ws Digital Monolight VC-500WL

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Impact  VC-500WL 500Ws Digital Monolight VC-500WL
  • Manufacturer: Impact
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Strobe Lighting - Monolights
  • Safety instructions
  • Startup and operation of the monolights
  • Tips for setting up your Impact
  • Settings and expert assistance
  • Contact Impact service
  • Troubleshooting
  • Warranty information
  • Price: 490 USD
We recommend checking out our discussion threads on the Impact VC-500WL 500Ws Digital Monolight VC-500WL, which address similar problems with connecting and setting up Monolights Impact.

User manual for the Impact VC-500WL 500Ws Digital Monolight VC-500WL

The user manual for the Impact VC-500WL 500Ws Digital Monolight VC-500WL provides necessary instructions for the proper use of the product Lighting & Studio - Strobe Lighting - Monolights.

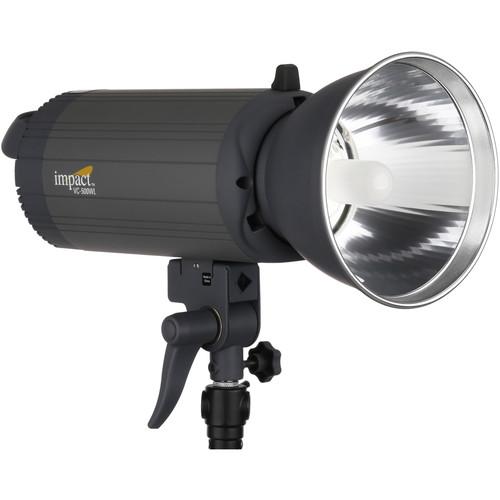

Upgrade your lighting kit or studio with the versatile VC-500WL 500Ws Digital Monolight from Impact, featuring a 6-stop power range from full to 1/32 in 1/10 stop increments for excellent control over your light output. Stopping motion is made easy with a flash duration of 1/1,200 to 1/800 second and a fast recycle time of just 1.5 seconds at full power ensures you won't miss the shot. In addition to these capabilities, the light has a built-in 16-channel 2.4 GHz wireless radio receiver with a 328' range for remote triggering using an optional transmitter.

Advanced CMOS Chip Circuitry enables a variety of advanced features, such as the ability to program pre-flash modes for use with your on-camera flashes and reduces the amount of heat generated during operation. The internal temperature is further kept under control with Adaptive Thermal Control technology that keeps the fan working during long sessions. Also, the light has soft-start circuitry that gradually raises the modeling light's brightness upon startup to prolong its lifespan.

The VC-500WL is equipped with a 1/4" port for synchronization using the included 11' cable and it has a low 5V trigger voltage to protect the electronics of both the light and camera. Accessories are easily attached via the S-type mount and it comes with an umbrella reflector that lines up the with umbrella mount on the adjustable 5/8" stand mount for additional stability.
If you own a Impact monolights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Impact VC-500WL 500Ws Digital Monolight VC-500WL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Impact  VC-500WL 500Ws Digital Monolight VC-500WLDownload user manual for Impact VC-500WL 500Ws Digital Monolight VC-500WL
(PDF file, 2.35 MB)
Additional parameters of the Impact VC-500WL 500Ws Digital Monolight VC-500WL:
Construction Aluminum casting with textured coating, polymer
Output 500 Ws
Guide Number 255' (78 m) @ ISO 100
Variable Power Full to 1/32 in 1/10 stop increments, 6 stops
Recycle Time 1.5 Sec. @ max. power, 0.2 sec. @ min. power
Flash Duration 1/800 sec. @ max. power, 1/1200 sec. @ min power
Flash Ready Indicator Visible or audible confirmation
User Replaceable Flashtube Yes, (LR9901YSP1H)
Modeling Light E26/27, 250 W max.
SSC (Soft Start Circuitry)
Settings: Proportional, Independent, Off
Triggering 16-Channel built-in 2.4 GHz wireless receiver with use of optional transmitter
Sync cable, test button, slave sensor with red eye feature
Slave Mode Red-eye reduction, synchronous
Control Method Touchpad control back panel
Trigger Voltage 5 VDC
Wireless Range 328' (100 m)
Color Temperature 5,600 K (+/- 100 K) @ 110 - 120 VAC 60 Hz
Sync Input 1/4" (6.35 mm)
Length: 11' (3.35 m)
Power Cable 16' (4.87 m)
Fan Cooled Yes, with adaptive thermal control
Auto Dump Yes
Changeable Reflector Yes, S-type mount
User Replaceable Flashtube Yes
Modeling Light Wattage 250 W
Voltage Stabilization Yes
Flash Ready Indicator LED, switchable audible beep
Built-in Slave Cell Yes
Circuit Protection 12.5 A fuse
Auto Dump Yes
Voltage 100 - 130 VAC, 50/60 Hz
Dimensions 16.5 x 5.0 x 5.0" (42 x 13 x 13 cm) with protective cap
Weight 5.5 lb (2.5 kg)
Packaging Info
Package Weight 9.45 lb
Box Dimensions (LxWxH) 19.606 x 11.339 x 8.819"
The user manual for the Impact VC-500WL 500Ws Digital Monolight VC-500WL can be downloaded in .pdf format if it did not come with your new monolights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Impact users keep a unique electronic library for Impact monolightss, where you can use our link to download the user manual for the Impact VC-500WL 500Ws Digital Monolight VC-500WL.

The user manual lists all of the functions of the Impact VC-500WL 500Ws Digital Monolight VC-500WL, all the basic and advanced features and tells you how to use the monolights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Impact service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Impact VC-500WL 500Ws Digital Monolight VC-500WL. User manuals are also available on the Impact website under Lighting & Studio - Strobe Lighting - Monolights.
