User manual for Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401
- Manufacturer: Intel
- Basic description and contents of package
- Product classification: Computers & Solutions - Drives & Storage - Internal Drives
- Safety instructions
- Startup and operation of the internal drives
- Tips for setting up your Intel
- Settings and expert assistance
- Contact Intel service
- Troubleshooting
- Warranty information
|
We recommend checking out our discussion threads on the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401,
which address similar problems with connecting and setting up Internal Drives Intel.
|
User manual for the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401
The user manual for the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401 provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

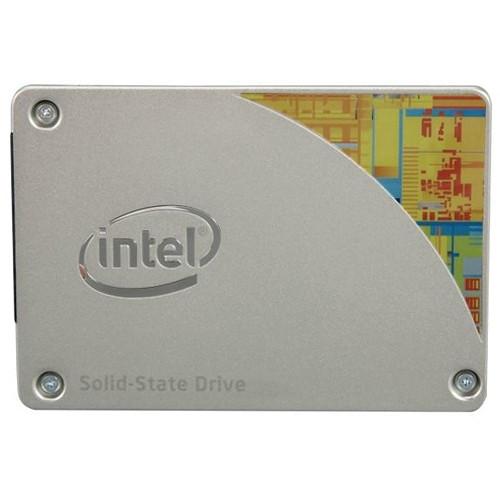

The 180GB 530 Series Internal Solid State Drive (OEM) from Intel features a 180GB storage capacity in a reduced size form factor. This 2.5" drive is 7mm thick, making it a well suited storage solution for a variety of devices from desktop computers to laptops, Ultrabooks, tablets, and more.
With data read speeds of up to 540 MB/s and data write speeds of up to 490 MB/s, you can transfer your files quickly and efficiently. This SSD can also serve as an ultra-fast bootable drive, greatly reducing the time it takes to start up your computer. Additionally, the Intel 530 Series SSD consumes far less power than comparable SSDs and hard disc drives allowing you to go longer periods of time between charges.
|
If you own a Intel internal drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401:
| Capacity | 180 GB | | Components | Intel 20 nm NAND flash memory
Multi-Level Cell (MLC) | | Sustained Sequential Read | Up to 540 MB/s | | Sustained Sequential Write | Up to 490 MB/s | | Random 4K Read | Up to 40,000 IOPS | | Random 4K Write | Up to 80,000 IOPS | | Latency Average | Read: 80 µs (typical) Write: 85 µs (typical) | | Security | 256-bit AES encryption | | Compatibility | − Intel SSD Toolbox with Intel SSD Optimizer
− Intel Data Migration Software
− Intel Rapid Storage Technology
− SATA Revision 3.0
− ACS-2 (ATA/ATAPI Command Set 2)
− SSD Enhanced SMART ATA feature set | | Power Management | − 5.0 V SATA Supply Rail
− SATA Link Power Management (LPM)
− Device Sleep (DevSleep) | | Power | − Active (BAPCo MobileMark 2007 Workload): 195 mW
− Idle: 125 mW
− DevSleep: 5 mW | | Temperature | − Operating: 32 to 158°F / 0 to 70°C
− Non-Operating: -67 to 203°F / -55 to 95°C | | Reliability | − Uncorrectable Bit Error Rate (UBER): <1 sector per 1016 bits read
− Mean Time Between Failure (MTBF): 1,200,000 hours
− Shock (operating and non-operating): 1,500 G/0.5 msec | | Vibration | − Operating: 2.17 GRMS (5-700 Hz)
− Non-operating: 3.13 GRMS (5-800 Hz) | | Certifications | UL, CE, C-Tick, BSMI, KCC, Microsoft WHCK, VCCI, SATA-IO | | Compliance | RoHS | | Form Factor | 2.5" | | Thickness | 7 mm | | Weight | 2.75 oz / 78 g | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.0 x 4.3 x 0.9" | |
The user manual for the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401 can be downloaded in .pdf
format if it did not come with your new internal drives, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Intel users keep a unique electronic library
for Intel internal drivess,
where you can use our link to download the user manual for the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401.
The user manual lists all of the functions of the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401,
all the basic and advanced features and tells you how to use the internal drives.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Intel service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401. User manuals are also
available on the Intel website under Computers & Solutions - Drives & Storage - Internal Drives.
Question and answer discussion forum concerning user instructions and resolving problems with the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401 - no comments have been made yet - be the first to add a comment
Post new comment/question/response regarding the Intel 180GB 530 Series Internal Solid State SSDSC2BW180A401
|
|
|
|
|
