User manual for the Intelix FLX-44 HDMI/HDBaseT Matrix Switcher (4x4, 1RU) FLX-44

The user manual for the Intelix FLX-44 HDMI/HDBaseT Matrix Switcher (4x4, 1RU) FLX-44 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

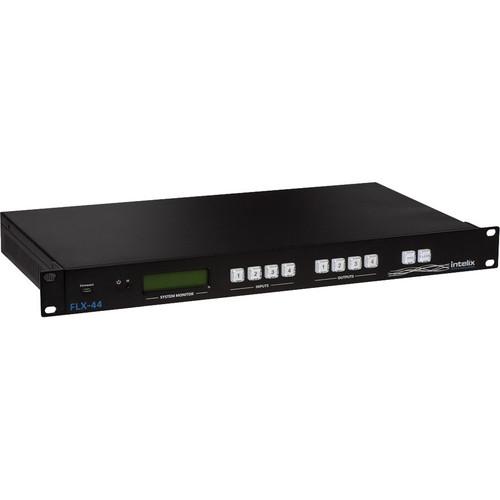

The Intelix FLX-44 HDMI/HDBaseT Matrix Switcher is a 4 input and 4 output matrix switcher designed for audio and video routing and for distribution of HDMI signals.

The FLX-44 features HDBaseT twisted pair extension for each output, and simultaneous HDMI on the first 2 outputs, allowing the same signal to be routed to the HDMI connector and a remote destination with an HDBaseT receiver. The HDBaseT ports support 1080p HDMI video with audio, bi-directional wide-band IR, matrix control via IR, RS-232 tunneling, and HDCP up to 196' away. Each HDBaseT output port supplies power to the attached extender, eliminating the need for a power supply at the display end. Each output features a stereo audio de-embedder for connection to amplifiers or DSPs.

The switcher can be controlled by front panel buttons or by IR, RS-232, or Etherenet connections. The front panel buttons are numbered and have clear caps for easy visibility. The matrix includes a simple IR remote control to allow IR switching. This IR remote control can be learned into universal remotes and IR based control systems. An IR All In port is provided, which allows one IR connection to control all 4 remote displays.

The 1RU matrix also features a full command set for RS-232 and Ethernet control with third party control systems, as well as control via a web browser. RS-232 commands to remote displays can also be embedded in the control stream through the matrix from both the RS-232 and Ethernet control ports, which will reduce the number of serial ports required for the control system.

The FLX-44 is HDMI compatible and supports up to 2K resolutions, Deep Color, and full 3D capabilities. The matrix features advanced EDID and HDCP handling, and has the ability to turn HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources. This switcher is designed for matrix routing in environments with demanding control system requirements such as corporate video conferencing, boardrooms, conference centers, and similar venues.
If you own a Intelix video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Intelix FLX-44 HDMI/HDBaseT Matrix Switcher (4x4, 1RU) FLX-44 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Intelix FLX-44 HDMI/HDBaseT Matrix Switcher (4x4, 1RU) FLX-44:
Specifications
    Connectors
    Input Connectors 4 x HDMI Type A receptacle, female
    4 x 3.5 mm phone jack TRS, IR, female
    1 x 3.5 mm phone jack TRS IR All In, female
    1 x 3.5 mm phone jack TRS, IR Eye, female
    Output Connectors 2 x HDMI Type A receptacle
    4 x RJ45, HDBaseT (1 per output)
    4 x 3.5 mm 3-pole removable Euroblock, audio
    4 x 3.5mm phone jack TRS IR , female
    RS-232 Connector 4 x 3.5 mm 3-pole removable Euroblock
    Power Connector 1 x 4-pin amphenol CPC, female
    Control 1 x Mini USB, firmware upgrade
    Supported Formats
    Audio Embedded Audio Compatibility: Up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    Video Resolutions HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p
    VESA: Up to 1920 x 1200
    Maximum Distance CAT 5e @ 1080p 2D: 197' (60 m)
    CAT 5e @ 1080p 3D: 115' (35 m)

    Per linked unit

    Extender
    Bandwidth 6.75 Gbps
    Input DDC Signal 5 VDC pp (TTL)
    Input Video Signal 0.5 - 1 VDC pp
    Supported IR Carrier Frequency 33 - 35 kHz @ 5 V
    Cable Requirements Solid core Category 6 or 6A with TIA/EIA-568B crimp pattern
    Power
    Power Requirement 100 - 240 VAC, 1.8 A
    Power Output 48 VDC, 5 A
    Maximum Power Consumption 150 W
    ESD Protection 15 kV
    General Specifications
    Controls 4 x Input control button
    4 x Output control button
    1 x IR control
    1 x Take
    1 x Clear
    Indicators 1 x LCD output status
    1 x LED power
    Compatibility DIGIB-EMT IR transmitter
    DIGIB-EYE IR receiver
    DIGI-HD70-R A/V receiver
    DIGI-HDE-R A/V, IR, and RS-232 receiver
    DIGI-HD60C-R A/V, IR, RS-232, and PoE receiver
    Regulations FLX-44: CE, RoHS
    Power supply: UL, FCC, CCC, CE, and RoHS
    Enclosure Painted Aluminum
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature 32 to 104°F (0 to 40°C)
    Humidity 20 - 90% non-condensing
    Dimensions 17.1 x 9.3 x 1.7" (43.5 x 23.5 x 4.4 cm)
    Weight 4.5 lb (2.0 kg)
    Packaging Info
    Package Weight 8.65 lb
    Box Dimensions (LxWxH) 21.1 x 13.3 x 5.8"
