User manual iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B

Operating instructions and pdf manual for use - iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B User manual, User manual iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B, iOptron, Cube-A, SmartStar, GoTo, Mount, with, Tripo


User manual for iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B

iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B
  • Manufacturer: iOptron
  • Basic description and contents of package
  • Product classification: Optics - Telescopes - Mounts
  • Safety instructions
  • Startup and operation of the mounts
  • Tips for setting up your iOptron
  • Settings and expert assistance
  • Contact iOptron service
  • Troubleshooting
  • Warranty information
  • Price: 420 USD
iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B
Click to enlarge image

We recommend checking out our discussion threads on the iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B, which address similar problems with connecting and setting up Mounts iOptron.



User manual for the iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B

The user manual for the iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B provides necessary instructions for the proper use of the product Optics - Telescopes - Mounts.

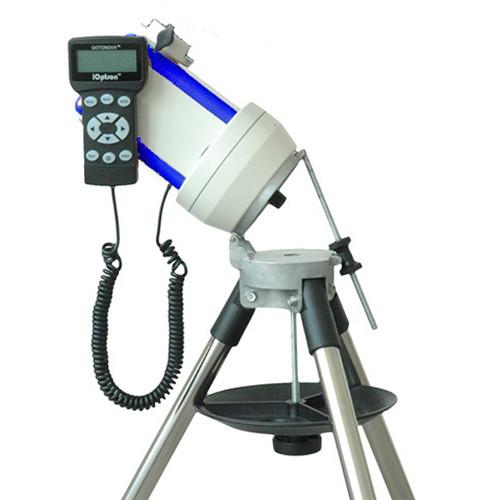

iOptron's versatile blue Cube-A SmartStar GoTo Mount features a unique dual-mount capability to allow its use as either a simple alt-az mount or as an equatorial mount with the integrated wedge on the tripod. It sports a compact mount design that measures a mere 8.75x5x5" while being a functional & flexible motorized computer-controlled unit for most star gazing duties. Both axis motors are built into a small single unit which is compatible with all telescope OTAs up to 7 lb, with accessories, that have a Vixen-style dovetail plate. The low-profile housing eliminates "dead spots" enabling you to point your telescope to any point above the horizon, unlike other mounts which tend to block the telescope tube at certain points of rotation. This mount comes with a 110 VAC adapter to power it if you're near civilization, but if you're heading off the grid it can run on eight user-supplied AA batteries. A 1.25" stainless steel tripod is provided so all you need is a compatible OTA to start your observation session.
If you own a iOptron mounts and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B:
Specifications
Mount Type Dual-mode motorized alt-azimuth/equatorial
Load Capacity 7.0 lb / 3.2 kg
Motor Dual-axis 12 VDC servomotor with encoders
GoTo System Go2Nova 8401 hand controller
Polar Axis Scope None
Tripod Adjustable stainless steel
1.25" / 3.2 cm leg diameter
Min height: 27.5" / 69.9 cm
Max height: 42.75" / 108.6 cm
Power Source 8 x AA batteries
110 VAC power adapter
Power Requirements 12 VDC, 1.2 A
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions Mount: 8.75 x 5.0 x 5.0" / 22.2 x 12.7 x 12.7 cm
Weight Mount: 3.6 lb / 1.6 kg
Tripod: 5.6 lb / 2.5 kg
Packaging Info
Package Weight 14.15 lb
Box Dimensions (LxWxH) 40.0 x 7.9 x 7.4"
The user manual for the iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B can be downloaded in .pdf format if it did not come with your new mounts, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other iOptron users keep a unique electronic library for iOptron mountss, where you can use our link to download the user manual for the iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B.

The user manual lists all of the functions of the iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B, all the basic and advanced features and tells you how to use the mounts. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from iOptron service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the iOptron Cube-A SmartStar GoTo Mount with Tripod (Blue) 8600B. User manuals are also available on the iOptron website under Optics - Telescopes - Mounts.
