User manual for the IQinVision IQeye 7 Series IQ761WI-V17 1MP Day/Night IQ761WI-V17

The user manual for the IQinVision IQeye 7 Series IQ761WI-V17 1MP Day/Night IQ761WI-V17 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

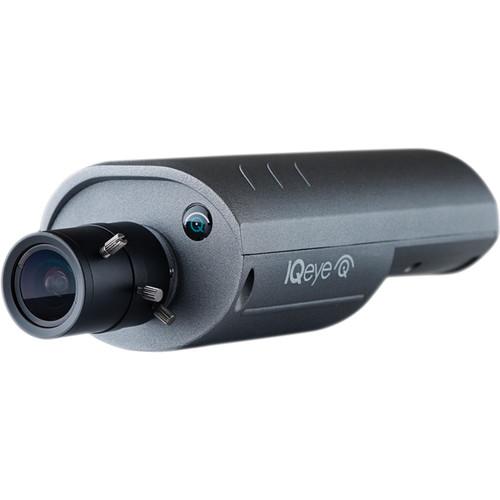

The gray IQeye 7 Series IQ761WI-V17 1MP Day/Night Megapixel Indoor IP Camera from IQinVision offers a blend of high-end features that make it suitable for monitoring areas such as banks, airports, driveways and healthcare centers. Included in the package are the Megapixel Day/Night Camera and a 3.3-10mm wide angle lens along with the necessary cables that you need for installation. With its 1/3" CMOS sensor, the security camera captures clear images at a resolution of up to HD720p. In addition, this camera's 3.3-10mm telephoto lens with a 70° wide and 27° tele oscillatory ventilation ensures coverage of a wider surveillance area.
If you own a IQinVision wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the IQinVision IQeye 7 Series IQ761WI-V17 1MP Day/Night IQ761WI-V17 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the IQinVision IQeye 7 Series IQ761WI-V17 1MP Day/Night IQ761WI-V17:
Video
Sensor 1/3" CMOS
Compression H.264: Main profile
MJPEG: User configurable quality settings for JPEG compression
Shutter Speed Auto / Programmable / Fixed
Image Settings Saturation, Contrast, Brightness, Sharpness, Lightgrabber II
Exposure User configurable
White Balance Auto/Programmable
Backlight Compensation Auto
IR Range 800 to 940 nm
Maximum Resolution HD720p - 1280 x 720
Frame Rate 60 fps
Minimum Illumination Color: 0.1 lux, B/W: lesser than 0.05 lux
Lens Mount CS
Lens 1/2.5" format 3.3-10 mm wide angle lens
Maximum HFOV Telephoto: 27° Wide: 70°
Aperture F1.4
Iris Operation Manual
Day/Night Yes
Features
Motion Detection User configurable windows
Image Settings Image Crop: User configurable windows
Access Control Access Hours : User configurable
Recording Time lapse & event based recording: User configurable
Rotate 180°, horizontal, vertical
Digital Flip 180°, horizontal, vertical
Analog Video Continuous NTSC/PAL
Audio Support 2-way G.711 PCM 8 kHz
Embedded Analytics Yes
Supported Apps IQaccess, IQrecorder, IQevent
System Integration ONVIF, PSIA, IQfinder, IQmanager, IQsentry, DTS (Direct-to-Storage)
Network
Supported Protocols TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, CIFS,SNMP, UDP multicast, FTP, SMTP, Telnet
Password Protection Secure Multi-level
Input/Output
Input Power Power over Ethernet 802.3af Class 3, 24 VAC, 12-24 VDC
Power Consumption < 8W (typical)
AC 50 Hz/60 Hz selectable
Network Interface RJ45 10Base-T/100Base-TX
I/O Support 1 input, 1 output
Audio I/O Built-in microphone, Mic/Line in, Line out
Storage SDHC slot (card not included)
Miscellaneous
Approvals FCC, CE, UL, cUL
Temperature Range 32 to 104˚F (0 to 40˚C)
Dimensions Front (L x W): 2.305 x 3.039" (77.2 x 58.6 mm)
Side: 6.136" (155.9 mm)
Back: 1.721" (43.7 mm)
Weight 12.45 oz (353 g)
