User manual IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17

Operating instructions and pdf manual for use - IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17 User manual, User manual IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17, IQinVision, IQeye, 7, Series, IQ762NI-V17, 2MP


User manual for IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17

IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17
  • Manufacturer: IQinVision
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your IQinVision
  • Settings and expert assistance
  • Contact IQinVision service
  • Troubleshooting
  • Warranty information
  • Price: 765 USD
We recommend checking out our discussion threads on the IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17, which address similar problems with connecting and setting up Wired IP Cameras IQinVision.



User manual for the IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17

The user manual for the IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

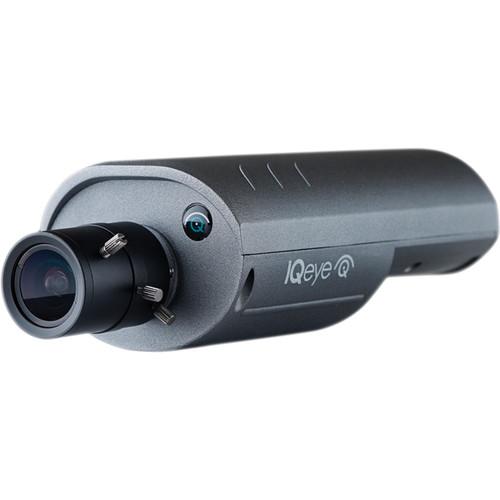

The gray IQeye 7 Series IQ762NI-V17 2MP Day/Night Megapixel Indoor IP Camera from IQinVision offers an affordable blend of high-end features that make it suitable for monitoring areas such as banks, airports, driveways and healthcare centers. Included in the package are the Megapixel Day/Night Camera and a 3.3-10mm wide angle lens along with the necessary cables that you need for installation. With its 1/3" CMOS sensor, the security camera captures clear images at a resolution of up to HD1080p. In addition, this camera's 3.3-10mm wide angle lens with a 98° wide and 35° tele oscillatory ventilation ensures coverage of a wider surveillance area.
If you own a IQinVision wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17:
Specifications
    Video
    Sensor 1/3" CMOS
    Compression H.264: Main profile
    MJPEG: User configurable quality settings for JPEG compression
    Shutter Speed Auto / Programmable / Fixed
    Image Settings Saturation, Contrast, Brightness, Sharpness, Lightgrabber II
    Exposure User configurable
    White Balance Auto/Programmable
    Backlight Compensation Auto
    IR Range 800 to 940 nm
    Maximum Resolution HD1080p - 1920 x 1080
    Frame Rate 30 fps
    Minimum Illumination Color: 0.2 lux, B/W: lesser than 0.05 lux
    Lens Mount CS
    Lens 1/2.5" format 3.3-10 mm wide angle lens
    Maximum HFOV Telephoto: 35°; Wide: 98°
    Aperture F1.4
    Iris Operation Manual
    Day/Night Yes
    Features
    Motion Detection User configurable windows
    Image Settings Image Crop: User configurable windows
    Access Control Access Hours: User configurable
    Recording Time lapse & event based recording: User configurable
    Rotate 180°, horizontal, vertical
    Digital Flip 180°, horizontal, vertical
    Analog Video Continuous NTSC/PAL
    Audio Support 2-way G.711 PCM 8 kHz
    Embedded Analytics Yes
    Supported Apps IQaccess, IQrecorder, IQevent
    System Integration ONVIF, PSIA, IQfinder, IQmanager, IQsentry, DTS (Direct-to-Storage)
    Network
    Supported Protocols TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, CIFS,SNMP, UDP multicast, FTP, SMTP, Telnet
    Password Protection Secure Multi-level
    Input/Output
    Input Power Power over Ethernet 802.3af Class 3, 24 VAC, 12-24 VDC
    Power Consumption < 8W (typical)
    AC 50 Hz/60 Hz selectable
    Network Interface RJ45 10Base-T/100Base-TX
    I/O Support 1 input, 1 output
    Audio I/O Built-in microphone, Mic/Line in, Line out
    Storage SDHC slot (card not included)
    Miscellaneous
    Approvals FCC, CE, UL, cUL
    Temperature Range 32 to 104˚F (0 to 40˚C)
    Dimensions Front (L x W): 2.305 x 3.039" (77.2 x 58.6 mm)
    Side: 6.136" (155.9 mm)
    Back: 1.721" (43.7 mm)
    Weight 12.45 oz (353 g)
    The user manual for the IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other IQinVision users keep a unique electronic library for IQinVision wired ip camerass, where you can use our link to download the user manual for the IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17.

    The user manual lists all of the functions of the IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from IQinVision service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the IQinVision IQeye 7 Series IQ762NI-V17 2MP Day/Night IQ762NI-V17. User manuals are also available on the IQinVision website under Surveillance - Surveillance Video - Wired IP Cameras.
