User manual for the IQinVision IQeye 7 Series IQ763WI-NL 3.1MP Day/Night IQ763WI-NL

The user manual for the IQinVision IQeye 7 Series IQ763WI-NL 3.1MP Day/Night IQ763WI-NL provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

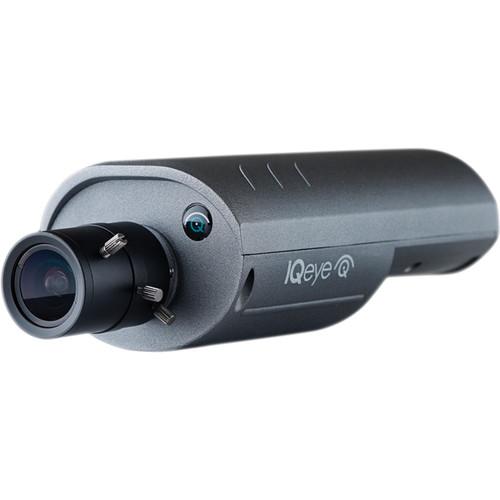

The gray IQeye 7 Series IQ763WI-NL 3.1MP Day/Night Megapixel Indoor IP Camera from IQinVision offers an affordable blend of high-end features that make it suitable for monitoring areas such as banks, airports, driveways and healthcare centers. Included in the package are the Megapixel Day/Night Camera along with the necessary cables that you need for installation. With its 1/3" CMOS sensor, the security camera captures clear images at a resolution of up to 3.1MP.
If you own a IQinVision wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the IQinVision IQeye 7 Series IQ763WI-NL 3.1MP Day/Night IQ763WI-NL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the IQinVision IQeye 7 Series IQ763WI-NL 3.1MP Day/Night IQ763WI-NL:
Video
Sensor 1/3" CMOS
Compression H.264: Main profile
MJPEG: User configurable quality settings for JPEG compression
Shutter Speed Auto / Programmable / Fixed
Image Settings Saturation, Contrast, Brightness, Sharpness, Lightgrabber II
Exposure User configurable
White Balance Auto/Programmable
Backlight Compensation Auto
IR Range 800 to 940 nm
Maximum Resolution 3.1 MP: 2048 x 1536
Frame Rate 16 fps
Lens NA
Minimum Illumination Color: 0.3 lux, B/W: lesser than 0.05 lux
Lens Mount CS
Maximum HFOV NA
Iris Operation NA
Day/Night Yes
Features
Motion Detection User configurable windows
Image Settings Image Crop: User configurable windows
Access Control Access Hours : User configurable
Recording Time lapse & event based recording: User configurable
Rotate 180°, horizontal, vertical
Digital Flip 180°, horizontal, vertical
Analog Video Continuous NTSC/PAL
Audio Support 2-way G.711 PCM 8 kHz
Embedded Analytics Yes
Supported Apps IQaccess, IQrecorder, IQevent
System Integration ONVIF, PSIA, IQfinder, IQmanager, IQsentry, DTS (Direct-to-Storage)
Network
Supported Protocols TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, CIFS,SNMP, UDP multicast, FTP, SMTP, Telnet
Password Protection Secure Multi-level
Input/Output
Input Power Power over Ethernet 802.3af Class 3, 24 VAC, 12-24 VDC
Power Consumption < 8W (typical)
AC 50 Hz/60 Hz selectable
Network Interface RJ45 10Base-T/100Base-TX
I/O Support 1 input, 1 output
Audio I/O Built-in microphone, Mic/Line in, Line out
Storage SDHC slot (card not included)
Miscellaneous
Approvals FCC, CE, UL, cUL
Temperature Range 32 to 104˚F (0 to 40˚C)
Dimensions Front (L x W): 2.305 x 3.039" (77.2 x 58.6 mm)
Side: 6.136" (155.9 mm)
Back: 1.721" (43.7 mm)
Weight 12.45 oz (353 g)
The user manual for the IQinVision IQeye 7 Series IQ763WI-NL 3.1MP Day/Night IQ763WI-NL can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other IQinVision users keep a unique electronic library for IQinVision wired ip camerass, where you can use our link to download the user manual for the IQinVision IQeye 7 Series IQ763WI-NL 3.1MP Day/Night IQ763WI-NL.

The user manual lists all of the functions of the IQinVision IQeye 7 Series IQ763WI-NL 3.1MP Day/Night IQ763WI-NL, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from IQinVision service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the IQinVision IQeye 7 Series IQ763WI-NL 3.1MP Day/Night IQ763WI-NL. User manuals are also available on the IQinVision website under Surveillance - Surveillance Video - Wired IP Cameras.
