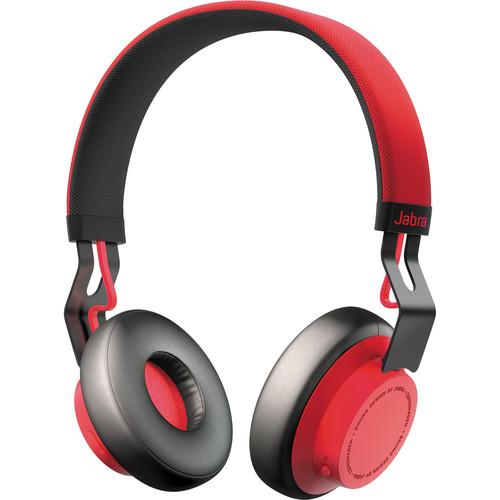

User manual Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02

Operating instructions and pdf manual for use - Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02 User manual, User manual Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02, Jabra, Move, Wireless, Bluetooth, Headphones, Re


User manual for Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02
  • Manufacturer: Jabra
  • Basic description and contents of package
  • Product classification: Mobile - Headphones - Bluetooth Headphones
  • Safety instructions
  • Startup and operation of the bluetooth headphones
  • Tips for setting up your Jabra
  • Settings and expert assistance
  • Contact Jabra service
  • Troubleshooting
  • Warranty information
Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02 Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02 Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02
Click to enlarge image

We recommend checking out our discussion threads on the Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02, which address similar problems with connecting and setting up Bluetooth Headphones Jabra.



User manual for the Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02

The user manual for the Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02 provides necessary instructions for the proper use of the product Mobile - Headphones - Bluetooth Headphones.

The red version of the Jabra Move Wireless Bluetooth Headphones combine the convenience of Bluetooth 4.0 streaming with AVRCP support from your compatible mobile device, with direct headphone controls for media and call management, with an ergonomic Scandinavian over-the-ear industrial design. The headphones can manage multiple calls at the same time, as well as pair with up to 8 devices at a range of 33 feet, and connect to up to two devices simultaneously using its Multiuse feature.

They include a built-in rechargeable battery that provides up to eight hours of talk time and up to twelve days of standby time. They utilize 40mm dynamic drivers with a sensitivity of 94 dB SPL to deliver a frequency response of 20 to 20,000 Hz. The headphones come with a micro-USB charging cable as well as a 3.5mm audio cable for passive wired operation when the battery is out of charge.
If you own a Jabra bluetooth headphones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02Download user manual for Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02
(PDF file, 2.82 MB)
Additional parameters of the Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02:
Specifications
    Bluetooth Bluetooth version 4.0
    Bluetooth Profiles Headset Profile v1.2 , Hands-free Profile v1.6, A2DP v1.2, AVRCP v1.4
    Modes EDR (2EV3, 2EV5), SCO (HV1, HV2, HV3), eSCO (EV3, EV4, EV5), sniff mode, secure pairing mode
    Operating Range Up to 33' (10 m)
    Pairing Up to 8, connected to 2 at the same time using multiuse mode
    Talk Time Up to 8 hours
    Standby Time Up to 12 days
    Charging Time Approximately 2 hours (dedicated charger)
    Wearing Style On ear
    Speaker Size 40 mm dynamic speaker
    Sensitivity 94 dB SPL with 60 mV at 1 kHz
    Impedance 29 Ohms ±15%
    Maximum Input Power 80 mW
    Frequency Response 20 to 20,000 Hz
    Microphone
    Microphone Type 4 mm omni-directional microphone
    Frequency Range 100 to 8,000 Hz
    Sensitivity SLR = 8 dB ± 2 dB TIA810/TIA920
    General
    Operating Temperature 14 to 140°F (-10 to 60°C)
    Storage Temperature -4 to 185°F (-20 to 85°C)
    AC Power Adapter N/A
    Charging 5 PIN micro-USB / B Type 0.32 x 0.23 x 0.12" in (8.03 x 5.8 x 3.04 mm)
    Materials Silicon, PC, PU, ABS, TPE, Stainless Steel
    PIN Password 0000
    Cable Length 3.5 mm Audio Cable: 47.24" (120 cm)
    USB Charging Cable: 39.37" (100 cm)
    Dimensions (H x W x D) 6.77 x 5.75 x 2.32" (172.0 x 146.1 x 59.0 mm)
    Weight 5.29 oz (150.00 g)
    Packaging Info
    Package Weight 1.05 lb
    Box Dimensions (LxWxH) 7.6 x 6.4 x 3.2"
    The user manual for the Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02 can be downloaded in .pdf format if it did not come with your new bluetooth headphones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Jabra users keep a unique electronic library for Jabra bluetooth headphoness, where you can use our link to download the user manual for the Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02.

    The user manual lists all of the functions of the Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02, all the basic and advanced features and tells you how to use the bluetooth headphones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Jabra service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Jabra Move Wireless Bluetooth Headphones (Red) 100-96300002-02. User manuals are also available on the Jabra website under Mobile - Headphones - Bluetooth Headphones.
