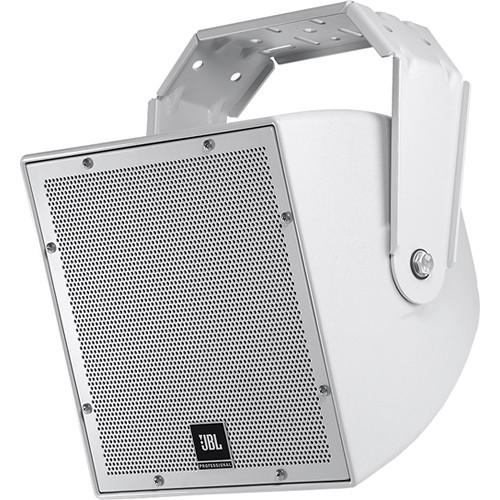

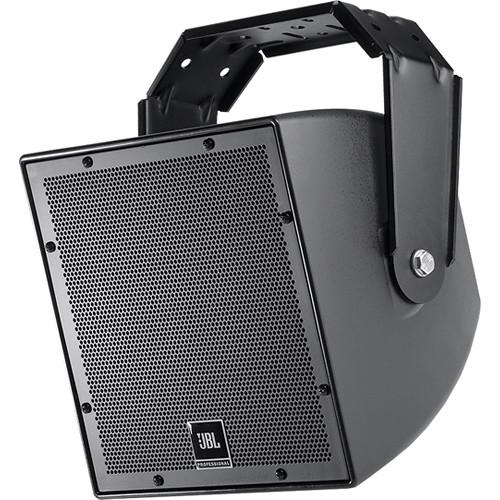

The gray AWC82 All-Weather 2-Way Coaxial Loudspeaker with 8" LF from JBL is a weather-resistant, full-range loudspeaker system ideal for speech and music-fill in large areas. The speaker is comprised of a high-power coaxial 8" low frequency driver and a 1" high frequency compression driver and offers a consistent 120° broadband pattern control. The co-axial design utilizes a tapered pole-piece design and transitions to the cone ofthe low frequency driver as a large diameter pattern control horn for the high frequencies, eliminating high-frequency beaming and extending pattern control to the lowest possible frequencies. The low frequency cone is kevlar-reinforced and features a well-damped surround for smooth frequency response, a high temperature voice coil, and a reduced distortion design through saturated-gap magnet geometry. The high frequency compression driver has a high temperature polymer diaphragm and fluid-cooling capabilities for high output levels with low distortion. The system is equipped with a 200W 70V/100V multi-tap transformer with connection made through an outdoor-rated terminal in a recessed terminal cup.

The paintable enclosure is constructed of ABS and fiberglass and is braced to maximize low-frequency performance. The corrosion-resistant, zinc-rich, powder-coated steel grille is backed with open cell foam and high thread-count mesh, providing protection in harsh environments. The system is rated IP-56, per IEC529, when installed at a minimum 5° down-tilt.
If you own a JBL install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL AWC82 All-Weather 2-Way Coaxial Loudspeaker AWC82 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL AWC82 All-Weather 2-Way Coaxial Loudspeaker AWC82:
Specifications
    Driver Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 2" (50 mm) voice coil
    High Frequency Driver: 1" (25 mm) diaphragm and voice coil diameter
    Crossover 1.8 kHz
    Frequency Range 80 Hz - 20 kHz
    Frequency Response ± 3dB 100 Hz - 20 kHz
    Coverage Pattern 120° x 120°
    Directivity Factor 8.1 (1 k - 16 kHz)
    Directivity Index 8.4 dB (1 k - 16 kHz)
    Impedance 8 ohms
    Long-Term System Power Rating 250 W, 2 hours
    200 W, 100 hours
    Sensitivity 94 dB (average 100 Hz - 20 kHz)
    Maximum Sound Pressure Level (SPL) 118 dB
    Transformer Taps 70 V: 200 W, 100 W, 50 W, 25 W
    100 V: 200 W, 100 W, 50 W
    Connectors Barrier strip terminals
    Enclosure Material ABS with glass
    Dimensions (HxWxD) Cabinet: 11.8 x 11.8 x 12.0" / 300.0 x 300.0 x 305.0 mm
    Depth with gland nut: 13.0" / 331.0 mm
    Including bracket extending to back: 14.2" / 359.0 mm
    Weight 21.6 lb / 9.8 kg With U-bracket: 25.6 lb / 11.6 kg
    Packaging Info
    Package Weight 29.76 lb
    Box Dimensions (LxWxH) 19.49 x 16.54 x 15.28"
