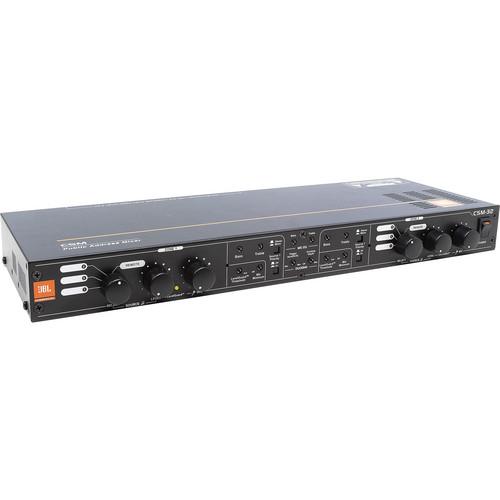

The JBL CSM-32 3 x 2 Stereo Public Address Mixer is a digital commercial mixer for conferencing, retail, and hospitality applications. The mixer features three stereo music inputs with bass and treble equalizers and one line input for connecting the mixer to a building's alarm system. The mixer also features one microphone input with phantom power, gain, and a ducker that can lower the volume of the music when making announcements.
The unit features two stereo outputs with zone equalizers, active crossovers, and separate subwoofer outs. An additional music-only mono output is provided for telephone music-on-hold systems. Designed with a simple analog style control panel, a knob switches between audio from source 1, audio from source 2, and remote control of the mixer. The unit does not require a computer to operate. An included security plate can be installed over the front panel to prevent changes to the unit's controls once configured.
The mixer works with CSR remote controllers, allowing you to use a remote to select the source and adjust the volume of each zone. Additional output zones may be added to the system by connecting multiple CSM mixers together using a Cat5 cable plugged into the unit's RJ45 link ports. With the above features, the mixer provides flexible options for different commercial sound applications.
If you own a JBL install sound mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the JBL CSM-32 3 x 2 Stereo Public Address Mixer CSM-32 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL CSM-32 3 x 2 Stereo Public Address Mixer CSM-32:
1 x Balanced, 1/4" (5.08 mm) Euroblock connector Input impedance: 10 kΩ Maximum input: +20 dBu Frequency response: 20 to 20,000 Hz
Mute
1 x 2-pin 1/4" (5.08 mm) Euroblock connector Connecting the pins mutes all source inputs, does not mute mic input.
Paging
1 x 2-pin 1/4" (5.08 mm) Euroblock connector Connecting zone pins to ground assigns page to that respective zone
Link
Source: 1 x RJ45 port requires CAT3 cable or higher with maximum length 7.9' (2.4 m) Main: 1 x RJ45 port requires CAT3 cable or higher with maximum length 7.9' (2.4 m)
