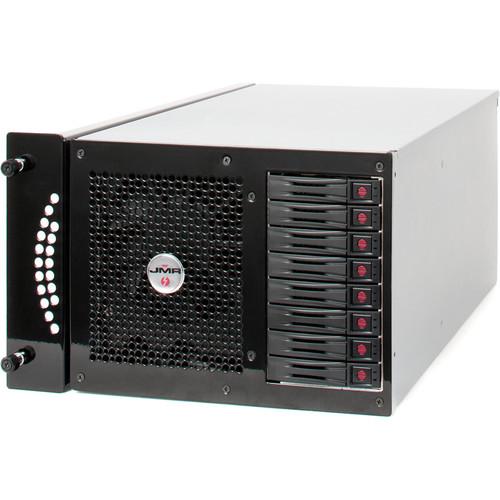

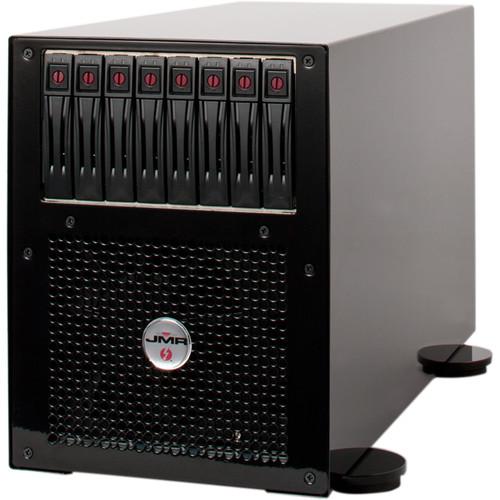

The 4 RU rackmount Lightning XQ PCIe to Thunderbolt 2 Rackmount 8-Bay RAID Enclosure from JMR Electronics is equipped with four Thunderbolt 2 ports, four PCIe slots, eight SAS/SATA 2.5" drive bays that are connected to the internal 6 Gb ATTO SAS hardware RAID controller, and a 4 RU rackmount form factor. If the 2.5" drive bays are populated with SSDs, it is possible to achieve data transfer speeds of up to 1,200 MB/s. The four Thunderbolt 2 ports also allow for the daisy chaining of other compatible peripherals.

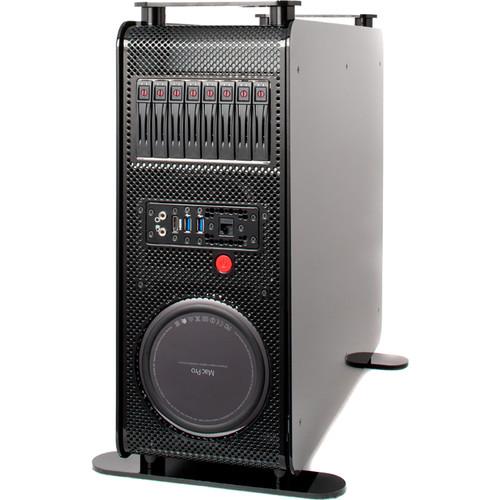

While this enclosure uses four Thunderbolt 2 ports to connect to your host system, each of which provides bi-directional transfer speeds of up to 20 Gb/s, it also features four full-height and full-length PCIe slots, with one occupied by the RAID controller, for a total of three available PCIe slots. Each slot operates mechanically at x16 and electrically at x4. The advantage of this enclosure having PCIe slots is that it will allow PCIe cards to be utilized with systems that do not have any available PCIe slots, such as the 2013 Mac Pro. Common applications of PCIe expansion cards include SAS/SATA and Fibre channel host bus adapters and RAID controllers, video capture cards, audio interface cards, 10GbE network cards, GPUs, RED Rocket-X cards, and more.
The four PCIe slots are also powered using two independent Thunderbolt 2 bridge circuits. One Thunderbolt 2 bridge drives two slots, while the other powers the other two. When connecting to a Mac Pro, two of the three available Thunderbolt bus connections are used. This design allows all of the available 20 Gb/s bandwidth available from each of the Thunderbolt 2 ports to be used to help enhance operating bandwidth for demanding applications.

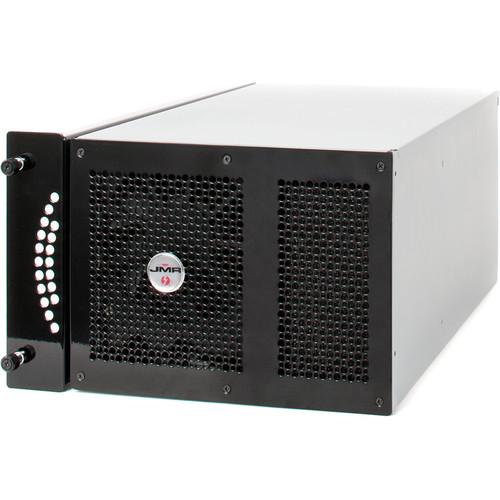

The JMR Lightning PCIe to Thunderbolt 2 8-Bay RAID Enclosure is powered using an internal 460W power supply. It utilizes a 4 RU rackmount form factor, turning it into a sled device that docks in a provided bracket that installs into rack equipment, using only the front vertical rail, and then slides into the docking bracket. Included with this RAID enclosure is a power cord and a docking bracket.
If you own a JMR Electronics hard drive enclosures & docks and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the JMR Electronics Lightning XQ PCIe to Thunderbolt LTNG-XQ-8-RM-ND in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JMR Electronics Lightning XQ PCIe to Thunderbolt LTNG-XQ-8-RM-ND:
Specifications
Drive Bays
8 x 2.5" SAS/SATA Drive Bays
Ports
4 x Thunderbolt 2 Ports (20 Gb/s)
PCIe Expansion Slots
4 x PCIe Expansion Slots (x16 mechanical / x4 electrical, full-height and full-length)
RAID Controller
6 Gb/s SAS ATTO SAS RAID Controller
Data Transfer Rates
Up to 1,200 MB/s
Cooling
Internal Forced Air Cooling
Power
460 W Internal Power Supply
Form Factor
Rackmount Form Factor
Dimensions
7.0 x 11.0 x 16.0" / 17.8 x 27.9 x 40.6 cm
Weight
22.0 lb / 10.0 kg (not including installed PCIe peripheral cards or disk drives)
