User manual Joemeek threeQ - Microphone/Instrument Preamp THREEQ

Operating instructions and pdf manual for use - Joemeek threeQ - Microphone/Instrument Preamp THREEQ User manual, User manual Joemeek threeQ - Microphone/Instrument Preamp THREEQ, Joemeek, threeQ, Microphone/Instrument, Preamp, THREEQ,


User manual for Joemeek threeQ - Microphone/Instrument Preamp THREEQ

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Joemeek threeQ - Microphone/Instrument Preamp THREEQ
  • Manufacturer: Joemeek
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Channel Strips
  • Safety instructions
  • Startup and operation of the channel strips
  • Tips for setting up your Joemeek
  • Settings and expert assistance
  • Contact Joemeek service
  • Troubleshooting
  • Warranty information
  • Price: 180 USD
We recommend checking out our discussion threads on the Joemeek threeQ - Microphone/Instrument Preamp THREEQ, which address similar problems with connecting and setting up Channel Strips Joemeek.



User manual for the Joemeek threeQ - Microphone/Instrument Preamp THREEQ

The user manual for the Joemeek threeQ - Microphone/Instrument Preamp THREEQ provides necessary instructions for the proper use of the product Pro Audio - Recording - Channel Strips.

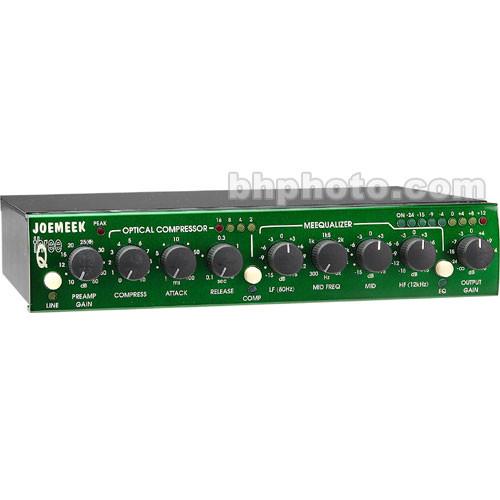

The Joemeek threeQ is a single channel microphone/instrument preamp with optical compression and EQ. It is basically like having a channel of a professional recording console in a small box. It takes a microphone or instrument, amplifies it, compresses and equalizes it, ready to be recorded.
If you own a Joemeek channel strips and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Joemeek threeQ - Microphone/Instrument Preamp THREEQ in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Joemeek threeQ - Microphone/Instrument Preamp THREEQ:
Number of Channels Single
Inputs 1 x XLR Microphone
1 x 1/4" TRS phone Line
1 x 1/4" TRS phone Mix (post pre, compressor, EQ Input)
1 x 1/4" TRS phone Insert
Outputs 2 x 1/4" TRS phone
Frequency Response 10Hz to 70kHz (-3dB)
Noise EIN: -128.5dBu (unweighted)
Preamp
Gain Range 0dB to 60dB
Maximum Output +19.5dBu
Input Impedance Mic: 1.2kohm
Line: 20kohm
Phantom Power +48V
Compressor
Threshold Range -6dBu to +20dBu (variable)
Ratio 5:1 (typical)
Attack Time 1 mS to 100 mS (adaptive)
Release Time 0.1 S to 3 S (adaptive)
Slope Not specified by manufacturer
Sidechain No
Equalizer
Filter Type Shelf and single band semi-parametric
Frequency Bands Low Frequency: 80Hz
Mid Frequency: 300Hz to 5kHz
High Frequency: 12kHz
Bandwidth Not specified by manufacturer
Range (Boost/Cut) +/-15dB
Light Indication
Threshold Range Not applicable
Ratio Not applicable
Attack Time Not applicable
De-Esser
Threshold Range Not applicable
Frequency Range Not applicable
Gate
Gate Threshold Not applicable
Gate Rate Not applicable
Physical
Dimensions (WxDxH) 8 11/16" x 7" x 1 3/4"
Weight 2 1/4 lbs
Specialties Mix input allows for connecting a second audio source to the unit post processing. Can be used in the studio or in a live situation where inputs are at a premium
Packaging Info
Package Weight 4.3 lb
Box Dimensions (LxWxH) 14.7 x 8.5 x 3.5"
The user manual for the Joemeek threeQ - Microphone/Instrument Preamp THREEQ can be downloaded in .pdf format if it did not come with your new channel strips, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Joemeek users keep a unique electronic library for Joemeek channel stripss, where you can use our link to download the user manual for the Joemeek threeQ - Microphone/Instrument Preamp THREEQ.

The user manual lists all of the functions of the Joemeek threeQ - Microphone/Instrument Preamp THREEQ, all the basic and advanced features and tells you how to use the channel strips. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Joemeek service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Joemeek threeQ - Microphone/Instrument Preamp THREEQ. User manuals are also available on the Joemeek website under Pro Audio - Recording - Channel Strips.
