User manual for the Jony MotorHead Micro Complete System MOTORHEAD MICRO

The user manual for the Jony MotorHead Micro Complete System MOTORHEAD MICRO provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Pan/Tilt Heads for Cranes.

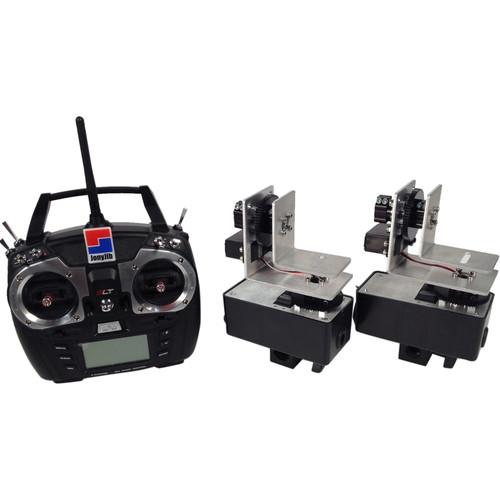

Wirelessly pan and tilt two GoPro or other action cameras with the MotorHead Micro, from JonyJib. This is the complete MotorHead Micro system, consisting of a dual joystick transmitter, two pan/tilt heads, and two receivers. Control both heads at the same time from a distance of 300 ft line-of-sight. Achieve complete 360° pan and tilt motion with each head. The system operates over the 2.4 GHz frequency and employs the SLT protocol that resists stray signals for interference-free performance.

You can tailor the sensitivity of the transmitter joysticks, direction of the motors, and other programmable attributes via the transmitter's control buttons and LCD screen. The transmitter will operate from 35 to 60 hours on simply four AA batteries (one set included).

The heads feature 5/8" baby-pin receivers compatible with all standard grip equipment. They can be mounted overslung, underslung, or on their sides, and you can also position the camera for dutch roll to achieve different effects. For live production, just run your HDMI and power cables through the rubber grommet in the case and out through the axles. The heads each run on a single 9V battery (two included) and work from 30 to 240 hours dependent on the activity.
If you own a Jony pan/tilt heads for cranes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Jony MotorHead Micro Complete System MOTORHEAD MICRO in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Jony MotorHead Micro Complete System MOTORHEAD MICRO:
Specifications
    Transmitter
    Control Via dual joysticks
    Frequencies 2.403 - 2.480 GHz
    Protocol SLT (Secure Link Technology)
    Modulation FHSS spread spectrum
    Channels 6
    Programming Via LCD
    Input Power 3.4 - 7 VDC
    Batteries Accepts 4x AA (included)
    Dimensions 7.25 x 7.75 x 3" (18.4 x 19.7 x 7.6 cm)
    Weight 1.2 lb (0.54 kg)
    Head
    Material ABS plastic enclosure; 0.125" brushed aluminum
    Color Anodized black
    Camera Platform 2.5" width (6.4 cm)
    1.75" depth (4.4 cm)
    Slot Pattern Single 0.25 x 1.25" (0.6 x 3.2 cm)
    Lens Clearance Radius 2" (5 cm) (360° tilt)
    Max Camera Length 2" (5 cm) (360° tilt)
    Axle Diameter 0.5" (1.3 cm) (for cables)
    Motor Voltage 5 VDC
    Motor Connection 3 pin
    Battery Accepts 1x 9 V (two included)
    Dimension 5.5 x 7.5 x 2.5" (14 x 19 x 6.4 cm)
    Weight 1.4 lb (0.63 kg) per head
    Receivers
    Frequencies 2.403 - 2.480 GHz
    Protocol SLT (Secure Link Technology)
    Modulation FHSS spread spectrum
    Channels 6
    Range 300 ft (91 m) line-of-sight (max)
