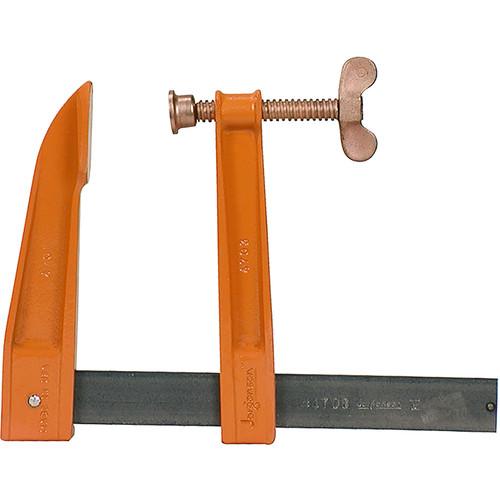

This Deep-Reach Jorgensen Sliding-Head Steel Bar Clamp with 48" opening features a 'butterfly'-style handle that's copper-plated to resist splatter from welding. It is a heavy-duty steel bar-clamp with sliding-head design with the sliding head being threaded to accommodate the screw. All adjustments are made in the movable sliding head, making this a fast-acting clamp. The sliding head holds securely at any point along the bar.
|
If you own a Jorgensen woodworking clamps and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Jorgensen Deep-Reach Sliding-Head Steel Bar Clamp 4748-CP in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Jorgensen Deep-Reach Sliding-Head Steel Bar Clamp 4748-CP:
| Maximum Opening | 48" / 122 cm | | Dimensions | Reach - 7" / 18 cm from edge of bar to center-line of screw
Bar - 1-1/2 X 3/8" / 3.8 x 0.95 cm
Screw diameter - 5/8" / 1.6 cm
Swivel diameter - 1-1/4" / 3.8 (#1046) | | Normal Load Limit | 1200 lb / 544 kg
Tensile strength: 100000 psi | |
