User manual for the juicedLink RM222 Riggy-Micro Dual-XLR Preamplifier RM222

The user manual for the juicedLink RM222 Riggy-Micro Dual-XLR Preamplifier RM222 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Camcorder XLR Adapters.

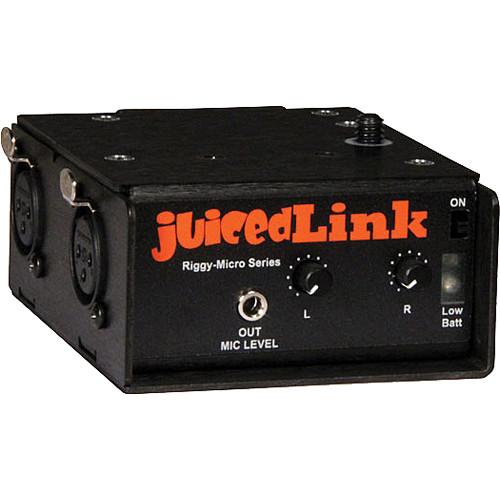

The RM222 Riggy-Micro Dual-XLR Preamplifier with Phantom Power by juicedLink is designed for cameras which already have audio meters, manual gain control, and a headphone output. The RM222 features efficient operation, small size, and a lightweight design for mounting flexibility. It can even be mounted in the hot-shoe on top of your camera.

The RM222 features 2 locking XLR inputs with low-noise microphone preamplifiers. Each channel includes a Mic/Line level switch, a Hi/Lo gain switch, and a Phantom power switch. The onboard Phantom power voltage is selectable between 48V/12V. The inputs can also be summed mono, copying each input to both sides. The right channel can be completely powered down to conserve battery power if not needed.

When engaged, the Audio Output Bracketing feature of the RM222 ensures that your audio inputs won't clip or distort. By placing the RM222's performance in mono and enabling the 16dB pad on the right channel, you end up with two signals with identical content, yet the right is recorded 16dB lower. This way if a sudden loud noise or a boomy portion of audio is recorded, you'll have a backup track with headroom in case the 0dB output clips.

The RM222 Riggy-Micro uses a 9V battery. High capacity lithium-polymer rechargeable batteries can be used as well as alkaline. The low-battery indicator can be switched between alkaline or lithium-polymer threshold, so you can use either chemistry without leaving unnecessary capacity in the battery.
If you own a juicedLink camcorder xlr adapters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the juicedLink RM222 Riggy-Micro Dual-XLR Preamplifier RM222 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the juicedLink RM222 Riggy-Micro Dual-XLR Preamplifier RM222:
Specifications
    Input Connectors 2 x XLR balanced
    Phantom Power 12V or 48V, switchable
    Gain Up to 30 dB maximum available gain
    Switches 2 x Mic/Line level (1 per channel)
    2 x Hi/Lo gain (1 per channel)
    1 x Phantom Off/12V/48V (global)
    1 x L Phantom On/Off
    1 x R Phantom On/Off
    1 x Stereo/Mono
    1 x R Channel Power Off/On
    1 x R Channel -16 dB Pad
    1 x ENC Ground Norm/Lift
    1 x LiPoly/Alkaline
    Output Connector 1 x 1/8" (3.5 mm) TRS stereo
    Frequency Response 20 Hz to 20 kHz, +0 /-1.5 dB
    Battery Life (approx.)
    • 16 hrs (2 XLR inputs active, fresh Alkaline battery)
    • 40 hrs (1 XLR input active, fresh Alkaline battery)
    • Battery life with Phantom is non-linear, depends on microphones
    Dimensions (W x D x H) 3.5 x 3.5 x 1.5" (76 x 89 x 38 mm)
    Weight 8 oz (227 g)
    Packaging Info
    Package Weight 0.65 lb
    Box Dimensions (LxWxH) 4.7 x 4.3 x 2.3"
    The user manual for the juicedLink RM222 Riggy-Micro Dual-XLR Preamplifier RM222 can be downloaded in .pdf format if it did not come with your new camcorder xlr adapters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other juicedLink users keep a unique electronic library for juicedLink camcorder xlr adapterss, where you can use our link to download the user manual for the juicedLink RM222 Riggy-Micro Dual-XLR Preamplifier RM222.

    The user manual lists all of the functions of the juicedLink RM222 Riggy-Micro Dual-XLR Preamplifier RM222, all the basic and advanced features and tells you how to use the camcorder xlr adapters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from juicedLink service.
