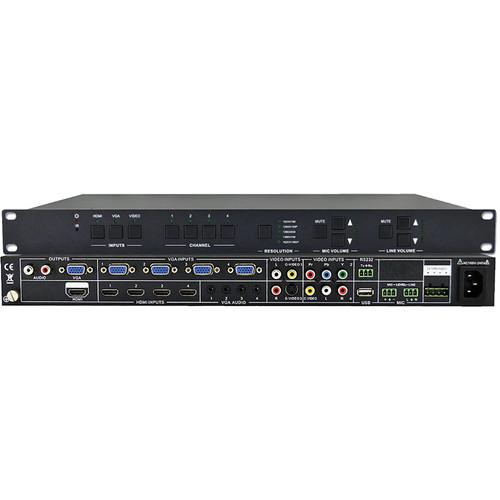

The KanexPro 12-Input Classroom Presentation Switcher & Scaler with VGA & HDMI Out is an all-in-one switcher/scaler designed with twelve inputs. The inputs consist of four HDMI, four VGA, two composite video, one S-Video, and one component video. Switch, scale, and extend the signal to two high-resolution displays using the HDMI and VGA outputs. The switcher provides stereo audio inputs for the VGA, composite, and S-Video inputs, and supports embedded audio from the HDMI inputs. Audio is embedded in the HDMI video output, or available via L/R stereo connectors with the VGA output (for non-HDCP encrypted content).

Converging IT with AV applications, the scaler integrates easily in various analog to digital applications such as when used in lecture halls, conference room airports, hotel lobbies, restaurants, pubs, healthcare facilities and control centers.

Note: This device does not include a network LAN port. Also, the HDMI output on this scaler will not support surround sound or Dolby Digital 5.1.
If you own a KanexPro routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the KanexPro 12-Input Classroom Presentation Switcher & HDSC12 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the KanexPro 12-Input Classroom Presentation Switcher & HDSC12:
Video Inputs 4 x HDMI
4 x VGA
1 x Component
2 x Composite
1 x S-Video
Video Outputs 1 x VGA
1 x HDMI
Input Signals HDMI, RGBHV, RGBs, RGsB, RsBsGs, NTSC 3.58, NTSC 4.42,PAL, SECAM
Output Signal HDMI, VGA
Audio Inputs 4 x stereo audio, 3.5 mm jack (one for each VGA input)
2 x L/R stereo audio, RCA female connectors (for composite and S-Video inputs)
HDMI audio (embedded digital audio) 2 x Microphone input, captive screw connector; >10 kΩ (one MIC level, one LINE level)
Audio Output Stereo line audio (RCA connector), 50 Ω
Embedded in HDMI output
2 x 10 W @ 8 Ω
2 x 20 W @ 4 Ω amplifier (captive screw connector)
Resolutions 1920x1080
1360x768
1280x720
1280x800
1024x768
Bandwidth HDMI: 4.95 Gbps(1.65 Gbps per color)
Composite Video / S-Video: 150 MHz
YPbPr: 170 MHz
VGA: 375 MHz
HDCP Management Compliant with High-bandwidth Digital Content Protection(HDCP) with DVI & HDMI standards
USB USB 2.0 port for firmware upgrades
Power Supply 100 to 240 VAC, 50/60 Hz
Dimensions 19.00 x 9.25 x 1.73 (48.30 x 23.50 x 4.40 cm)
Weight 4.62 (2.10 kg)
Packaging Info
Package Weight 7.8 lb
Box Dimensions (LxWxH) 21.417 x 13.622 x 5.118"
The user manual for the KanexPro 12-Input Classroom Presentation Switcher & HDSC12 can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other KanexPro users keep a unique electronic library for KanexPro routers & switcherss, where you can use our link to download the user manual for the KanexPro 12-Input Classroom Presentation Switcher & HDSC12.

The user manual lists all of the functions of the KanexPro 12-Input Classroom Presentation Switcher & HDSC12, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from KanexPro service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the KanexPro 12-Input Classroom Presentation Switcher & HDSC12. User manuals are also available on the KanexPro website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
