User manual for the Konus KonusPro F-30 8-32x56 Riflescope 7298

The user manual for the Konus KonusPro F-30 8-32x56 Riflescope 7298 provides necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.

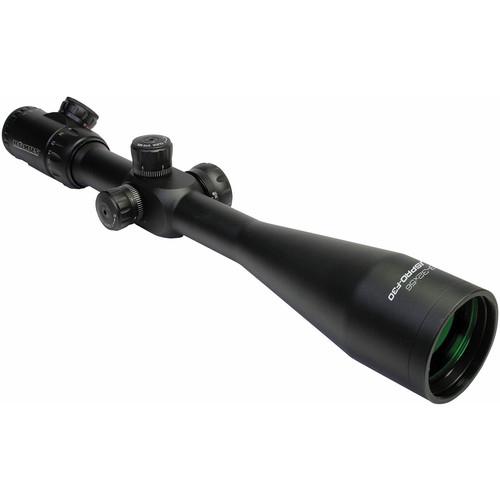

Designed specifically to address the needs of low-light, long range, and precision shooting, the KonusPro F-30 8-32x56 Riflescope from Konus Optical features the largest 56mm objective aperture, wide zooming range, and a red-blue illuminated Modified Mil-Dot Reticle. The optics are fully multicoated to provide maximum possible transmission of light, improve contrast and detail, and reduce glare. To reduce glare from the sun, you can attach to the objective bell the included 4" sunshade. To help you compensate for wind drift and ballistic bullet drop, the scope offers 60 MOA windage and elevation adjustment ranges with 1/10 mil per click increments. Located in the first focal plane, the etched reticle will maintain the exact spacing of the reticle features.

The scope is also equipped with a unique Modified Mil-Dot Reticle with red or blue adjustable illumination for precision target acquisition and a green phosphorescent anti-canting level bubble for ensuring a tilt-free position, critical for long range shooting. The reticle features a thin center cross-hair with major and minor marks. The major marks are spaced 1 mil apart and are 1/5-mil-long. The illuminated center consists of a circle that is a 1/4 mil in diameter and has four thin 1/2-mil-long posts. On the periphery, there are four very wide posts. The illumination is powered by one included CR-2032 battery and has five brightness levels.

The matte black housing is durable, waterproof, and shock-resistant. It features a single-piece 30mm main tube, locking resettable turrets, and a locking zoom eyepiece. To prevent fogging-up of optics on the inside, when you are moving through environments with changing temperatures, the housing is filled with nitrogen gas and sealed. Like all knobs and adjustments on this riflescope, the illumination control knob is knurled for slip-free operation, but it is attached to the eyepiece at a 45° angle for easier and more comfortable reach. Also included are flip-up lens covers and a lens cleaning cloth.
If you own a riflescopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Konus KonusPro F-30 8-32x56 Riflescope 7298 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Konus KonusPro F-30 8-32x56 Riflescope 7298:
Specifications
    Magnification 8-32x
    Objective Lens Diameter 56mm
    Main Tube Diameter 1.18" (30 mm)
    Reticle Etched Modified Mil-Dot
    1st focal plane
    Red or blue illumination
    Field of View 12.1-3.4' @ 100 yd (4-1.1 m @ 100 m)
    Angle of View 2.3-0.6°
    Eye Relief 3.55" (89 mm)
    Exit Pupil Diameter 7-1.7 mm
    Parallax Correction 10 yd to infinity
    Impact Point Correction 1/10 mil
    Maximum Windage/Elevation Adjustment 60 MOA
    Battery 1 x CR-2032 battery
    Length 17.5" (444 mm)
    Weight 31.4 oz (890 g)
