User manual for the Kowa LMVZ164A 1/3" 1.6 to 3.4mm Varifocal Auto LMVZ164A

The user manual for the Kowa LMVZ164A 1/3" 1.6 to 3.4mm Varifocal Auto LMVZ164A provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

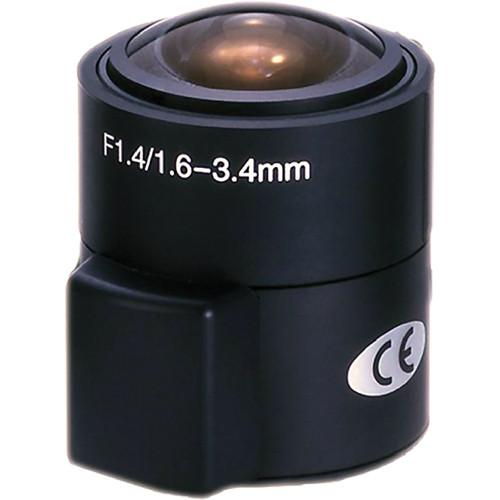

The 3-Cam design is incorporated into Kowa’s LMVZ164A 1/3" 1.6 to 3.4mm Varifocal Auto Iris Lens (DC). This innovative system has solved the problem of de-centering which sometimes occurs in the conventional pole system. Not only is the movement of the lens impaired by de-centering, but the optical performance suffers too. The 3-Cam design also reduces internal reflection. As a result, the image obtained by this design is much sharper than that of the conventional pole system. With the 3-Cam design, the customer can expect high optical performance and a long service life.
If you own a Kowa lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kowa LMVZ164A 1/3" 1.6 to 3.4mm Varifocal Auto LMVZ164A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kowa LMVZ164A 1/3" 1.6 to 3.4mm Varifocal Auto LMVZ164A:
Specifications
    Sensor Size 1/3" for B&W and color camera
    Focal Length f=1.6 to 3.4 mm
    Zoom Ratio 2.1x
    Maximum Diameter (Ratio) F=1.4
    Lens Construction 11 group, 12 elements
    Iris Range F1.4 to 360
    Image Size Ø6, 4.8 x 3.6
    Back Focal Length Wide: 7.06(in air)
    Tele: 11.54 (in air)
    Flange Focal Length 0.49" (12.5 mm)
    Field Angle Diagonal: 180° (wide), 106.1° (tele)
    Horizontal: 180° (wide), 84.3° (tele)
    Vertical: 114.1° (wide), 55.8° (tele)
    Aperture Front: Ø27.8
    Rear: Ø8.6
    Mount CS-mount
    Exit Pupil Position 3.37" (85.53 mm)
    Focus Range 0.66' (0.2 m)
    Coil Driving
    Resistance: 200 Ω (68°F / 20°C)
    Color: Red, black (red + open)
    Damping
    Resistance: 700 Ω (68°F / 20°C)
    Color: Yellow, green (yellow + open)
    Driving Voltage To Open: >4 V
    To Close: <0 V (without closing spring)
    Weight 3.7 oz (105 g)
    Packaging Info
    Package Weight 0.25 lb
    Box Dimensions (LxWxH) 3.4 x 2.4 x 1.9"
