User manual for the Kowa LMZ7527AMPDC 1/2" Zoom Auto-Iris Lens LMZ7527AMPDC

The user manual for the Kowa LMZ7527AMPDC 1/2" Zoom Auto-Iris Lens LMZ7527AMPDC provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

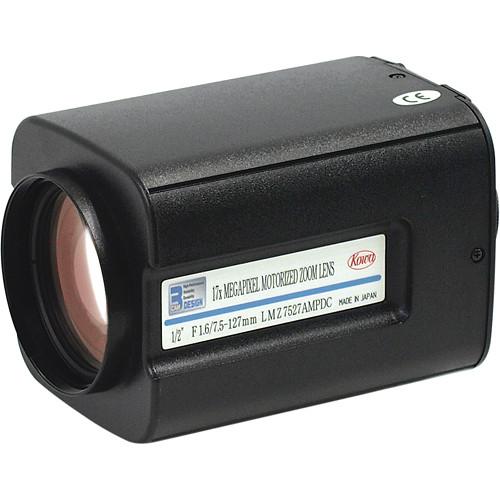

The Kowa LMZ7527AMPDC 1/2” Zoom Auto-Iris Lens with Preset (7.5 to 127mm) is designed for use with cameras up to 3 MP resolution.
If you own a Kowa lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kowa LMZ7527AMPDC 1/2" Zoom Auto-Iris Lens LMZ7527AMPDC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kowa LMZ7527AMPDC 1/2" Zoom Auto-Iris Lens LMZ7527AMPDC:
Specifications
    Sensor Size 1/2"
    Iris Control Auto-Iris (DC)
    Focus Control Motorized
    Focal Length 7.5 to 127 mm
    Zoom 25x
    Iris Range F1.6 to 360
    Image Size Φ8 (6.4 x 4.8)
    Back Focal Length 15.1 mm (in air)
    Flange Focal Length 17.526 mm (in air)
    Focus Range infinity to 4.9' (1.5 m)
    Field Angle Diagonal: 55.8° (wide), 3.6° (tele)
    Horizontal: 45.6° (wide), 2.9° (tele)
    Vertical: 34.7° (wide), 2.2° (tele)
    Horizontal Angle of View 1/4": 6.6 to 0.24°, 1/3": 8.85 to 0.37°, 1/2": 11.8 to 0.5°
    Lens Construction 13 groups, 16 elements
    Mount C
    Aperture Front: Φ50
    Rear: Φ12.7
    Distortion Wide: -0.78%
    Tele: 0.89%
    Coil Drive Coil: Resistor: 190 Ω (68°F / 20°C)
    Color: Red (+) 3 pin
    Black 4 pin
    Brake Coil: Resistor: 1150 Ω (68°F / 20°C)
    Color: Yellow (+) 2 pin
    Green 1 pin
    Voltage Drive Voltage: Open: 4 V
    Close: 0 V (with closing spring)
    Temperature Range 14 to 113°F (-10 to 45°C)
    Dimensions 3.14 x 2.75 x 5.19" (80 x 70 x 132 mm)
    Weight 20.45 oz (580 g)
    Packaging Info
    Package Weight 5.0 lb
