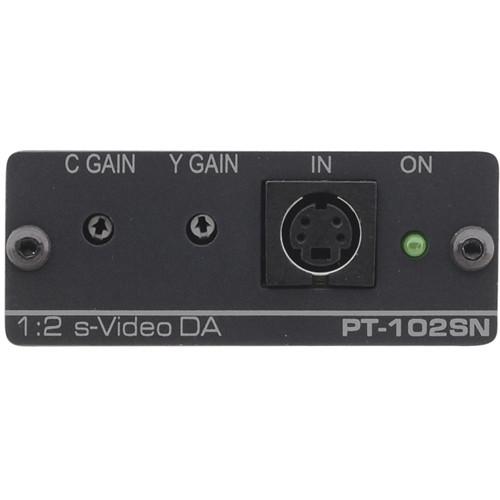

The Kramer PT-102SN 1:2 S-Video Distribution Amplifier provides correct buffering to s-Video (Y/C) video signals, and distributes it to 2 identical outputs. With Y & C Level controls, you can control the output of the amplifier. Being compact (2.45 x 2.04 x 0.96“/6.22 x 5.18 x 2.44 cm), 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adaptor
If you own a Kramer distribution amplifiers (da's) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kramer PT-102SN 1:2 S-Video Distribution Amplifier PT-102SN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Kramer PT-102SN 1:2 S-Video Distribution Amplifier PT-102SNDownload user manual for Kramer PT-102SN 1:2 S-Video Distribution Amplifier PT-102SN
(PDF file, 1.28 MB)
Additional parameters of the Kramer PT-102SN 1:2 S-Video Distribution Amplifier PT-102SN:
Specifications
    Input 1 x S-Video on a 4-pin connector
    Outputs 2 x S-Video on 4-pin connectors
    Output Level 1.3 Vpp
    Bandwidth 150 MHz
    Differential Gain 0.05%
    Differential Phase 0.05°
    K-Factor < 0.05%
    S/N Ratio 76 dB @ 5 MHz
    Controls Gain: luma (Y) -1.9 to +5.1 dB; chroma (C) 0 to +6.8 dB, @ 5 MHz
    Power Consumption AC
    Dimensions (W x D x H) 12 VDC, 25 mA
    Dimensions 2.45 x 2.04 x 0.96" (62.20 x 51.80 x 24.4 mm)
    Weight 0.31 lb (0.14 kg)
    Packaging Info
    Package Weight 0.85 lb
    Box Dimensions (LxWxH) 6.8 x 4.8 x 3.5"
    The user manual for the Kramer PT-102SN 1:2 S-Video Distribution Amplifier PT-102SN can be downloaded in .pdf format if it did not come with your new distribution amplifiers (da's), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kramer users keep a unique electronic library for Kramer distribution amplifiers (da's)s, where you can use our link to download the user manual for the Kramer PT-102SN 1:2 S-Video Distribution Amplifier PT-102SN.
