User manual for the Kramer TP-219HD 2x1Computer Graphics & HDTV Video TP-219HD
The user manual for the Kramer TP-219HD 2x1Computer Graphics & HDTV Video TP-219HD provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.

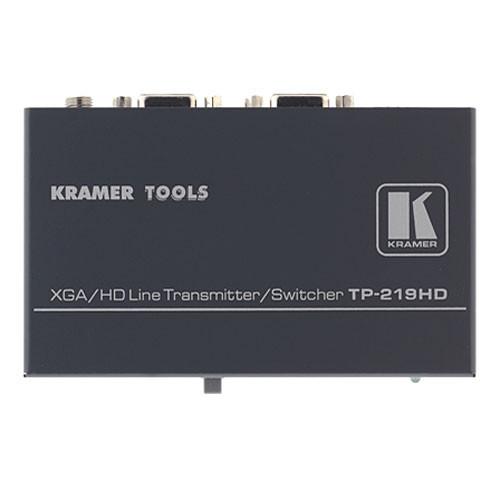

The TP-219HD 2x1Computer Graphics & HDTV Video Switcher over Twisted-Pair Transmitter from Comprehensive/Kramer is the transmitter in a paired transmitter-receiver solution designed for sending computer graphics video and HDTV signals over twisted-pair cabling. This solution is well suited for use in studios, airports, offices, security & military installations, and hospitals, among many other similar settings and uses.
It supports resolutions up to UXGA and 1080p with a system range of 330'. The unit may be used with unshielded twisted-pair cable such as CAT5. Other features include horizontal and vertical sync polarity selection. The unit features Kramer's Power Connect technology, meaning that only one device in the system needs to be connected to an electrical source to power all system units (all units in the system must have Power Connect to use this feature). It also belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit.
If you own a Kramer dvi/vga kvm extenders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Kramer TP-219HD 2x1Computer Graphics & HDTV Video TP-219HD in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kramer TP-219HD 2x1Computer Graphics & HDTV Video TP-219HD:
| Construction || Metal |
| Finish || Black |
| Input || (2) XGA/HD on 15-pin HD F connectors |
| Output || (1) CAT5 out on RJ-45 connector |
| Output Level || 1.5Vpp |
| Resolution || Up to UXGA, up to 1080p |
| Differential Gain || 2.3% |
| Differential Phase || 0.02° |
| K-Factor || 0.1% |
| Signal-to-Noise Ratio || 70dB @5MHz |
| Crosstalk || -45dB |
| Controls || Input selector button |
| Coupling || AC |
| Power || 12V, 300mA, when feeding TP-220HD |
| Dimensions (HxWxD) || 0.95 x 4.76 x 2.83" (2.42 x 12.1 x 7.18cm) |
| Weight || 0.67 lbs (0.3kg) |
| Package Weight || 1.05 lb |
| Box Dimensions (LxWxH) || 9.2 x 4.8 x 3.5" |
The user manual for the Kramer TP-219HD 2x1Computer Graphics & HDTV Video TP-219HD can be downloaded in .pdf
format if it did not come with your new dvi/vga kvm extenders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Kramer users keep a unique electronic library
for Kramer dvi/vga kvm extenderss,
where you can use our link to download the user manual for the Kramer TP-219HD 2x1Computer Graphics & HDTV Video TP-219HD.
The user manual lists all of the functions of the Kramer TP-219HD 2x1Computer Graphics & HDTV Video TP-219HD,
all the basic and advanced features and tells you how to use the dvi/vga kvm extenders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Kramer service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Kramer TP-219HD 2x1Computer Graphics & HDTV Video TP-219HD. User manuals are also
available on the Kramer website under Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.
