User manual Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN

Operating instructions and pdf manual for use - Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN User manual, User manual Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN, Kramer, VM-50AN, 1:5, Audio, Distribution, Amplifier, VM-50AN,


User manual for Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN

Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN
  • Manufacturer: Kramer
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's)
  • Safety instructions
  • Startup and operation of the distribution amplifiers (da's)
  • Tips for setting up your Kramer
  • Settings and expert assistance
  • Contact Kramer service
  • Troubleshooting
  • Warranty information
  • Price: 212 USD
We recommend checking out our discussion threads on the Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN, which address similar problems with connecting and setting up Distribution Amplifiers (DA's) Kramer.



User manual for the Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN

The user manual for the Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's).

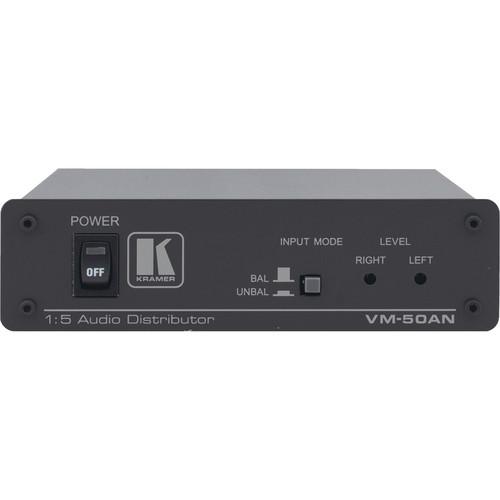

The VM-50AN 1:5 Audio Distribution Amplifier from Kramer is a high-performance distribution amplifier designed to manage balanced and unbalanced stereo audio signals. It takes one balanced or unbalanced stereo input and distributes the signal simultaneously to (10) stereo outputs (5 balanced and 5 unbalanced).

This is an ideal unit for those seeking an economical solution for production, duplication, retail, point-of-sale, security, or CCTV applications. It is also equally well suited for schools, boardrooms, or any A/V system requiring high-quality signal distribution. This unit's small, desktop size makes it easy to manage and two units can even be rack mounted side by side in a 1U space by using the optional RK-50RN adapter.
If you own a Kramer distribution amplifiers (da's) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50ANDownload user manual for Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN
(PDF file, 1.24 MB)
Additional parameters of the Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN:
Input (1) balanced stereo +12dBm 50kΩ on detachable terminal block connector
(1) unbalanced stereo on mini 3.5 mm socket
Output (5) balanced stereo +22dBm 50Ω on detachable terminal block connectors
(5) unbalanced stereo +22dBm 470Ω on mini 3.5 mm socket
Maximum Output Level 28Vpp
Bandwidth 100kHz; 40kHz; Fully Loaded
Signal to Noise Ratio 83.95dB, unweighted
Controls Level (for right and left): 0.4 to 9.5dB
Coupling Input: AC; Output: DC
THD & Noise 0.022% @ 1 kHz, Balanced Output
2nd Harmonic 0.022% @ 1 kHz, Balanced Output
Power Source 12VDC 200mA
Dimensions (WxDxH) 6-1/2 x 4-11/16 x 1-11/16" (16-1/2 x 12 x 4-1/2cm)
Weight 1.3 lbs (0.6kg)
Packaging Info
Package Weight 1.95 lb
Box Dimensions (LxWxH) 13.8 x 8.5 x 2.9"
The user manual for the Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN can be downloaded in .pdf format if it did not come with your new distribution amplifiers (da's), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kramer users keep a unique electronic library for Kramer distribution amplifiers (da's)s, where you can use our link to download the user manual for the Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN.

The user manual lists all of the functions of the Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN, all the basic and advanced features and tells you how to use the distribution amplifiers (da's). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kramer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kramer VM-50AN 1:5 Audio Distribution Amplifier VM-50AN. User manuals are also available on the Kramer website under Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's).
