User manual for the Kurzweil PC3A8 - Performance Controller with KORE 64 PC3A8
The user manual for the Kurzweil PC3A8 - Performance Controller with KORE 64 PC3A8 provides
necessary instructions for the proper use of the product Pro Audio - Computer Audio - Keyboard Controllers.

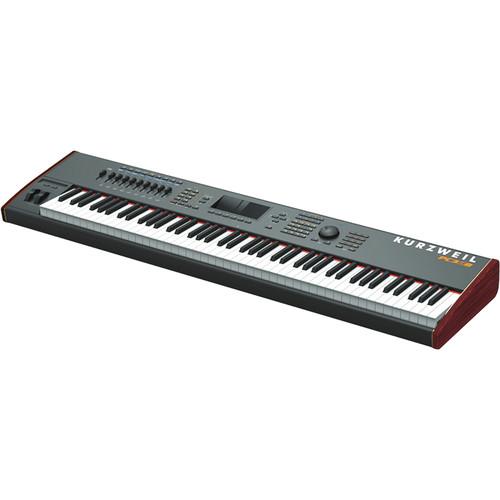

The PC3A8 from Kurzweil is an 88-key performance controller that features a fully weighted hammer action, velocity and aftertouch sensitive keyboard, loaded with a sound set that is both broad and deep. The KORE 64 and the Artis German 9' Grand Piano expansion packs are built-in and together with the KB3 ToneReal Organs and a variety of synthesis engines, they deliver over 1,300 factory programs.
The keyboard is packed with physical controls, and can be set up in a variety of ways for live performance using up to sixteen independent zones. A complete set of effects is also available with the added ability to create complex effect routings, while a comprehensive sequencer is complimented by sixteen arpeggiators and sixteen "Riff" generators. MIDI In, Out, Thru, along with a USB to Host connector provide the means to interface with a computer or other hardware MIDI devices.
If you own a Kurzweil keyboard controllers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Kurzweil PC3A8 - Performance Controller with KORE 64 PC3A8 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kurzweil PC3A8 - Performance Controller with KORE 64 PC3A8:
Specifications
Keyboard
88-key,fully weighted, hammer action, with velocity and aftertouch sensitivity and a quick release spring
Polyphony
128 voices, dynamically allocated
Multitimbral
16 parts (one per MIDI channel)
Architecture
Dynamic VAST Synthesis engine, with user programmable DSP algorithms and routing VA1 Inside Anti-aliasing, power-shaped oscillators and DSP processing for authentic analog emulations and complex sounds Cascade Mode Route one layer through the DSP of any other layer within a program, up to 32 consecutive layers deep
Presets
1,453
User Memory
16,000 locations for user objects
Expansion Slots
Includes KORE 64 and the German D Grand EXP Piano (built-in)
Effects
16 insert effects distributed over 11 buses, 2 auxiliary sends and 2 master effects (saved with each song and setup)
Sequencer
Unlimited tracks (on import) 960 PPQ resolution Song editing functions include both event and track-based tools like quantize, swing, remap, controller scaling and more Controller chasing and a global "set song length" functions
Controllers
1 x Pitch wheel 1 x Modulation wheel 9 x Sliders/drawbar controllers 10 x Front panel switches (momentary or toggle, software selectable) 3 x Switch pedal inputs 2 x Continuous control pedal inputs 1 x Super Ribbon input 1 x Breath controller input Mono pressure
MIDI
216 factory programmed MIDI setups including up to 16 independent zones, effects, independent controller assignments, triggerable pattern-based "Riffs" and arpeggiator settings Standard General MIDI MIDI over USB
Arpeggiator
16 independent arpeggiators with multiple latch modes, selectable play order, velocity, duration, tempo, and sync functions as well as pre-recorded beats and musical phrases
Riffs
16 "Riff" generators, used for triggering MIDI sequenced phrases, beats, or complete multitrack arrangements from notes on the keyboard and/or any on-board physical controller
Connections
4 x 1/4" TRS phone Out (24-bit DACs) 1 x 1/4" TRS Headphone 3 x 5-pin DIN MIDI In, Out, Thru 1 x RCA coaxial S/PDIF Out (24-bit stereo, 44.1, 48, 88.2, 96, 176.4, 192 kHz modes and externally clockable)
External Storage
Supports USB thumb-drives for loading/saving user data as well as performing OS updates USB computer port - load/save data directly to and from a Mac/PC as well as perform OS updates
File Compatibility
Loads PC3K: All objects except samples PC3LE: All objects K2 Series: Majority of setups, programs, and keymaps (no sample loading)
Display
240 x 64 angled, back-lit CCFL with dedicated back panel brightness and contrast controls
Power Requirements
120~240 VAC, 50/60 Hz for internal AC power supply
