User manual Lectrosonics UCR401A - Compact Camera Mountable UCR401-21

Operating instructions and pdf manual for use - Lectrosonics UCR401A - Compact Camera Mountable UCR401-21 User manual, User manual Lectrosonics UCR401A - Compact Camera Mountable UCR401-21, Lectrosonics, UCR401A, Compact, Camera, Mountable, UCR401-


User manual for Lectrosonics UCR401A - Compact Camera Mountable UCR401-21

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

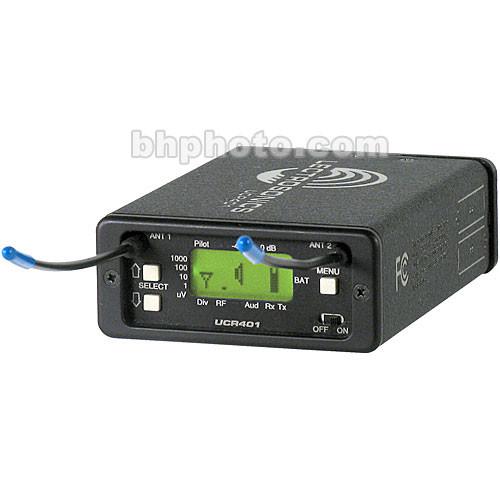

Lectrosonics UCR401A - Compact Camera Mountable UCR401-21
  • Manufacturer: Lectrosonics
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Receivers
  • Safety instructions
  • Startup and operation of the wireless receivers
  • Tips for setting up your Lectrosonics
  • Settings and expert assistance
  • Contact Lectrosonics service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Lectrosonics UCR401A - Compact Camera Mountable UCR401-21, which address similar problems with connecting and setting up Wireless Receivers Lectrosonics.



User manual for the Lectrosonics UCR401A - Compact Camera Mountable UCR401-21

The user manual for the Lectrosonics UCR401A - Compact Camera Mountable UCR401-21 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Receivers.

The Lectrosonics 400 Series wireless microphone systems combine digital hybrid technology, diversity reception and rugged components to achieve pristine audio signal at long range.
If you own a Lectrosonics wireless receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lectrosonics UCR401A - Compact Camera Mountable UCR401-21 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Lectrosonics UCR401A - Compact Camera Mountable UCR401-21Download user manual for Lectrosonics UCR401A - Compact Camera Mountable UCR401-21
(PDF file, 1.62 MB)
Additional parameters of the Lectrosonics UCR401A - Compact Camera Mountable UCR401-21:
Type of Receiver Diversity / Triple conversion, superheterodyne
RF Carrier Frequency Range 537.600 MHz to 563.100 MHz (Frequency Block 21)
Approx. Working Range 300 feet in adverse conditions
1,000 feet in ideal conditions
Overall Frequency Response 30Hz to 20kHz (+/- 1dB)
Signal-to-Noise Ratio 103.5 to 113dB (varies with SmartNR setting)
# Of Channels 256 frequencies in 100kHz steps per 26MHz wide block
Type of Output(s) Balanced XLR Male Output
Headphone Monitoring No
Power Requirements Ext DC: Minimum 6V to Maximum 18V DC; 1 W, 80 mA at 12VDC
Int Batt: x2 AA alkaline or lithium (90 mA @ 9V, 120mA @ 6V)
Battery Type/Approx. Life x2 AA Alkaline: 4 hours continuous, 10 hours intermittent
AA Lithium: Up to 11 hours (continuous and intermittent usage are the same)
Display LCD and membrane switch control
Mounting Options Camera Mount
Antenna Type Fixed, flexible whip
Dimensions 2.83 x 1.25 x 4.64" (71.88 x 32 x 118mm) WxHxD
Weight 13 oz. with batteries
Packaging Info
Package Weight 2.65 lb
Box Dimensions (LxWxH) 14.1 x 11.0 x 4.2"
The user manual for the Lectrosonics UCR401A - Compact Camera Mountable UCR401-21 can be downloaded in .pdf format if it did not come with your new wireless receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lectrosonics users keep a unique electronic library for Lectrosonics wireless receiverss, where you can use our link to download the user manual for the Lectrosonics UCR401A - Compact Camera Mountable UCR401-21.

The user manual lists all of the functions of the Lectrosonics UCR401A - Compact Camera Mountable UCR401-21, all the basic and advanced features and tells you how to use the wireless receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lectrosonics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lectrosonics UCR401A - Compact Camera Mountable UCR401-21. User manuals are also available on the Lectrosonics website under Pro Audio - Location Sound - Wireless Receivers.
