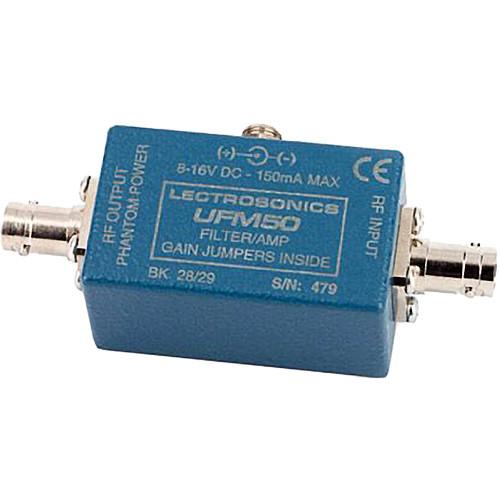

The Lectrosonics UHF Filter/Amplifier Module 24-25 MHz provides a unique, high performance solution for antenna systems requiring long cable runs or distribution to multiple receivers or locations. The unit can be used to apply RF gain at the antenna ahead of a long run of coaxial cable to compensate for signal loss through the cable. A compact, high performance multicoupler can also be configured using the UFM50 ahead of an RF splitter to offset the loss through the splitter.
The UFM50 design places RF filtering before gain to minimize intermodulation (IM) products and prevent overload. Two transmission line ceramic resonators at the input provide filtering with a 50 MHz bandwidth. Following the filters, 12dB of gain is applied with a high quality GasFET RF amplifier with an excellent +41dBm IP3. The result is outstanding RF performance without IM or overload problems.
A switching regulator is used in the power supply to control current consumption over an input voltage range of 8-16 volts. The regulator maintains low current consumption and low heat dissipation which is especially useful in portable audio mixing common in field production and ENG.
The UFM50 can be powered from external DC or via phantom power through a coaxial cable connected to a multicoupler. The housing is constructed of cast aluminum with a brushed aluminum cover plate. Two rugged BNC connectors and a threaded, locking power jack provide secure connections for rugged field conditions and for long-term installations.
If you own a Lectrosonics lecterns add-on accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Lectrosonics UHF Filter/Amplifier Module 24-25 MHz UFM50-24-25 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lectrosonics UHF Filter/Amplifier Module 24-25 MHz UFM50-24-25:
Specifications
Third Order Intercept
+27 dBm @ input (+41 dBm output)
Inputs
RF in: BNC DC in: 2.1 mm locking power jack
Output
RF out: BNC (and phantom power in)
Frequency Range
24-25 MHz
Bandwidth
Filter: 50 MHz, factory set
Gain
RF: +12 dB with 0 dB attenuator +8 dB with 4 dB attenuator +5 dB with 7 dB attenuator
Power Requirements
8 V DC (130 mA) up to 16 volts DC (70 mA) at the DC input jack, auto reset circuit breaker
Phantom Power
DC voltage supplied by UMC16A BNC input jack or BIAS-T power inserter
Power Consumption
1.075 W nominal (switching regulator)
Compliance
CE EN55022 and EN50082-1:1998
Dimensions
2.26 x 1.39 x 1.14" (5.74 x 3.53 x 2.9 cm) (not including BNCs)
Weight
3.3 oz (93.55 g)
