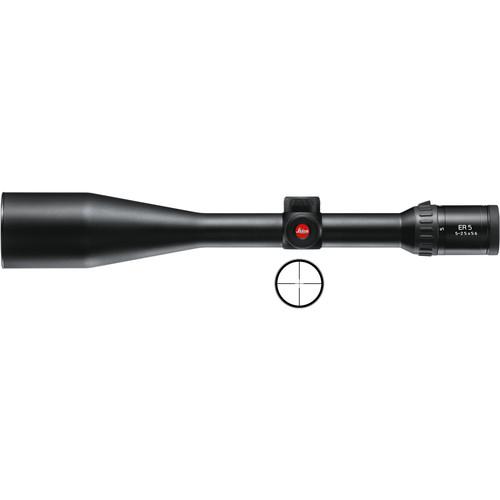

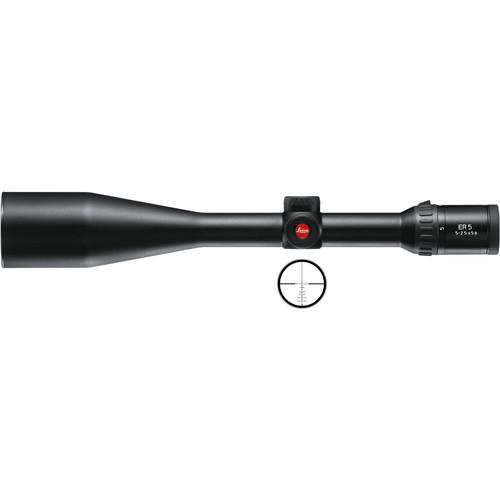

The extended range 5-25x56 ER 5 Side Focus Riflescope from Leica combines a very large objective lens, high contrast fully multicoated optics, and a zoom magnification. The 56mm objective offers the highest light gathering capacity, which allows you to have clear images in very low lighting conditions and extends your hunting day from dawn to dusk. Aiming is parallax-free from 50 yards to infinity and the scope offers a 1/4 MOA per click impact point correction, a 45 MOA windage, and 50 MOA elevation adjustments with capped turrets that can be reset without tools. The side focus adjustment option helps you to adjust sharpness of the reticle without taking your eye off the target.

Intended for fast centering of targets, the Plex reticle is located in the second focal plane and will remain the same in size as you change the zoom factor on your scope. It provides high target visibility in low light conditions and against dark backgrounds.

The riflescope is nitrogen-filled water and fogproof and has a 30mm diameter main tube. The housing is made anodized aluminum alloy with a matte-black finish. The knurled zoom ring is located an eyepiece a and has a low profile lever for a fast one-finger zooming action. Also included with the riflescope are a lens cloth, objective lens and eyepiece covers.
If you own a Leica riflescopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leica 5-25x56 ER 5 Side Focus Riflescope (Plex) 51090 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leica 5-25x56 ER 5 Side Focus Riflescope (Plex) 51090:
Specifications
    Magnification 5 - 25x
    Light Transmission ≥90%
    Objective Lens Diameter 56mm
    Reticle Plex reticle
    Second focal plane
    Field of View 21.5 - 4.2' @ 100 yd (6.6 - 1.3 m @ 100 m)
    Parallax Correction 50 yd (45.7 m) to infinity
    Eye Relief 3.8" (95 mm)
    Entrance Pupil 2.2" (56 mm) max
    Exit Pupil Diameter 11 - 2.3 mm
    Vignetting 0%, at low magnification
    Diopter Adjustment +2.5 to -2.5
    Filter Thread M 58x0.75
    Impact Point Correction 1/4 MOA
    Maximum Windage/Elevation Adjustment 45 MOA / 50 MOA
    Weatherproofing Waterproof
    Nitrogen-filled fogproof
    Operating Temperature -13 to 131°F (-25 to 55°C)
    Storage Temperature -40 to 185°F (-40 to 85°C)
    Dimensions Length: 17" (431 mm)
    Main tube diameter: 1.18" (30 mm)
    Objective tube diameter: 2.44" (62 mm)
    Eyepiece tube diameter: 1.63" (41 mm)
    Weight 24 oz (680 g)
    The user manual for the Leica 5-25x56 ER 5 Side Focus Riflescope (Plex) 51090 can be downloaded in .pdf format if it did not come with your new riflescopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Leica users keep a unique electronic library for Leica riflescopess, where you can use our link to download the user manual for the Leica 5-25x56 ER 5 Side Focus Riflescope (Plex) 51090.

    The user manual lists all of the functions of the Leica 5-25x56 ER 5 Side Focus Riflescope (Plex) 51090, all the basic and advanced features and tells you how to use the riflescopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Leica service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Leica 5-25x56 ER 5 Side Focus Riflescope (Plex) 51090. User manuals are also available on the Leica website under Optics - Riflescopes & Sights - Riflescopes.
