User manual Leica T Mirrorless Digital Camera (Black) 18180

Operating instructions and pdf manual for use - Leica T Mirrorless Digital Camera (Black) 18180 User manual, User manual Leica T Mirrorless Digital Camera (Black) 18180, Leica, T, Mirrorless, Digital, Camera, Black, 18180, Video


User manual for Leica T Mirrorless Digital Camera (Black) 18180

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Leica  T Mirrorless Digital Camera (Black) 18180
  • Manufacturer: Leica
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Leica
  • Settings and expert assistance
  • Contact Leica service
  • Troubleshooting
  • Warranty information
Leica  T Mirrorless Digital Camera (Black) 18180 Leica  T Mirrorless Digital Camera (Black) 18180
Click to enlarge image

We recommend checking out our discussion threads on the Leica T Mirrorless Digital Camera (Black) 18180, which address similar problems with connecting and setting up Mirrorless System Cameras Leica.



User manual for the Leica T Mirrorless Digital Camera (Black) 18180

The user manual for the Leica T Mirrorless Digital Camera (Black) 18180 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

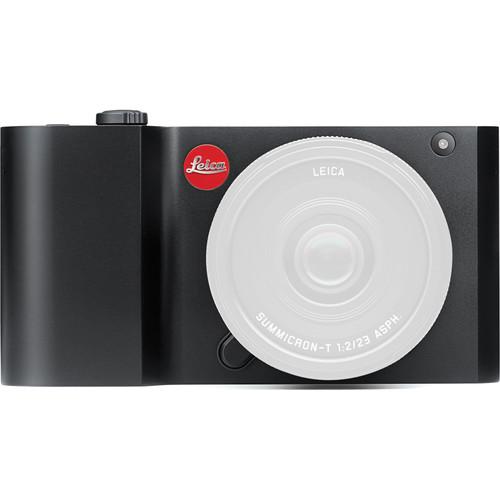

The black Leica T Mirrorless Digital Camera is a compact interchangeable lens camera body featuring a 16.3 megapixel APS-C CMOS sensor housed in a solid aluminum alloy unibody design with the Leica T lens mount for attaching optional lenses. This works well with the 1.3 million pixel 3.7" TFT LCD touchscreen on the rear of the camera in order to create a simple, high-quality system with a modern aesthetic. The Leica T is also very user-friendly due to the ability to customize the menu and easily scroll through settings using the touch screen as well as adjust settings using two dials on the top of the camera.

For shooting, the camera is very capable with a contrast-based autofocus system that works well with Leica T-mount lenses. Also, it can shoot continuously at up to 5 fps for up to 12 shots. Another feature of the camera is full high definition video recording at 1920 x 1080p at 30 fps, easily done by pressing the record button located on the top of the camera.

Other built-in features include a flash unit with a guide number of 15' at ISO 100 for low-light shooting conditions as well as 16 GB of internal memory for storing your images. This memory can be added to through the use of SD/SDHC/SDXC memory cards as well. The camera even has Wi-Fi connectivity and is able to directly connect to iOS devices through the use of the Leica App T. The camera also includes a carrying strap with a quick connect method and comes with a download of Adobe Photoshop Lightroom for editing.

To ensure maximum functionality, be sure to download and install the latest firmware update from the Leica website.
If you own a Leica mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leica T Mirrorless Digital Camera (Black) 18180 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leica T Mirrorless Digital Camera (Black) 18180:
Imaging
Lens Mount Leica T
Camera Format APS-C (1.5x Crop Factor)
Pixels Actual: 16.5 Megapixel
Effective: 16.3 Megapixel
Max Resolution 16 MP: 4944 x 3278
Aspect Ratio 3:2
Sensor Type / Size CMOS, 23.6 x 15.7 mm
File Formats Still Images: DNG, JPEG
Movies: MP4
Memory Card Type SD
SDHC
SDXC
AV Recording
Video Recording Yes
Resolution 1920 x 1080: 30 fps
1280 x 720: 30 fps
Aspect Ratio 16:9
Focus Control
Focus Type Auto & Manual
Viewfinder/Display
Display Screen 3.7" Touchscreen   LCD (1,300,000)
Exposure Control
ISO Sensitivity Auto, 100-12500
Shutter 30 - 1/4000
Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
Exposure Modes Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV steps)
White Balance Modes Auto, Cloudy, Custom 1, Custom 2, Daylight, Flash, Halogen, Manual, Shade
Burst Rate Up to 5 fps for up to 12 frames
Flash
Flash Modes Auto
Auto/Red-eye Reduction
Flash On
Flash On w/ Red-eye Reduction
Slow Sync
Slow Sync/Red-eye Reduction
Built-in Flash Yes
Guide No. 14.76' (4.5 m) ISO100
Max Sync Speed 1 / 180 seconds
Flash Compensation -3 EV to +3 EV (in 1/3 EV steps)
External Flash Connection Proprietary
Performance
Continuous Shooting Up to 5 fps
Self Timer 2 seconds, 12 seconds
Connectivity 1x Micro-USB
Wi-Fi Capable Yes
Power
Battery 1x BC-DC 13 Rechargeable Lithium-ion Battery Pack, 7.4 VDC, 1040 mAh
AC Power Adapter BC-DC 13 (Included)
Physical
Dimensions (WxHxD) 5.3 x 2.7 x 1.3" / 134.6 x 68.6 x 33.0 mm
Weight 13.55 oz / 384 g with battery
Packaging Info
Package Weight 4.85 lb
Box Dimensions (LxWxH) 8.819 x 8.583 x 6.535"
The user manual for the Leica T Mirrorless Digital Camera (Black) 18180 can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Leica users keep a unique electronic library for Leica mirrorless system camerass, where you can use our link to download the user manual for the Leica T Mirrorless Digital Camera (Black) 18180.

The user manual lists all of the functions of the Leica T Mirrorless Digital Camera (Black) 18180, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Leica service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Leica T Mirrorless Digital Camera (Black) 18180. User manuals are also available on the Leica website under Photography - Digital Cameras - Mirrorless System Cameras.
