User manual for Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS
- Manufacturer: Lenovo
- Basic description and contents of package
- Product classification: Computers & Solutions - Laptops - Ultrabooks
- Safety instructions
- Startup and operation of the ultrabooks
- Tips for setting up your Lenovo
- Settings and expert assistance
- Contact Lenovo service
- Troubleshooting
- Warranty information
Click to enlarge image
|
We recommend checking out our discussion threads on the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS,
which address similar problems with connecting and setting up Ultrabooks Lenovo.
|
User manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS
The user manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS provides
necessary instructions for the proper use of the product Computers & Solutions - Laptops - Ultrabooks.

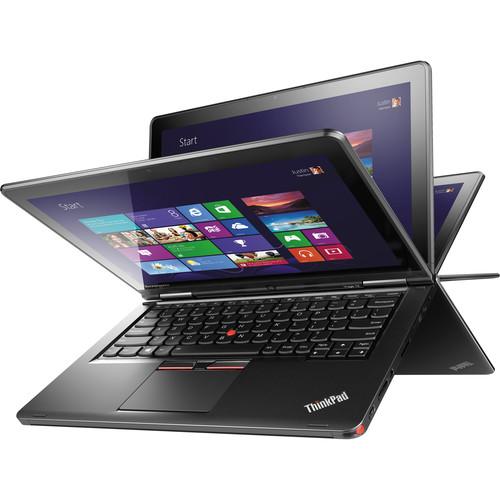

The 12.5" ThinkPad Yoga 12 Multi-Touch Ultrabook from Lenovo is a system whose screen can rotate 360° to vary between laptop, tent, stand, and tablet mode. That means you can select a specific mode based on what you need to do and combine that mode with the keyboard and/or the 10-point multi-touch control to help maximize your productivity.
Constructed from magnesium alloy and polyphenylene sulfide, the Yoga 12 is powered by a 2.6 GHz Intel Core i7-5600U Dual-Core processor which allows you to run multiple applications simultaneously and features a burst speed of up to 3.2 GHz. The onboard 8GB of 1600 MHz PC3-12800 DDR3L RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. The 12.5" anti-glare multi-touch IPS display supports 10-finger gestures and features a Full HD 1920 x 1080 native resolution, LED-backlighting, 400 cd/m2 brightness, and a 16:9 aspect ratio. The integrated Intel HD Graphics 5500 delivers a sharp, clear picture and you'll also be able to output video to an external display using the system's Mini HDMI port, which supports dual independent displays with a maximum resolution of 1920 x 1080 @ 60 Hz.
For long term storage of your files, the Yoga 12 has a 256GB Opal 2.0 SATA III SSD. While the SSD may not have the larger capacity of a traditional hard drive, it contains no moving parts and is able to operate at faster data transfer speeds. Additionally, because it has no moving parts, it is more resistant to damage from bumps and drops and do not have any read or write heads to wear down the drive media when contact occurs during read and write operations.
If you want to add external peripherals, the Yoga 12 offers 2 x USB 3.0 ports, once of which doubles as an always-on charging port. Network connectivity is achieved using 802.11ac Wi-Fi and Bluetooth 4.0 technology will also allow you to connect additional compatible peripherals. Other integrated features include a 4-in-1 SD & MMC media card reader, a 720p webcam, dual array microphones, and 2 x 1.5W stereo speakers that support HD audio and Dolby Home Theater v4.
The Yoga 12 operates using an included 45W AC adapter and an 8-cell/47Wh lithium-polymer battery that will last for up to 8 hours before recharging is required. Also included is a Wacom Digitizer pen and the installed operating system is Windows 8.1 Pro (64-bit).
|
If you own a Lenovo ultrabooks and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS:
| Processor | Intel Core i7-5600U Dual-Core | | Base Clock Speed | 2.6 GHz | | Max Boost Speed | 3 GHz | | L3 Cache | 1 x 4 MB | | System Bus | 5 GT/s | | Memory | Installed: 8 GB | | Memory Type | PC3-12800 1600 MHz DDR3L SDRAM | | Graphics Type | Integrated | | Graphics Card | Intel HD Graphics 5500 | | Panel Type | IPS | | Size | 12.5" | | Aspect Ratio | 16:9 | | Native Resolution | 1920 x 1080 | | Touchscreen | Yes | | Finish | Matte | | Brightness | 400 cd/m2 | | External Resolution | Up to 1920 x 1080 | | Bays | 1 x 2.5" (7 mm) | | Storage Drive | 1 x 256 GB SSD; SATA | | Optical Drive | None | | Ports | 2 x USB 3.0 | | Display | 1 x Mini-HDMI | | Audio | 1 x Integrated Speaker
1 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Media Card Slots | SD/SDHC/SDXC
MMC | | Network | None | | Wi-Fi | 802.11ac | | Bluetooth | Bluetooth 4.0 | | Webcam | Yes
720p Video | | Operating System | Windows 8.1 (64-bit) | | Security | HDD User Password Protection, Power-On Password, Infineon TPM Software Professional Package | | Keyboard | Type: Standard Notebook Keyboard
Features: Backlight | | Pointing Device | TrackPoint | | Battery | 8-Cell Non-Removable Lithium-Polymer Providing up to 8 Hours per Charge (47 Wh) | | Power Requirements | Not Specified By Manufacturer | | Dimensions (WxHxD) | 12.4 x 8.7 x 0.7" / 31.5 x 22.1 x 1.8 cm | | Weight | 3.48 lb / 1.58 kg Starting weight | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 15.0 x 13.3 x 3.5" | |
The user manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS can be downloaded in .pdf
format if it did not come with your new ultrabooks, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Lenovo users keep a unique electronic library
for Lenovo ultrabookss,
where you can use our link to download the user manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS.
The user manual lists all of the functions of the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS,
all the basic and advanced features and tells you how to use the ultrabooks.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Lenovo service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL003AUS. User manuals are also
available on the Lenovo website under Computers & Solutions - Laptops - Ultrabooks.
