User manual Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U

Operating instructions and pdf manual for use - Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U User manual, User manual Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U, Lenovo, 8, Bay, ThinkServer, RD630, Rack, Server,


User manual for Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U

Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U
  • Manufacturer: Lenovo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - NAS Enclosures
  • Safety instructions
  • Startup and operation of the nas enclosures
  • Tips for setting up your Lenovo
  • Settings and expert assistance
  • Contact Lenovo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U, which address similar problems with connecting and setting up NAS Enclosures Lenovo.



User manual for the Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U

The user manual for the Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - NAS Enclosures.

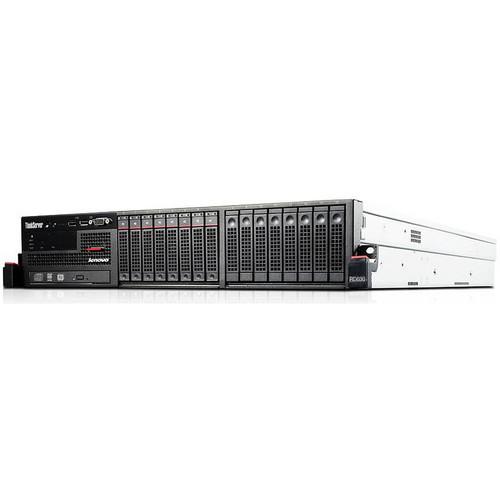

The 8 Bay ThinkServer RD630 Rack Server with Intel Xeon E5-2640 Processor from Lenovo is a highly scalable and powerful 2U solution. It is ideal for business process or decision support deployments that demand rich performance, flexible system configurations and an optimized memory sub-system. It features built-in full redundancy and a sophisticated hardware RAID that allow your managed networks and user groups to enjoy vault-safe data protection and lightning-fast data performance. The ThinkServer RD630 Server offers outstanding remote manageability and rich I/O. With its robust bandwidth yet energy efficient design, it is a perfect solution for high performance workloads. The server's open standard design and IPMI 2.0 compliant protocols ensure worry-free integration into your hybrid network environments. It also works with your existing tools, management consoles and storage devices.
If you own a Lenovo nas enclosures and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U:
CPU Dual socket
Intel Xeon E5-2640
Storage Module Drive Bays 8x 2.5" hot-swap HDD - up to 14.4 TB internal SAS storage
Chipset Intel C602
Memory 20 DIMM sockets - up to 320 GB*
- RDIMM and LV RDIMM 8 GB DDR3-1333
Memory DIMM
- 2 G/4 G/8 G/16 G RDIMM
- 2 G/4 G/8 G/16 G LV RDIMM
RAS: ECC, lock step, mirroring, sparing
CPU 1: 12 memory slots (4 channel)
CPU 2: 8 memory slots (4 channel)

*When installing LV RDIMM memory, a maximum of 16 DIMMs can be populated

Storage Controller ThinkServer RAID 700 Adapter:
Hardware SAS/SATA supports RAID 0/1/5/6/10/50/60 has 512 MB cache
ThinkServer RAID 700 battery
I/O Connectors Dual ports 10/100/1000 Intel i350 PHYs
One dedicated/shared management LAN
(Intel 82574)
Front: 2x USB 2.0, 1x VGA
Rear: VGA, COM, 4x USB 2.0
Internal: 2x USB (2x5), 2x USB (type A), 1x TPM/TCM
I/O Expansion Slots:
PCIe GEN3/1 CPU:
1x LP x8 mechanical, x8 electrical
1x FH/HL x16 mechanical, x16 electrical*
1x FH/HL x8 mechanical, x8 electrical
PCIe GEN3/2 CPU:
1x LP x8 mechanical, x8 electrical
1x FH/HL x16 mechanical, x16 electrical*
1x FH/HL x16 mechanical, x8 electrical
2x FH/HL x8 mechanical, x8 electrical

*Populated with hardware ThinkServer RAID 700 adapter

Diagnostics Intelligent diagnostics panel
Management ThinkServer management module premium (iKVM)
Manageability/RAS/Service IPMI 2.0/SOL
TPM (supports TCG 1.2)
uEFI
Cooling 5 + 1 hot-swap redundant fans*

*Fans are not redundant when using 130 W processors or greater

Power 1+1 redundant 800 W 80 Plus Gold power supply
ENERGY STAR server 1.1 compliant
OS Support Windows Server 2008 -- x86 Edition (Standard/Enterprise/Datacenter)
Windows Server 2008 -- x64 Edition (Standard/Enterprise/Datacenter)
Windows Server 2008 R2 -- x64 Edition (Standard/Enterprise/Datacenter)
Windows Server 2008 R2 SP1 -- x64 Edition (Standard/Enterprise/Datacenter)
Windows Small Business Server 2011 (Standard/Premium Add On)
Novel SUSE Linux Enterprise Server (11.1/11.2)
RedHat Enterprise Linux Server (5.7/6.1)
VMWare vSphere 5
Microsoft Hyper-v Server 2008
Microsoft Hyper-v Server 2008 R2 with SP1
Chassis 2U rack mountable
Dimensions (WxHxD) 17.40 x 3.45 x 28.37" (44.20 x 8.76 x 72.06 cm)
Weight 58.42 lb (26.5 kg)
The user manual for the Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U can be downloaded in .pdf format if it did not come with your new nas enclosures, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lenovo users keep a unique electronic library for Lenovo nas enclosuress, where you can use our link to download the user manual for the Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U.

The user manual lists all of the functions of the Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U, all the basic and advanced features and tells you how to use the nas enclosures. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lenovo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lenovo 8 Bay ThinkServer RD630 Rack Server with Intel 2594A6U. User manuals are also available on the Lenovo website under Computers & Solutions - Drives & Storage - NAS Enclosures.
