User manual Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US

Operating instructions and pdf manual for use - Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US User manual, User manual Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US, Lenovo, ThinkPad, W550s, 20E20010US, 15.5, Mobile, 20E20010U


User manual for Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US

Lenovo ThinkPad W550s 20E20010US 15.5
  • Manufacturer: Lenovo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Laptops - Mobile Workstations
  • Safety instructions
  • Startup and operation of the mobile workstations
  • Tips for setting up your Lenovo
  • Settings and expert assistance
  • Contact Lenovo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US, which address similar problems with connecting and setting up Mobile Workstations Lenovo.



User manual for the Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US

The user manual for the Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US provides necessary instructions for the proper use of the product Computers & Solutions - Laptops - Mobile Workstations.

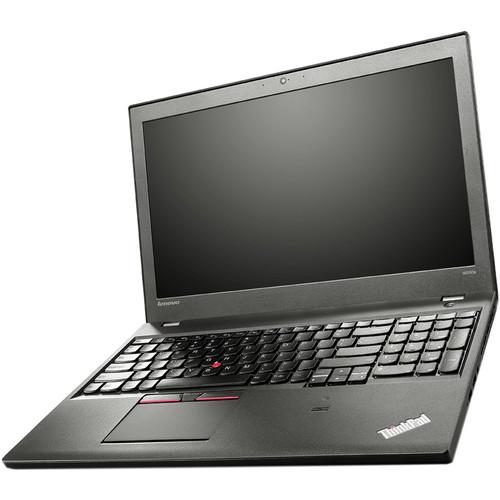

Constructed from glass-fiber reinforced plastic, the ThinkPad W550s 20E20010US 15.5" Mobile Workstation from Lenovo blends the form factor of an Ultrabook with the processing power of a mobile workstation. This system is powered by a 5th generation (Broadwell) 2.4 GHz Intel Core i7-5500U Dual-Core processor, allowing you to run multiple programs simultaneously. If you need more power, the processor can be overclocked to 3.0 GHz and the 8GB of 1600 MHz PC3-12800 DDR3L RAM allows the computer to quickly access frequently-used files and programs. The RAM also has an SO-DIMM form factor and may be upgraded to 16GB, using an 8GB module in each of the two memory slots.

The 15.5" LED-backlit display features In-plane switching (IPS) technology, as well as a 3K 2880 x 1620 native resolution, a brightness of 350 cd/m2, and a widescreen 16:9 aspect ratio. The 3K display helps to provide greater clarity and increased detail as compared to a Full HD display or other lower resolution display. The dedicated NVIDIA Quadro K620M graphics card has 2GB of video memory and is designed to deliver a sharp, clear picture. You'll also be able to output video to an external display via the built-in mini-DisplayPort and VGA port.

For connecting to the Internet, a Gigabit Ethernet port and 802.11ac Wi-Fi are included. For connecting external peripherals, such as storage or optical drives, users may take advantage of the 3 x USB 3.0 ports, one of which doubles as an always-on charging port for devices that are compatible with USB charging. Additional compatible peripherals, such as headsets, keyboards, and mice, may be connected using Bluetooth 4.0 technology.

For long-term storage of your files, a 256GB Opal2 SSD provides quick access to your data. While this SSD may not have the larger capacity of a traditional hard drive, SSDs contain no moving parts and are less susceptible to damage from bumps and drops. Having no moving parts also allows SSDs to access data more quickly, and they also receive less wear and tear due to the absence of read and write heads. Whether you are listening to music, watching a movie, or playing a game, the integrated stereo speakers with Dolby Advanced Audio offer high quality sound. There is also an integrated 720p webcam which allows you to engage in face-to-face conversations using Skype or other software, integrated dual noise-canceling HD mics, and a 4-in-1 media card reader that supports SD, SDHC, SDCX, and MMC cards. This system may also be upgraded to use WWAN (wireless wide area network) technology.

The ThinkPad W550s 20E20010US 15.5" Mobile Workstation includes a 6-cell / 48Wh battery, as well as a 65W AC adapter. While the installed operating system is Windows 7 Professional (64-bit), a license for Windows 8.1 Professional (64-bit) is also included..
If you own a Lenovo mobile workstations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US:
Performance
Processor 2.4 GHz Intel Core i7-5500U Dual-Core (Broadwell)
Cache L3: 4 MB
System Bus 5 GT/s
Memory Slots: 2x SO-DIMM 204-Pin
Type: PC3-12800 1600 MHz DDR3L SDRAM
Installed: 8 GB (1x8 GB SO-DIMM 204-Pin)
Capacity: 32 GB
Graphics Card Type: Dedicated
Installed: NVIDIA Quadro K620M with 2 GB DDR3 SDRAM Dedicated
Display
Type Widescreen
Size 15.5"
Backlight LED
Aspect Ratio 16:9
Finish Not Specified By Manufacturer
Native Resolution 2880 x 1620
Brightness 350cd/m2
Storage
Hard Drive Installed: 256 GB SSD
Optical Drive None
Input/Output Connectors
Ports 3x USB 3.0 (A) (1x always-on charging port)
1x Docking Connector
Display 1x Mini DisplayPort
1x VGA
Audio Integrated Stereo Speakers
Dual Array Microphones
1x 1/8" (3.5 mm) Headphone/Microphone Combo Jack
Flash Media Slot 1x SD
1x SDHC
1x SDXC
1x MMC
Communications
Network 1x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
Wi-Fi 802.11ac
Bluetooth Bluetooth 4.0
Webcam Yes
720p Video
General
Operating System Windows 7 Professional (64-bit)
Security HDD User Password Protection, Power-On Password, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Kensington Lock Slot, Fingerprint Reader
Keyboard Type: Standard Notebook Keyboard
Features: Backlight, Numeric Keypad
Pointing Device TouchPad & TrackPoint
Battery 6-Cell External  Lithium-Ion (48 Wh)
Power Requirements Not Specified By Manufacturer
Dimensions (WxHxD) 15.0 x 0.9 x 10.2" / 380.5 x 22.4 x 258.3 mm
Weight 5.01 lb / 2.27 kg
Packaging Info
Package Weight 7.55 lb
Box Dimensions (LxWxH) 20.4 x 13.2 x 3.1"
The user manual for the Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US can be downloaded in .pdf format if it did not come with your new mobile workstations, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lenovo users keep a unique electronic library for Lenovo mobile workstationss, where you can use our link to download the user manual for the Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US.

The user manual lists all of the functions of the Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US, all the basic and advanced features and tells you how to use the mobile workstations. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lenovo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lenovo ThinkPad W550s 20E20010US 15.5" Mobile 20E20010US. User manuals are also available on the Lenovo website under Computers & Solutions - Laptops - Mobile Workstations.
