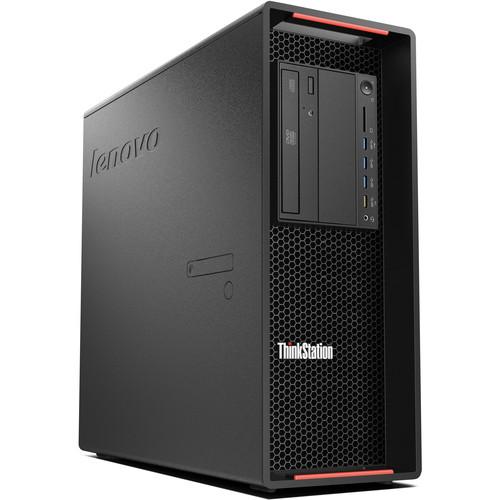

Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS
  • Manufacturer: Lenovo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Desktops & Workstations - PC Workstations
  • Safety instructions
  • Startup and operation of the pc workstations
  • Tips for setting up your Lenovo
  • Settings and expert assistance
  • Contact Lenovo service
  • Troubleshooting
  • Warranty information
Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS
Click to enlarge image

We recommend checking out our discussion threads on the Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS, which address similar problems with connecting and setting up PC Workstations Lenovo.



User manual for the Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS

The user manual for the Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS provides necessary instructions for the proper use of the product Computers & Solutions - Desktops & Workstations - PC Workstations.

The ThinkStation P500 30A7000QUS Tower Workstation from Lenovo is a high-performance system with fast processing that was designed for architects, product designers, financial traders, medical and research professionals, software designers, and engineers. Additionally, it is also well suited for those who work with intensive graphics, multimedia tasks, and gaming.

The system is powered by a 3.5 GHz Intel Xeon E5-1620 v3 Quad-Core processor which will allow you to run multiple applications simultaneously. If you need more power, the CPU can be overclocked to 3.6 GHz. The built-in 4GB of 2133 MHz PC4-17000 DDR4 SDRAM allows the computer to quickly access frequently-used files and programs. The RAM is installed in a 1 x 4GB configuration with an additional seven slots available, for a total of 8 x RDIMM memory slots. These eight slots are capable of supporting a total of 128GB of RAM, or 16GB per slot. The system memory also features ECC technology which can help detect and correct the most common kinds of internal data corruption.

For long term storage of your files, a 1TB 7200 rpm 3.5" hard drive offers quick access to your files. For reading and writing data stored on optical media, a 16x SuperMulti DVD-RW DL burner is built-in. External peripherals, such as additional storage, optical drives, printers, and more may be connected using the 8 x USB 3.0 ports and 4 x USB 2.0 ports. Internal expansion is also possible, as there are a total of six PCI/PCIe expansion slots as well as 4 x 3.5" internal bays and 2 x 5.25" external bays. There is also a built-in 9-in-1 memory card reader that will allow users to read and write to various memory card formats, including MS, MS Pro, SD, SDHC, SDXC, MMC, CF I, CF II, and MD.

The dedicated NVIDIA Quadro K2200 graphics card has 4GB of GDDR5 RAM and is designed to deliver a sharp, clear picture while allowing for a wide range of monitors to be used via its 2 x DisplayPort 1.2 and 1 x DVI-I port. It is also able to support up to three simultaneous displays and up to 4 x DisplayPort 1.2 multi-stream displays. This graphics card uses a 128-bit memory interface with a 80 GB/s memory bandwidth.

The 30A7000QUS includes a USB keyboard, a USB mouse, and a power cord. The installed operating system is Windows 7 Professional (64-bit) and a license for installing Windows 8.1 Professional (64-bit) is also included.
If you own a Lenovo pc workstations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lenovo ThinkStation P500 30A7000QUS Tower Workstation 30A7000QUS:
Specifications
    Performance
    Processor 3.5 GHz Intel Xeon E5-1620 v3 Quad-Core
    Cache L3: 10 MB
    Chipset Socket: FCLGA2011-3
    Type: Intel C612
    Memory Slots: 8
    Type: PC4-17000 2133 MHz DDR4 SDRAM
    Installed: 4 GB (1x4 GB)
    Capacity: 128 GB
    Graphics Card Type: Dedicated
    Installed: NVIDIA Quadro K2200 with 4 GB GDDR5 SDRAM Dedicated
    Storage
    Hard Drive Installed: 1 TB 7200 rpm
    Type: SATA
    Optical Drive 16x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support
    Drive Bay Expansion Quantity: 4
    Size: 3.5"
    Type: Internal
    Quantity: 2
    Size: 5.25"
    Type: External
    PCI Expansion Quantity: 2
    Type: PCIe x16
    Quantity: 2
    Type: PCIe x4
    Quantity: 1
    Type: PCIe x1
    Quantity: 1
    Type: PCI
    Inputs/Outputs
    Ports 4x USB 3.0 (A) (Front, also includes 1 x Charging port)
    4x USB 3.0 (A) (Rear)
    4x USB 2.0 (A) (Rear)
    2x PS/2 (Rear)
    1x DB-9 Serial (Rear)
    Display 2x DisplayPort
    1x DVI-I
    Audio  1/8" (3.5 mm) Headphone/Microphone Combo Jack (Front)
     1/8" (3.5 mm) Line Out (Rear)
     1/8" (3.5 mm) Line In (Rear)
     1/8" (3.5 mm) Microphone Input (Rear)
    Flash Media Slot Memory Stick
    Memory Stick PRO
    SD
    SDHC
    SDXC
    MMC
    CompactFlash
    Micro Drive
    Communications
    Network 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
    Wi-Fi None
    Bluetooth None
    Keyboard Type: Full-Size
    Features: Numeric Keypad
    Mouse USB
    General
    Operating System Windows 7 Professional (64-bit)
    Power Supply 490 W

    Gold.

    Dimensions (WxHxD) 6.9 x 17.3 x 18.5" / 17.5 x 43.9 x 47.0 cm
    Weight 48.94 lb / 22.20 kg
    Packaging Info
    Package Weight 44.15 lb
    Box Dimensions (LxWxH) 23.7 x 23.1 x 12.6"
