Made in the USA and outfitted with rugged 6061-T6 aluminum alloy and high transmission scratch-resistant optics, the D-EVO and LCO Dual-View Tactical Kit from Leupold offers shooters dual aiming capability. While the 6x20 D-EVO Prismatic Riflescope helps you with distance target acquisitions, the 1x32 LCO Red Dot Sight can be mounted on the same Picatinny rail and provide you with a tactical advantage in a close quarter combat. Both devices feature proprietary Xtended Twilight Lens System that offers index-matched multiple anti-glare coatings and maximizes light transmission in low-light situations. In order to improve contrast and reduce stray light, the environmentally friendly lead-free optical elements have their edges blackened. The DiamondCoat 2 protective coatings on external elements guard from scratches and abrasives. The matte black housings are crafted from lightweight and durable 6061-T6 aluminum alloy with scratch-resistant anodizing finish. They are fogproof, waterproof, and submersible to 66'.

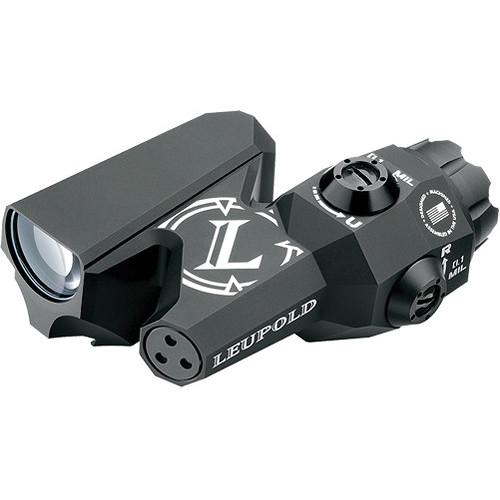

To accommodate the LCO in front of it, the Leupold 6x20 D-EVO Riflescope features a Z-shaped body with a bent optical path. This design extends the objective to the right side of your gun and saves space on a Picatinny rail for attaching the red dot sight. The optical system offers 6x magnification and a 20mm objective lens with a protective crenellated bezel. For added precision while you aim, the scope provides a Close Mid-Range Reticle with wind holds (CMR-W). At 600 yards, a 0.5 MOA dot and surrounding it 5 MOA circle provide a 3" aiming center dot and a 30" ring to encircle your target. To help you account for ballistic bullet drop and wind deflection, the scope has a 14.5 mil windage and elevation adjustment range and a 0.1 mil impact point correction.

The 1x32 LCO Reflex Sight, or the "Leupold Carbine Optic", is designed for aiming with both eyes and features a 1x 32mm window. The 1 MOA red dot reticle offers 16 illumination levels with a manual dial dimmer. Its lowest brightness settings make it compatible with night vision devices. It operates on one included CR123A battery with a maximum runtime of five years.
If you own a Leupold riflescopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leupold D-EVO and LCO Dual-View Tactical Kit 120556 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leupold D-EVO and LCO Dual-View Tactical Kit 120556:
Specifications
    • 1x32 LCO Reflex Sight (1 MOA Red Dot Reticle)
      Magnification 1x
      Objective Lens Diameter 32mm
      Reticle 1 MOA red dot
      Field of View Dependent on eye relief
      Exit Pupil Diameter N/A
      Mounting System Picatinny
      Impact Point Correction 1/2 MOA per click
      Windage/Elevation Adjustment 60 MOA
      Construction 6061-T6 aluminum alloy
      Weatherproofing Nitrogen-filled: Fogproof; Submersible to 66' / 20 m
      Battery / Runtime 1 x CR123A / 5 yr, max
      Length 3.6" / 9.1 cm
      Weight 9.5 oz / 269.3 g
      Packaging Info
      Box Dimensions (LxWxH) 6.6 x 4.4 x 3.5"
    • 6x20 D-EVO Prismatic Riflescope (CMR-W Reticle)
      Magnification 6x
      Objective Lens Diameter 20mm
      Reticle CMR-W
      Field of View Angular: 3°
      Linear: 15.7' @ 100 yd (5.2 @ 100 m)
      Eye Relief 3.4" (85.1 mm)
      Exit Pupil Diameter 3.3 mm
      Impact Point Correction 0.1 mil
      Maximum Windage/Elevation Adjustment 14.5 mil
      Weatherproofing Waterproof, submersible to 66' (20 m)
      Fogproof
      Dimensions 4.6 x 3.3 x 2" (117 x 84 x 51 mm)
      Weight 13.8 oz (391 g)
      Packaging Info
      Box Dimensions (LxWxH) 8.6 x 5.4 x 3.7"
    The user manual for the Leupold D-EVO and LCO Dual-View Tactical Kit 120556 can be downloaded in .pdf format if it did not come with your new riflescopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Leupold users keep a unique electronic library for Leupold riflescopess, where you can use our link to download the user manual for the Leupold D-EVO and LCO Dual-View Tactical Kit 120556.
