User manual Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM

Operating instructions and pdf manual for use - Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM User manual, User manual Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM, Lewitt, MTP, 940, CM, Condenser, Performance, Handheld


User manual for Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM

Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM
  • Manufacturer: Lewitt
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Handheld Performance
  • Safety instructions
  • Startup and operation of the handheld performance
  • Tips for setting up your Lewitt
  • Settings and expert assistance
  • Contact Lewitt service
  • Troubleshooting
  • Warranty information
  • Price: 599 USD
We recommend checking out our discussion threads on the Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM, which address similar problems with connecting and setting up Handheld Performance Lewitt.



User manual for the Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM

The user manual for the Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Handheld Performance.

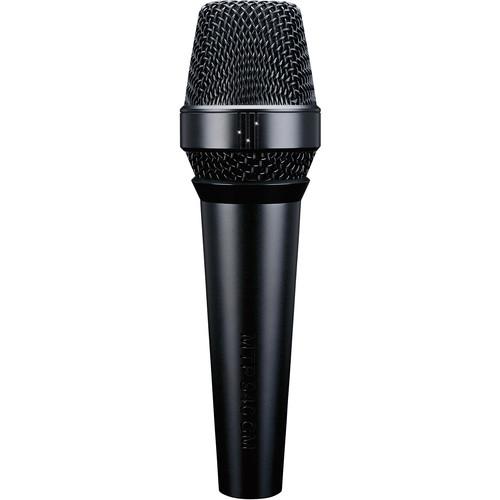

The MTP 940 CM Condenser Performance Handheld Microphone by Lewitt Audio is for capturing audio. It is used for applications such as live sound, studio recording, lead vocals, background vocals, conference rooms, lecture halls, boardrooms, and more. It features three switchable polar patterns; wide cardioid, cardioid, and supercardioid. It is designed to capture most sound sources from lead vocals and choirs to classic unplugged situations with a singer and an acoustic instrument.
If you own a Lewitt handheld performance and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM:
Operating Principle Acoustical: Pressure gradient transducer, externally polarized
Directional Pattern Cardioid, wide cardioid, supercardioid
Frequency Range 20 Hz to 20 kHz
Sensitivity 10 mV / Pa (-40 dBV), cardioid
Signal to Noise Ratio 85 dB-A
Equivalent Noise Level 9 dB-A, cardioid (IEC 61672-1)
Dynamic Range Mic Amp: 135 dB-A
Maximum SPL for 0.5% THD 144 dB, 0 dB pre-attenuation
150 dB, 6 dB pre-attenuation
156 dB, 12 dB pre-attenuation
Pad Pre-Attenuation: 6 dB, 12 dB, switchable
Bass Cut Filter Slope:
12 dB / octave at 80 Hz
12 dB / octave at 160 Hz
Impedance Rated: < 150 Ω
Rated Load Impedance: > 1000 Ω
Supply Voltage 48 V +/- 4 V (IEC 61938)
Current Consumption 5.5 mA (IEC 61938)
Connector Gold-plated 3-pin XLR
Dimensions (Diam. x H) 2.0 x 7.2" (51 x 183 mm)
Weight 11.7 oz (332 g)
The user manual for the Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM can be downloaded in .pdf format if it did not come with your new handheld performance, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lewitt users keep a unique electronic library for Lewitt handheld performances, where you can use our link to download the user manual for the Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM.

The user manual lists all of the functions of the Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM, all the basic and advanced features and tells you how to use the handheld performance. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lewitt service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lewitt MTP 940 CM Condenser Performance Handheld MTP-940-CM. User manuals are also available on the Lewitt website under Pro Audio - Live Sound - Handheld Performance.
