User manual for the Lexicon PCM96 - Reverb Processor PCM96
The user manual for the Lexicon PCM96 - Reverb Processor PCM96 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Effects Processors.

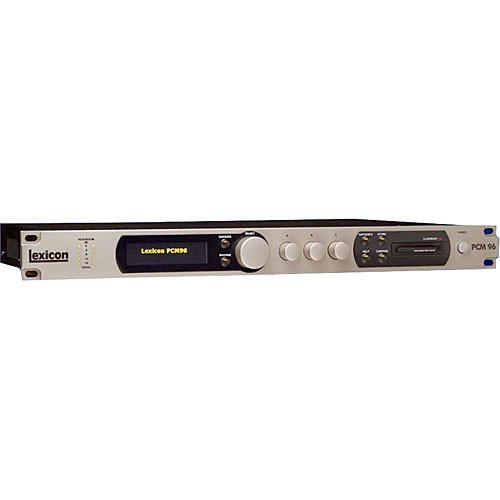

The PCM96 from Lexicon is a hardware stereo reverb/effects processor that provides a blend of both heritage and innovation. The processor delivers 28 algorithms drawn from new and reworked legendary Lexicon reverbs, delays and modulation effects. The former include completely new Room and Hall algorithms.
If you own a Lexicon effects processors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Lexicon PCM96 - Reverb Processor PCM96 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lexicon PCM96 - Reverb Processor PCM96:
| Effects Type || Reverb |
| Channels || 2 |
| Effect Variations || Chamber (stereo and mono) |
Random Delay (stereo and mono)
Random Hall (stereo and mono)
Plate (stereo and mono)
Dual Delay (stereo and mono)
Resonant Chords (stereo and mono)
Chorus/Flange (stereo only)
Concert Hall (stereo only)
Room (stereo and mono)
Hall (stereo and mono)
Signal Generator (stereo and mono)
| Presets || 1,200 |
| User Memory || 768 internal |
1,536 on optional memory card
| Inputs || 2 x XLR analog |
1 x XLR AES/EBU
1 x BNC Wordclock
| Output || 2 X XLR analog |
1 x XLR AES/EBU
| Other Connectors || 2 x FireWire |
2 x RJ-45
| AD/DA Conversion || 24-bit |
| MIDI || In/Out/Thru |
| External Storage || Type I Compact Flash |
| Display || High-resolution, high-contrast OLED |
| Frequency Response || 20Hz to 40KHz, +0/-3.0dB @ 96kHz |
| Dynamic Range || 112dB unweighted |
| Noise || Not specified by manufacturer |
| Dimensions (WxDxH) || 19 x 12.5 x 1.75" (483 x 318 x 45mm) |
| Weight || 8.65 lbs (3.9 kg) |
| Specialties || Four-channels FireWire streaming out of and return to a Mac based DAW |
| Package Weight || 12.46 lb |
| Box Dimensions (LxWxH) || 24.0 x 15.5 x 4.5" |
The user manual for the Lexicon PCM96 - Reverb Processor PCM96 can be downloaded in .pdf
format if it did not come with your new effects processors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Lexicon users keep a unique electronic library
for Lexicon effects processorss,
where you can use our link to download the user manual for the Lexicon PCM96 - Reverb Processor PCM96.
The user manual lists all of the functions of the Lexicon PCM96 - Reverb Processor PCM96,
all the basic and advanced features and tells you how to use the effects processors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Lexicon service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Lexicon PCM96 - Reverb Processor PCM96. User manuals are also
available on the Lexicon website under Pro Audio - Recording - Effects Processors.
