User manual Linhof 6x9cm Technikardan 23S Camera 000107

Operating instructions and pdf manual for use - Linhof 6x9cm Technikardan 23S Camera 000107 User manual, User manual Linhof 6x9cm Technikardan 23S Camera 000107, Linhof, 6x9cm, Technikardan, 23S, Camera, 000107, Video


User manual for Linhof 6x9cm Technikardan 23S Camera 000107

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

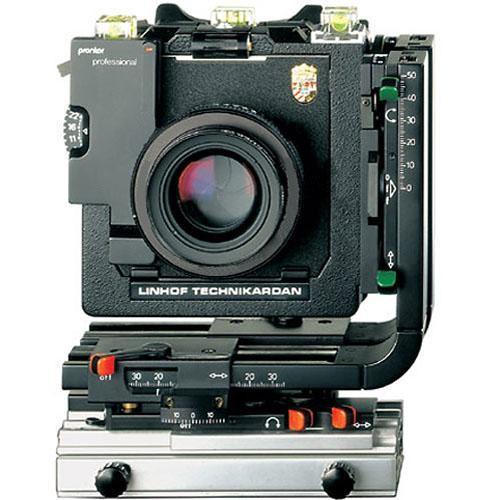

Linhof  6x9cm Technikardan 23S Camera 000107
  • Manufacturer: Linhof
  • Basic description and contents of package
  • Product classification: Photography - Film Cameras - Medium Format Cameras
  • Safety instructions
  • Startup and operation of the medium format cameras
  • Tips for setting up your Linhof
  • Settings and expert assistance
  • Contact Linhof service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Linhof 6x9cm Technikardan 23S Camera 000107, which address similar problems with connecting and setting up Medium Format Cameras Linhof.



User manual for the Linhof 6x9cm Technikardan 23S Camera 000107

The user manual for the Linhof 6x9cm Technikardan 23S Camera 000107 provides necessary instructions for the proper use of the product Photography - Film Cameras - Medium Format Cameras.

The Linhof Technikardan 23S is aimed at the discriminating hobby and professional photographer using rollfilm formats only. It is a fully adjustable midsize view camera with a Linhof Quicklock 23 type groundglass back. The rear standard allows the use of any of the Linhof type 23 viewing accessories. The front standard accepts the popular Technika 45 type lensboards. Its wide-angle lens capabilities allow the use of lenses 47mm and longer without recessed lensboards. The goal of its designers was to have studio camera features in a field camera size with interchangeable bellows, center swings and tilts with zero click stops, triple extension monorail, and precision-machined dovetail fittings for all movements which are positively secured with color-coded locks for smooth, rapid operation.
If you own a Linhof medium format cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Linhof 6x9cm Technikardan 23S Camera 000107 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Linhof 6x9cm Technikardan 23S Camera 000107:
Tilts Front and Rear tilts limited only by bellows, with reference scales +/- 10° with a "zero" position click-stop
Swings Front and Rear swings limited only by bellows, with reference scales +/- 10° with a "zero" position click-stop
Rise & Fall Front and Rear: 50mm rise only
Shifts Front and Rear: 35mm left and right
Camera Back 6x9cm (2x3") Vertical/Horizontal Linhof Technika 23 type, accepts standard 6x9 cut film holders,
Linhof Super Rollex,
Linhof Cine Rollex Roll film backs
Linhof 23 Polaroid backs only
Groundglass with grid-lines
NOTE: this camera does NOT accept Graphic-style(or Horseman/Mamiya RB) type backs
Interchangeable Bellows Yes
Minimum Extension With wide-angle bellows and flat lensboard: 2" (48mm)
With recessed lensboard: 6" (40mm)
Maximum Extension 13.5" (340mm) with standard bellows
Lensboard Linhof Technika 45 Type 96x99mm
Dimensions 4.9 x 6.5 x 8.2" (12.5 x 16.5 x 21cm) LxWxH
Weight 6 lbs (2.8kg)
Packaging Info
Package Weight 8.2 lb
Box Dimensions (LxWxH) 13.8 x 12.3 x 7.7"
The user manual for the Linhof 6x9cm Technikardan 23S Camera 000107 can be downloaded in .pdf format if it did not come with your new medium format cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Linhof users keep a unique electronic library for Linhof medium format camerass, where you can use our link to download the user manual for the Linhof 6x9cm Technikardan 23S Camera 000107.

The user manual lists all of the functions of the Linhof 6x9cm Technikardan 23S Camera 000107, all the basic and advanced features and tells you how to use the medium format cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Linhof service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Linhof 6x9cm Technikardan 23S Camera 000107. User manuals are also available on the Linhof website under Photography - Film Cameras - Medium Format Cameras.
