User manual Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B

Operating instructions and pdf manual for use - Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B User manual, User manual Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B, Lorex, by, FLIR, 4-Channel, 1080p, NVR, with, 1T


User manual for Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B

Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B
  • Manufacturer: Lorex by FLIR
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Surveillance Kits
  • Safety instructions
  • Startup and operation of the surveillance kits
  • Tips for setting up your Lorex by FLIR
  • Settings and expert assistance
  • Contact Lorex by FLIR service
  • Troubleshooting
  • Warranty information
  • Price: 650 USD
We recommend checking out our discussion threads on the Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B, which address similar problems with connecting and setting up Surveillance Kits Lorex by FLIR.



User manual for the Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B

The user manual for the Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Kits.

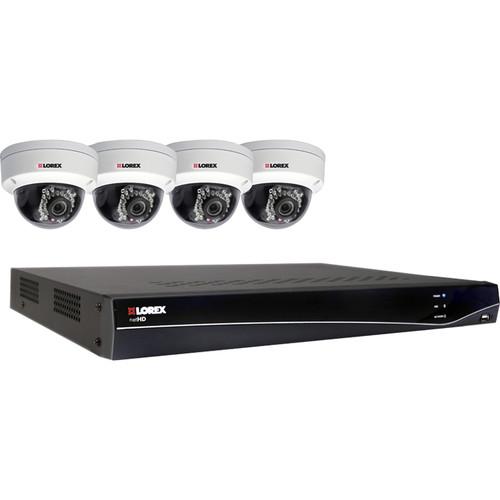

Monitor an indoor or outdoor area using the 4-Channel 1080p NVR with 1TB HDD and 4 1080p Dome Cameras from Lorex. The NVR and camera kit is a full set that can easily be installed using Lorex 3-minute Stratus Connectivity for viewing the cameras from a smartphone or tablet. The NVR features 4-channels of 1080p HD resolution and records footage in real-time at 30 fps per channel. With 1TB of preinstalled memory space, and the option to expand up to 8TB, the NVR is capable of storing your 24/7 footage. Mirror hard drive recording allows you to save footage to the NVR while simultaneously saving footage to a back-up hard drive, just in case. The pentaplex operation allows the system to manage numerous adjustments and capabilities. With simultaneous playback and live view viewable on the same screen, your security officer never has to miss a beat when reviewing past footage.

The four included dome cameras can be auto-detected by the NVR for easy setup, and connect using a single Cat5e cable for power and video. With IR LEDs and True Day/Night capabilities, the cameras deliver clear pictures even in low-light and no-light environments. With a 4mm fixed lens, digital noise reduction, and digital-wide dynamic range, the cameras are constantly adjusting to provide the clearest pictures possible. Enclosed in an IP66-rated enclosure, the cameras are waterproof, dustproof, and vandal-resistant.
If you own a Lorex by FLIR surveillance kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B:
System
Operating System Linux embedded
Pentaplex Operation Simultaneous view / record / playback / backup / remote monitoring
Number of Channels 4
Inputs & Outputs
Video Inputs 4 x PoE
VGA Output 1 x 1920 x 1080p at 60 Hz (1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 also available at 60 Hz)
HDMI Output 1 x 1920 x 1080p at 60 Hz (1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 also available at 60 Hz)
Audio Input 1 x RCA (2.0 Vpp, 1 kOhms)
Audio Output 1 x RCA (linear, 1 kOhms)
USB 1 x USB (at the back)
1 x USB (at the front)
PTZ Control 1 x RS485
Display
Live Display Speed 120 fps
OSD Controls Configurable
System Navigation USB mouse / IR remote control
Motion Area Setting Adjustable grid; 22 x 18
Sensitivity Levels 7
Upgrades Firmware: Via USB device and network
Software: Via Lorex website
User Access By user group
Time Synchronization Auto time sync by NTP server
Recording
Audio Compression G.711
Recording Resolution 1080p / 720p
Recording Rate 120 fps
Recording Quality Control 6 levels
Recording Schedule By hour / by day / by recording mode / by motion / by channel
Pre Recording Max. 30 seconds
Post Recording Max. 10 minutes
Reliability Watchdog / auto-recovery after power failure
Playback
Playback Channels Max. 4
Playback Speed Variable; max. up to 8x
Playback Players Backup Player, client software
Search By time, event, tag
Log Search Up to 2,000 lines for motion detected / configuration changes / connects / disconnects
video loss
Storage & Archive
Storage Type Up to 2 x SATA HDDs
Storage Capacity 2 x 4TB HDD
Backup Media USB Flash Drive & HDD
Backup File Format MP4
Connectivity
Cloud Connectivity Lorex Stratus Connectivity
Supported Operating Systems Windows 7, 8 / Mac OS X Snow Leopard 10.6 and above
Supported Browsers Internet Explorer, Safari, Chrome, Firefox
Email Notification Text with snapshot
Mobile App Support iPad / iPhone / Android smartphones 2.3 and above, Android tablets 3.2 and above
DDNS Lorex DDNS, IPServer, DynDNS, PeanutHull, NO-IP
System Configuration Full setup configuration over network
Ports Programmable by user
Network Protocols TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, NFS, UPnP
Network Interface 1 x RJ-45, 10/100/1000 Mbps 4 x Independent PoE Ethernet
Network Data Transfer Rate 32 kb to 8 MB/sec
General Attributes
Power Consumption ≤15 W (without HDD)
Power Supply Voltage 100 to 240 VAC, 47 to 63 HZ, 3 A
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Relative Humidity Range 10 to 90%
Dimensions (W x D x H) 17.5 x 11.4 x 1.8" / 445.0 x 290.0 x 45.0 mm
Weight ≤4.4 lb / 2.0 kg
Packaging Info
Package Weight 25.4 lb
Box Dimensions (LxWxH) 20.0 x 16.0 x 15.0"
The user manual for the Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B can be downloaded in .pdf format if it did not come with your new surveillance kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lorex by FLIR users keep a unique electronic library for Lorex by FLIR surveillance kitss, where you can use our link to download the user manual for the Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B.

The user manual lists all of the functions of the Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B, all the basic and advanced features and tells you how to use the surveillance kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lorex by FLIR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lorex by FLIR 4-Channel 1080p NVR with 1TB HDD and 4 LNR341D4B. User manuals are also available on the Lorex by FLIR website under Surveillance - Surveillance Video - Surveillance Kits.
