User manual for Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W
Overall Rating: 4.0
80% of respondents would recommend this to a friend.
- Manufacturer: Lorex by FLIR
- Basic description and contents of package
- Product classification: Surveillance - Surveillance Video - Surveillance Kits
- Safety instructions
- Startup and operation of the surveillance kits
- Tips for setting up your Lorex by FLIR
- Settings and expert assistance
- Contact Lorex by FLIR service
- Troubleshooting
- Warranty information
- Price: 389 USD
|
We recommend checking out our discussion threads on the Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W,
which address similar problems with connecting and setting up Surveillance Kits Lorex by FLIR.
|
User manual for the Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W
The user manual for the Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Kits.

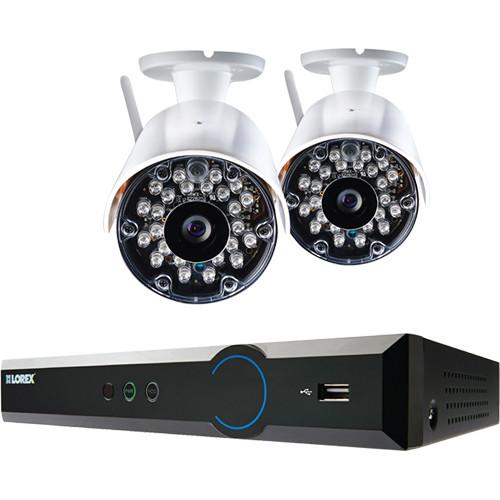

The LH034 Eco Blackbox3 4-Ch 1TB HDD DVR with Two Wireless Outdoor Cameras from Lorex provides you with a feature-rich analog DVR and two versatile outdoor-rated day/night wireless bullet cameras to give you the basic tools you need to set up a comprehensive surveillance system. The DVR's 1TB installed HDD can be upgraded later to as much as 4TB, and the audio-in and out ports allow you to integrate it into a PA system with external microphones and speakers wired to it. This is a full pentaplex DVR that allows you to view, record, playback, backup, and remotely access the system simultaneously so you never have to stop recording to work with the system. Multiple recording modes, H.264 video and G.711 audio compression, and adjustable frame rates allow the user to tailor the surveillance coverage to their needs and optimize the available HDD space. When connected to the Internet, the DVR is accessible remotely via most web browsers and on mobile devices with a free app installed.
|
If you own a Lorex by FLIR surveillance kits and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W:
| Operating System | Linux, embedded | | Signal System | NTSC, PAL | | Recording Resolution | NTSC:
960H: 960 x 480, 960 x 240, 480 x 240
D1 mode: 720 x 480 (D1), 720 x 240, 360 x 240
PAL:
960H: 960 x 576, 960 x 288, 480 x 288
D1 mode: 720 x 576 (D1), 720 x 288, 360 x 288 | | Recording Rate | NTSC: 120 fps, total
PAL: 100 fps, total | | Video Compression | H.264 | | Channels | 4 | | Storage | 1 x 1TB HDD | | Display Resolution | 1920 x 1080, 1440 x 900, 1280 x 1024, 1024 x 768, 800 x 600 | | Display Rate | NTSC: 120 fps
PAL: 100 fps | | Switching Method | OSD with mouse, IR remote, remote access | | Display Modes | 1, 4, Sequential | | Video Inputs | 4 x BNC | | Video Outputs | 1 x HDMI
1 x VGA
1 x BNC | | Audio Inputs | 2 x RCA | | Audio Outputs | 1 x RCA | | Audio Compression | G.711 | | PTZ Control | 1 x RS-485 port
Supported protocols: Pelco D & P | | USB Port | 1 x front
1 x rear | | Alarm I/O | None | | Network Interface | 1 x RJ-45 10/100 Ethernet port | | Network Protocol Support | TCP/IP, DHCP, UDP, DDNS, PPPoE | | System Compatibility | Windows 7/8
Mac OSX 10.6.6 and above
Intel processors only | | Power Requirements | Power supply:
In: 100 - 240 VAC
Out: 12 VDC, 2A, 50/60 Hz | | Power Consumption | 10 W without HDD installed, approximately | | Environmental | Operating Temperature: 32 to 104°F (0 to 40°C)
Humidity: 10 to 90%, relative humidity | | Dimensions | 11.8 x 8.7 x 2.0" (30 x 22 x 5 cm) | | Weight | 2.2 lb (1 kg) | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 17.4 x 13.2 x 11.5" | |
The user manual for the Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W can be downloaded in .pdf
format if it did not come with your new surveillance kits, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Lorex by FLIR users keep a unique electronic library
for Lorex by FLIR surveillance kitss,
where you can use our link to download the user manual for the Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W.
The user manual lists all of the functions of the Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W,
all the basic and advanced features and tells you how to use the surveillance kits.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Lorex by FLIR service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Lorex by FLIR LH034 Eco Blackbox3 4-Ch 1TB HDD DVR LH03041TC2W. User manuals are also
available on the Lorex by FLIR website under Surveillance - Surveillance Video - Surveillance Kits.
