User manual M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000

Operating instructions and pdf manual for use - M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000 User manual, User manual M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000, M-Audio, AV, 40, Active, 2-Way, Desktop, Monitor, MA99006514


User manual for M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000
  • Manufacturer: M-Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your M-Audio
  • Settings and expert assistance
  • Contact M-Audio service
  • Troubleshooting
  • Warranty information
  • Price: 149 USD
We recommend checking out our discussion threads on the M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000, which address similar problems with connecting and setting up Studio Monitors M-Audio.



User manual for the M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000

The user manual for the M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000 provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

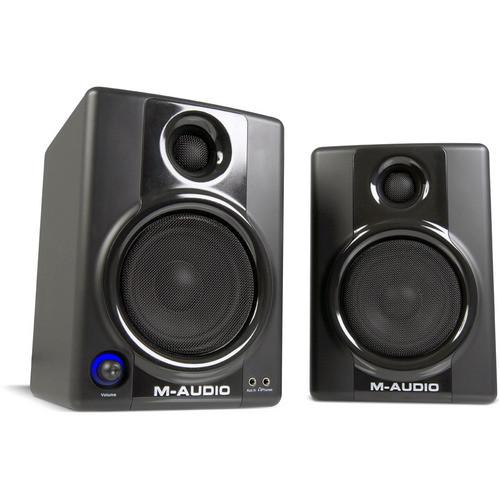

The AV 40 Active 2-Way Desktop Monitor Speakers (Pair) from M-Audio provide high-quality audio for even the smallest of workspaces. Ideal for use with a home or mobile recording studio, the wooden bass-reflex cabinets each feature a 4" polypropylene-coated woofer and a 1" silk dome tweeter to provide a wide frequency response. Internal Class-A/B amplifiers provide 20W of power to each channel for strong performance with low distortion.

The rear panel features stereo RCA and 1/4" TRS inputs for wide compatibility with both consumer and professional devices. The front panel offers a 3.5mm aux input for connecting an MP3 player or CD player. OptImage III waveguides on the front baffles help to improve detail and clarity, as well as provide an accurate stereo image. A 3.5mm headphone jack offers private monitoring, while the front-panel volume control lets you make convenient adjustments. The speakers are magnetically shielded for use near video monitors.
If you own a M-Audio studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000Download user manual for M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000
(PDF file, 1.7 MB)
Additional parameters of the M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000:
Specifications
    Type Two-way desktop reference speaker
    Low Frequency Driver 4" (102 mm) Polypropylene Woofer
    High Frequency Driver 1" (25 mm) Silk Dome Tweeter
    Amplifier 20 W / Channel Continuous into 4 Ohms, Class-A/B
    Frequency Range 85 Hz - 20 kHz
    Maximum Sound Pressure Level (SPL) 101.5 dB
    Crossover 2.7 kHz
    Signal to Noise Ratio > 90 dB Typical, A-Weighted
    Input Impedance 10 kOhms, Unbalanced
    20 kOhms, Balanced
    Input Sensitivity 100 mV Pink Noise Input for 90 dBA SPL, Volume Control at Maximum
    Connectors Left Speaker:
    1 x Stereo RCA Input (2 Jacks, L/R)
    1 x Stereo 1/4" TRS Input (2 Jacks, L/R)
    1 x 3.5 mm Aux Input (Front Panel)
    1 x 3.5 mm Headphone Jack (Front Panel)
    1 x Spring Terminal Output to Right Speaker
    Right Speaker:
    1 x Spring Terminal Input from Left Speaker
    Controls and Indicators 1 x Power Switch
    1 x Volume Control (Front Panel)
    Indicators Blue Power LED Ring Around Volume Knob
    Cabinet Vinyl-Laminated MDF
    Protection RF Interference, Output Current Limiting, Over Temperature, Turn On/Off, Transient, Subsonic Filter
    Shielded Yes
    Power 100-120 V ~50/60 Hz, powered via attached 2-conductor line cord
    Dimensions (HxWxD) 8.75 x 6 x 7.25" (222 x 152 x 184 mm)
    Weight 14 lbs (6.34 kg)
    Packaging Info
    Package Weight 16.8 lb
    Box Dimensions (LxWxH) 17.0 x 13.0 x 10.0"
    The user manual for the M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000 can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other M-Audio users keep a unique electronic library for M-Audio studio monitorss, where you can use our link to download the user manual for the M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000.

    The user manual lists all of the functions of the M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from M-Audio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the M-Audio AV 40 Active 2-Way Desktop Monitor MA99006514000. User manuals are also available on the M-Audio website under Pro Audio - Recording - Studio Monitors.
