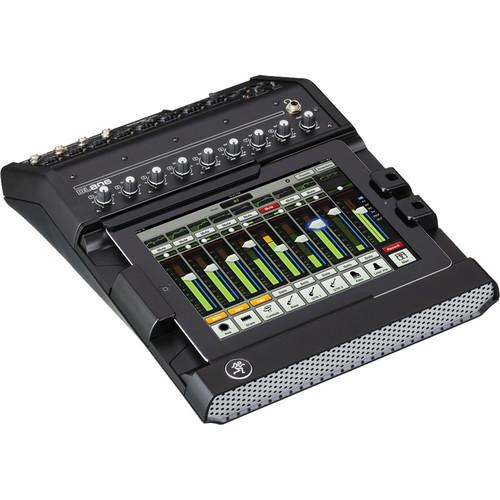

The DL806 iPad-Controlled 8-Channel Digital Mixer with Lightning Connector from Mackie allows the entire process of live-sound mixing to be controlled by an iPad with lightning connector. The DL806 features 8 Onyx microphone preamps, 24-bit A/D & D/A converters, powerful internal DSP processing and an iPad docking faceplate. The DL806 has 4 XLR inputs, 4 XLR/TRS combo inputs and 4 aux sends. Integrate your Apple iPad and complete the setup for a live-sound mixing experience that takes advantage of the iPad's touch screen capabilities and wireless control.

Use Mackie's Master Fader app to mix live audio and access the DL806's internal processing, including 4-band EQ, compression, gate, delay, reverb and 31-band master buss graphic EQ. Add a wireless router (not included) and mix with your iPad remotely, at various locations of a venue, hall, etc. The DL806 takes full advantage of the iPad's flexibility.
If you own a Mackie digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mackie DL806 iPad-Controlled 8-Channel Digital DL806-LIGHTNING in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mackie DL806 iPad-Controlled 8-Channel Digital DL806-LIGHTNING:
Specifications
Analog
Input Connections 4 x XLR balanced
4 x XLR/TRS combo inputs
Mic Preamps Onyx
Input Impedances Channels 1 - 4: 3 kOhms
Channels 5- 8: 3 kOhms XLR, 30 kOhms 1/4" TRS
Maximum Input Level XLR: +21 dBu
1/4" TRS: +30 dBu
Gain XLR: 0 to 60 dB
1/4" TRS: -20 to 40 dB
Phantom Power +48 V
10 mA max per mic, with up to 8 mics
5 mA max per mic, with up to 16 mics
Output Connections 2 x XLR balanced (L/R)
Output Impedance 600 ohms
Maximum Output Level +21 dBu
AUX Sends 1/4" TRS - supports balanced/unbalanced
240 ohms balanced, 120 ohms unbalanced
+21 dBu max output level
Digital Audio
Sample Rate 48 kHz
Bit Depth 24-bit
Latency 1.5 ms
Performance
Frequency Response 20 Hz to 20 kHz, +0 /-1 dB
All inputs to all outputs
THD < 0.005%
Mic input to main output, 1 kHz @ -1 dBFS
EIN -128 dBu @ 150 ohms termination
Noise Mic input to main output, A-weighted:
-79 dBu, with channel and main faders @ 0 dB
-90 dBu, with channel and main faders @ -∞ dB
Crosstalk Adjacent inputs: < -120 dB @ 1 kHz
Outputs: < -105 dB @ 1 kHz
Signal-to-Noise Ratio 92 dB
Ref +4 dBu, one channel and main fader @ 0 dB, A-weighted
Dynamic Range 109 dB
One channel and main fader @ 0 dB, A-weighted
CMRR > 70 dB @ 1 kHz (60 dB gain)
Networking
Connector 100 MB Ethernet
Control Complete
Simultaneously Connected Remote Stations Up to 10 iPads
iPad System Requirements Version Requirement: iOS 5.1 or higher [Master Fader], iOS 6 or higher [My Fader]
Wired iPad: iPad (4th generation), iPad mini (requires optional iPad mini tray accessory)
Wireless iPad: All iPad models
Wireless iPhone / iPod touch: iPod touch (4th and 5th generation), iPhone 4, iPhone 4S, iPhone 5
Control Applications:
iPad: Mackie Master Fader app
iPhone: Mackie My Fader app
Power
External Power Supply Yes
100-240 VAC, 50-60 Hz, Universal
User-replaceable IEC
Output Voltage 12 VDC
Current 4 A
DC Plug 5.5 mm x 2.5 mm barrel with locking ring
Power Consumption 48 W max
General
Operating Temperature 32 to 104°F (0 to 40°C)
Dimensions (W x H x D) 11.5 x 3.7 x 15.4" (291 x 95 x 391 mm)
9U rackmount plus space for connections
Weight 6.9 lb (3.1 kg)
Packaging Info
Package Weight 13.3 lb
Box Dimensions (LxWxH) 19.0 x 18.3 x 6.1"
