User manual for the Mackie HD1501 1200W 15" Powered Subwoofer HD1501
The user manual for the Mackie HD1501 1200W 15" Powered Subwoofer HD1501 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

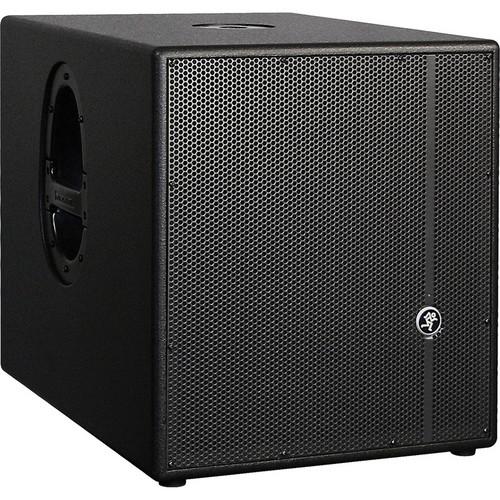

The HD1501 from Mackie is a powered subwoofer that delivers powerful bass from a lightweight and compact design. An ideal companion to the HD-series 2-way loudspeakers, the sub has a ported bass-reflex birch cabinet to provide tight, punchy low frequency reinforcement. The cabinet houses a high-power 15" woofer that was designed by EAW to deliver bass frequencies as low as 36Hz.
The internal Class-D amplifier provides a peak power of 1200W for an incredibly strong performance with low distortion. The efficient amplifier design results in fast recovery and high SPL levels. Active electronics include a symmetrical Linkwitz-Riley crossover, precision tuning filters for accurate bass, plus phase alignment to work perfectly with full-range loudspeakers. The sub has dual XLR inputs, plus full-range and high-pass XLR outputs for mono or stereo applications.
The sub has level and phase controls so you can adjust the performance to meet your needs. LED indicators give a visual display of subwoofer status, including when the integrated limiter or protection circuitry are engaged. The top of the subwoofer has a standard pole socket for easily mounting a full-range loudspeaker.
If you own a Mackie pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Mackie HD1501 1200W 15" Powered Subwoofer HD1501 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mackie HD1501 1200W 15" Powered Subwoofer HD1501:
| Active or Passive || Active |
| Frequency Response || 36-145Hz (-10dB) |
| Amplifier || 600W RMS, 1200W Peak, Class-D |
| Maximum Sound Pressure Level (SPL) || 126dB Measured |
| Total Harmonic Distortion (THD) || < 0.03% |
| Input Impedance || 20 kOhms |
| Crossover || 100Hz, 24dB/Oct Symmetrical Linkwitz-Riley |
| Low Frequency Driver || 15" (381mm) Paper Diaphragm Woofer with Ferrite Magnet and 3" Voice Coil |
| Enclosure Material || 15mm Birch Plywood with Black Paint Finish, Powder-Coated Steel Grille, and 2 Integrated Handles |
| Connectors || 2 x XLR Inputs |
1 x Full-Range XLR Output
1 x High-Pass XLR Output
1 x Power Input
| Mounting || 1 x Standard Pole Socket |
| Power || 100-240VAC, 50/60Hz |
| Dimensions (HxWxD) || 20 x 18.25 x 25" (508 x 464 x 635mm) |
| Weight || 80 lbs (36.4kg) |
| Package Weight || 92.0 lb |
| Box Dimensions (LxWxH) || 30.0 x 24.0 x 23.0" |
The user manual for the Mackie HD1501 1200W 15" Powered Subwoofer HD1501 can be downloaded in .pdf
format if it did not come with your new pa speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Mackie users keep a unique electronic library
for Mackie pa speakerss,
where you can use our link to download the user manual for the Mackie HD1501 1200W 15" Powered Subwoofer HD1501.
The user manual lists all of the functions of the Mackie HD1501 1200W 15" Powered Subwoofer HD1501,
all the basic and advanced features and tells you how to use the pa speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Mackie service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Mackie HD1501 1200W 15" Powered Subwoofer HD1501. User manuals are also
available on the Mackie website under Pro Audio - Live Sound - PA Speakers.
