User manual Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer

Operating instructions and pdf manual for use - Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer User manual, User manual Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer, Mackie, Mackie, ProFX8v2, 8-Channel, Live, Sound, Mixer,


User manual for Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer

Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Analog Recording Mixers
  • Safety instructions
  • Startup and operation of the analog recording mixers
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
  • Price: 250 USD
We recommend checking out our discussion threads on the Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer, which address similar problems with connecting and setting up Analog Recording Mixers .



User manual for the Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer

The user manual for the Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer provides necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

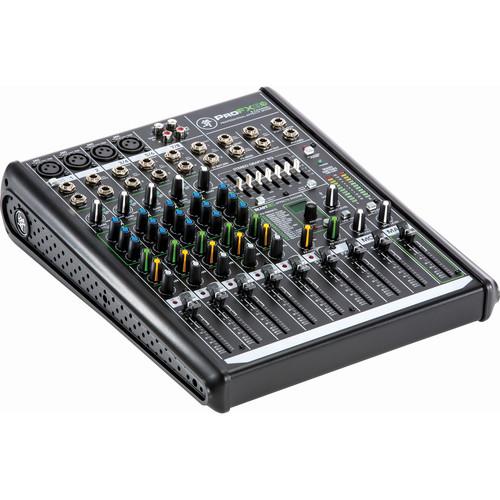

This B&H Kit features the Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX, as well as a padded carrying case for transporting the mixer to and from gigs. The package is useful in a wide range of recording and amplified sound applications, such as for music and public address.
If you own a analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer:
Specifications
  • Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX
    Equivalent Input Noise 150 ohm source impedance, 20 Hz to 20 kHz:
    Mic in to insert send out, max gain -125 dBu
    Residual Output Noise All outputs, master levels off, all channel levels off: -95 dBu
    All outputs, master levels unity, one channel level unity: -80 dBu
    Frequency Response Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz
    THD+N 22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.03%
    Attenuation and Crosstalk Adjacent Inputs @ 1 kHz: -90 dB
    Inputs to Outputs @ 1 kHz: -80 dB
    Fader Off @ 1 kHz: -75 dB
    Mute Switch / Break Switch Mute @ 1 kHz: -90 dB
    Common Mode Rejection Ratio Mic In to Main Out, max gain, 1 kHz: 70 dB
    Maximum Level All inputs: +22 dB
    Main Out XLR: +28 dBu
    All other outputs: +22 dBu
    Impedance Mic In 3.8 kOhms
    Channel Insert Return 10 kOhms
    All other inputs ≥ 20 kOhms
    Tape output 1 kOhms
    Phones output 25 ohms
    All other outputs 120 ohms unbalanced, 240 ohms balanced
    Equalization Low ±15 dB @ 80 Hz
    Mid ±15 dB @ 2.5 kHz
    High ±15 dB @ 12 kHz
    Low Cut Filter 18 dB/octave @ 100 Hz
    Maximum Voltage Gain Mic Input Channel to:
    Insert Output: 50 dB
    Tape Output: 60 dB
    USB Output: 50 dB
    1/4" Main Output: 70 dB
    XLR Main Output: 76 dB
    Monitor Send: 76 dB
    FX Send: 90 dB

    Mono Line Input Channel to:
    Insert Output: 30 dB
    Tape Output: 40 dB
    USB Output: 30 dB
    XLR Main Output: 56 dB
    Monitor Send: 56 dB
    FX Send: 70 dB

    Stereo Line Input Channel to:
    Tape Output: 30 dB
    USB Output: 30 dB

    XLR Main Output: 46 dB
    Monitor Send: 46 dB
    FX Send: 60 dB

    Tape Input to:
    XLR Main Output: 36 dB

    USB Input to:
    XLR Main Output: 36 dB

    Stereo Return to:

    XLR Main Output: 26 dB
    Digital Effects I/O: mono input / stereo output
    Number of Presets: 16
    Meters Main L/R Mix:
    Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30

    Channel OL LED:
    Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
    Graphic EQ Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k
    Gain: ±15 dB
    Assignable to Main or Monitor, bypassable
    USB USB Recording to Computer (Mac & PC)
    Phantom Power 48 VDC to all mic channels simultaneously
    AC Power Requirements Power Consumption: 20 watts
    Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz
    Class II Detachable Line Cord: Yes
    Operating Temperature 32 - 104˚F (0 - 40˚C)
    Dimensions 3.6 x 11.4 x 14.1" (91 x 290 x 358 mm)
    Weight 7.1 lb (3.2 kg)
    Packaging Info
    Box Dimensions (LxWxH) 17.8 x 15.6 x 6.9"
  • Gator Cases G-MIXERBAG-1515 Padded Nylon Mixer/Equipment Bag
    Interior Dimensions 15.0 x 15.0 x 5.5" (381 x 381 x 140 mm)
    Exterior Dimensions 16.0 x 16.0 x 5.5" (406 x 406 x 140 mm)
    Weight 2.50 lb (1.13 kg)
    Packaging Info
    Box Dimensions (LxWxH) 18.5 x 17.1 x 1.0"
The user manual for the Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer can be downloaded in .pdf format if it did not come with your new analog recording mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for analog recording mixerss, where you can use our link to download the user manual for the Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer.

The user manual lists all of the functions of the Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer, all the basic and advanced features and tells you how to use the analog recording mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Mackie Mackie ProFX8v2 - 8-Channel Live Sound Mixer. User manuals are also available on the website under Pro Audio - Recording - Analog Recording Mixers.
