Specifications

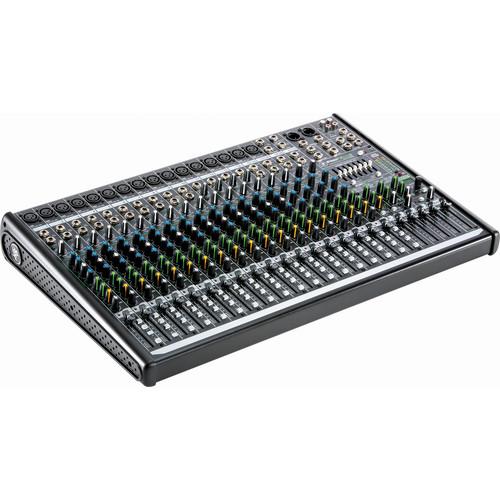

Mackie ProFX22v2 22-Channel Sound Reinforcement Mixer with Built-In FX
Equivalent Input Noise
150 ohm source impedance, 20 Hz to 20 kHz: Mic in to insert send out, max gain -128 dBu
Residual Output Noise
All outputs, master levels off, all channel levels off: -95 dBu All outputs, master levels unity, one channel level unity: -85 dBu
Frequency Response
Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 40 kHz
THD+N
22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.01%
Attenuation and Crosstalk
Adjacent Inputs @ 1 kHz: -90 dB Inputs to Outputs @ 1 kHz: -80 dB Fader Off @ 1 kHz: -75 dB Mute Switch / Break Switch Mute @ 1 kHz: -100 dB
Common Mode Rejection Ratio
Mic In to Main Out, max gain, 1 kHz: 70 dB
Maximum Level
All inputs: +22 dB Main Out XLR: +28 dBu All other outputs: +22 dBu
Impedance
Mic In 3.3 kOhms Channel Insert Return 10 kOhms All other inputs ≥ 20 kOhms Tape output 1 kOhms Phones output 25 ohms All other outputs 120 ohms unbalanced, 240 ohms balanced
Equalization
Mono Channels: Low ±15 dB @ 80 Hz Mid ±15 dB @ 100 Hz - 8 kHz High ±15 dB @ 12 kHz Low Cut Filter 18 dB/octave @ 100 Hz
Stereo Channels Low ±15 dB @ 80 Hz Mid ±15 dB @ 2.5 kHz High ±15 dB @ 12 kHz
Maximum Voltage Gain
Mic Input Channel to: Insert Output: 50 dB Tape Output: 60 dB USB Output: 60 dB 1/4" Main Output: 70 dB XLR Main Output: 76 dB Monitor Send: 81 dB FX Send: 90 dB
Mono Line Input Channel to: Insert Output: 30 dB Tape Output: 40 dB USB Output: 40 dB XLR Main Output: 56 dB Monitor Send: 61 dB FX Send: 70 dB
Stereo Line Input Channel to: Tape Output: 30 dB USB Output: 30 dB
XLR Main Output: 46 dB Monitor Send: 51 dB FX Send: 55 dB
Tape Input to: XLR Main Output: 36 dB
USB Input to: XLR Main Output: 36 dB
Stereo Return to: Mon Output: 30 dB XLR Main Output: 26 dB
Digital Effects
I/O: mono input / stereo output Number of Presets: 16
Meters
Main L/R Mix: Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30
Channel OL LED: Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
Graphic EQ
Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k Gain: ±15 dB Assignable to Main or Monitor, bypassable
USB
USB Recording to Computer (Mac & PC)
Phantom Power
48 VDC to all mic channels simultaneously
AC Power Requirements
Power Consumption: 45 watts Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz Class II Detachable Line Cord: Yes
