User manual for the Mackie SRM750 Dual 15" HD Loudspeaker (1600W) SRM750

The user manual for the Mackie SRM750 Dual 15" HD Loudspeaker (1600W) SRM750 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

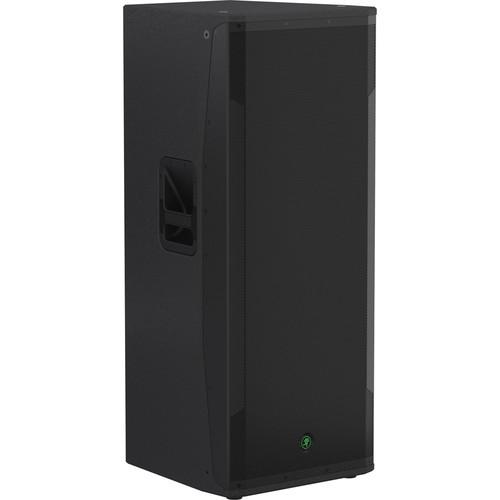

The 1600W SRM750 Dual 15" HD Loudspeaker from Mackie is designed for professional live sound reinforcement applications. The all-wood, internally-braced cabinet houses two 15" high-output LF drivers and a 1.4" titanium dome compression driver which is front-ported to optimize low-frequency extension.
The speaker features two XLR-1/4" Wide-Z combo jacks, two RCA inputs, and one XLR "thru". It also features two-way digital crossover, driver time alignment, and phase correction. The speaker is flyable and can be hanged using only standard M10 eyebolts.
If you own a Mackie pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mackie SRM750 Dual 15" HD Loudspeaker (1600W) SRM750 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mackie SRM750 Dual 15" HD Loudspeaker (1600W) SRM750:
Enclosure Material Cabinet: 15mm Poplar
Finish: High durability black paint
Grille: Powder-coated 18 gauge steel
Frequency Response 42 Hz to 20 kHz (-3dB)
37 Hz to 20 kHz (-10 dB)
Power Capacity Power Amplification System:
800 W RMS
1600 W peak
Low Frequency Power Amplifier:
400 W RMS
800 W peak
High Frequency Power Amplifier:
400 W RMS
800 W peak
THD < 1%
Cooling Convection
Design Class D
Carrying/Transport Options 2 x Side handles
Safety Peak and RMS limiting
Thermal protection on amplifier and power supply
Maximum Sound Pressure Level (SPL) 135 dB
Impedance 8 kΩ, balanced
10 MΩ, unbalanced
25 kΩ, RCA (channel 2 only)
Dispersion H x V: 90 x 50°
Crossover 3 kHz
High Frequency Driver Horn Entry Diameter: 1.4" (3.6 cm)
Voice Coil Diameter: 1.0" (2.5 cm)
Diaphragm Material: Titanium
Magnet Material: Ferrite
Low Frequency Driver Woofer Diameter: 2 x 15" (38.1 cm)
Voice Coil Diameter: 2.5" (6.4 cm)
Diaphragm Material: Paper
Magnet Material: Ferrite
Connections 2 x XLR, 1/4" combo jack female, Wide-Z input (channel 1 and channel 2)
2 x RCA female, stereo input
1 x XLR male, thru (active in the "mix" position, passive in the "out" position)
1 x 3-Pin IEC, AC power in
Mounting Options Floor mount, pole mount, or fly
Power 100 - 250 VAC, 50/60 Hz, 200 W, auto-switching
Dimensions (H x W x D) 42.5 x 17.5 x 18.0" (108.0 x 44.5 x 45.8)
Weight 89 lb (40.4 kg)
Packaging Info
Package Weight 105.5 lb
Box Dimensions (LxWxH) 45.5 x 24.0 x 24.0"
The user manual for the Mackie SRM750 Dual 15" HD Loudspeaker (1600W) SRM750 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Mackie users keep a unique electronic library for Mackie pa speakerss, where you can use our link to download the user manual for the Mackie SRM750 Dual 15" HD Loudspeaker (1600W) SRM750.

The user manual lists all of the functions of the Mackie SRM750 Dual 15" HD Loudspeaker (1600W) SRM750, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Mackie service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Mackie SRM750 Dual 15" HD Loudspeaker (1600W) SRM750. User manuals are also available on the Mackie website under Pro Audio - Live Sound - PA Speakers.
