User manual for the Magenta Voyager HD-One DX-500 HDMI Extender Kit 2211114-01

The user manual for the Magenta Voyager HD-One DX-500 HDMI Extender Kit 2211114-01 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

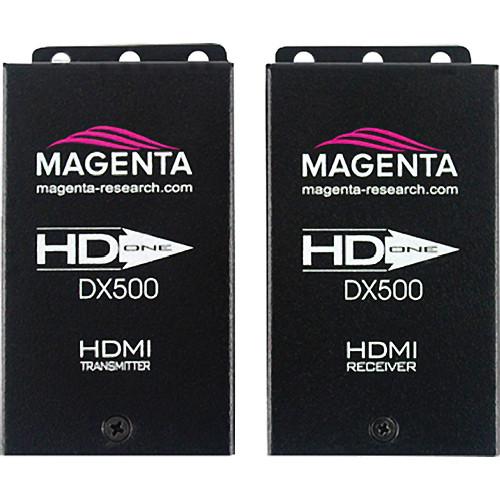

You can add greater distance between your high-definition A/V source and display with the HD-One DX-500 HDMI Extender Kit from Magenta Research. This kit consists of a transmitter and receiver unit, and 5VDC universal power supplies for each unit. The transmitter and receiver units can be placed up to 500’ apart and connected via a CAT6 cable (sold separately) to transfer high-definition video and audio signals.

The extender supports video resolutions up to WUXGA (1920 x 1200) at 60 Hz, so you need not worry about a compromise on video quality. In addition, even the audio quality is preserved since the extender offers support for Dolby TrueHD and DTS-HD Master Audio.

For safe video/audio transmission that is protected from unwanted access, the extender supports HDCP encryption. Further, with improved heat dissipation, low power consumption, and appreciable resistance to emissions and interference, this extender provides noise-free transmission and is also environment friendly.
If you own a Magenta Voyager video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Magenta Voyager HD-One DX-500 HDMI Extender Kit 2211114-01 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Magenta Voyager HD-One DX-500 HDMI Extender Kit 2211114-01:
Connectors
Video In Transmitter & Receiver: HDMI Type A
Audio In/Out Embedded with video signal
Power Transmitter/Receiver: 1 x DC power
UTP In/Out RJ45
General
Video Supported HDMI 1.4, HDCP compliant
DVI video modes
Standard formats @ 60 Hz: 640 x 480, 800 x 600, 1024 x 768, 1152 x 864, 1280 x 768, 1280 x 960, 1280 x 1024, 1360 x 760, 1366 x 768, 1600 x 1200,1680 x 1050, 1920 x 1080, 1920 x 1200
HDTV: 480p, 720p, 1080i, and 1080p
Resolution WUXGA 1920 x 1200 @ 60 Hz

Note: To achieve maximum resolution and/or distance, it is strongly recommended that you use standard network CAT6 or better cable with a solid 24 AWG copper wire. The use of lower quality cables will lower overall performance. Please contact Magenta for cable recommendations.
Audio Support HDMI 1.3 Audio: SPDIF 2-channel PCM or 5.1, 6.1 Dolby Digital or DTS
Transmission Distance 500' (152 m)

Note: To achieve maximum resolution and/or distance, it is strongly recommended that you use standard network CAT6 or better cable with a solid 24 AWG copper wire. The use of lower quality cables will lower overall performance. Please contact Magenta for cable recommendations.
Bandwidth 3.4 Gb/s
Cables Supported CAT5e, CAT6, CAT6a, CAT6e, CAT7 UTP, STP, or FTP (CAT6 or better is recommended)

Note: For best performance, use one continuous UTP / STP or FTP cable with as few breaks as possible (i.e., patch bays, wall plates, or floor boxes).
Magenta recommends mounting and connecting all cables to the HD-One DX500 Series components before applying power.
Make sure that the Category cable you intend to use has been tested to comply with the T568B wiring specification.
Magenta recommends that all Category cables be pre-terminated and tested. Cables terminated on-site or in an existing infrastructure should be tested before use to ensure compliance with the TIA-EIA T568B specification. Using incorrectly terminated category cables can damage the extender units.
Enclosure Metal
Indicators Video status, data link, power
Compliance RoHS, CE, FCC Class A
Power Requirements Each Unit: 5 VDC @ 2.6 A maximum
Power Consumption 1,200 mA maximum
Temperature Tolerance Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity Tolerance Up to 95% non-condensing
Dimensions Each Unit: 3.2 x 1.9 x 1.0" (82.0 x 48.6 x 24.8 mm)
Weight Each Unit: 0.30 lb (0.14 kg)
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 9.9 x 5.4 x 3.9"
