User manual Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE

Operating instructions and pdf manual for use - Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE User manual, User manual Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE, Magewell, XI104AE, Single, VGA, , Quad, CVBS, PCI,


User manual for Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE

Magewell XI104AE Single VGA   Quad CVBS PCI Express XI-104-AE
  • Manufacturer: Magewell
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your Magewell
  • Settings and expert assistance
  • Contact Magewell service
  • Troubleshooting
  • Warranty information
  • Price: 789 USD
We recommend checking out our discussion threads on the Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE, which address similar problems with connecting and setting up Computer Hardware Magewell.



User manual for the Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE

The user manual for the Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

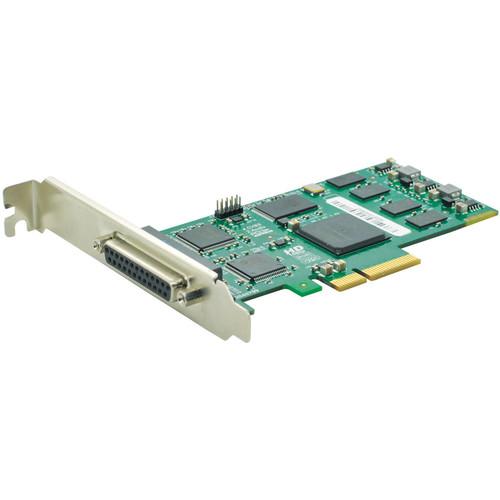

Capture or stream from analog video sources with the Magewell XI104AE PCI Express Video Capture Card. The front panel of the card houses a single DB25 port. This port connects to the included breakout cable which has one VGA and four composite video inputs, as well as two analog stereo audio inputs. Since VGA signals can support many non-standard aspect ratios, the XI104AE will automatically scale the signal to avoid letter or pillar-boxing. This card works with standard drivers in all the supported iterations of Windows, so no extra drivers are required.
If you own a Magewell computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE:
Host Interface PCI Express x4, 700 MB/s transmission bandwidth
Input Interface 1 x DB25 (can connect 1 x VGA + 4 x CVBS + dual stereo audio)
Input Formats 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
VGA Input 640×400 - 2048×1536 when the pixel rate is below 170MHz
CVBS Input PAL/NTSC
SD Output 176×144-768×576 @ 1-30 fps
Sampling Rates Video: 10-bit precision
RGB/YPbPr: 170 MHz frequency
CVBS: 27 MHz frequency

Audio: 24-bit/48 KHz
Color Space YUYV, UYVY, I420, 24-bit RGB, 32-bit RGB
Hardware adjustable
Deinterlacing Vertical filter deinterlacing; motion-adaptive deinterlacing
Image Scale Hardware 5-Tap scale
Image Flip Horizontal; vertical
Image Adjustment Saturation adjustment/control of monochrome and color
Gamma adjustment
Seperate adjustment of brightness and contrast of R/G/B
OS Support Windows XP Professional
Windows Server 2003
Windows Vista
Windows Server 2008
Windows 7
Windows Server 2008 R2
Windows 8
Windows 8.1
Software Compatibility Windows Media Encoder
Adobe Flash Media Live Encoder
Real Producer Plus
VLC
Onboard Memory 256MB DDR2
Firmware Upgradeable Yes
Power Consumption <= 6 W
Dimensions 5 x 2.7" / 126.5 x 68.9 mm
The user manual for the Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Magewell users keep a unique electronic library for Magewell computer hardwares, where you can use our link to download the user manual for the Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE.

The user manual lists all of the functions of the Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Magewell service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Magewell XI104AE Single VGA Quad CVBS PCI Express XI-104-AE. User manuals are also available on the Magewell website under Professional Video - Post Production - Computer Hardware.
