Magewell XI204XE Dual DVI   Quad CVBS PCI Express XI-204-XE
  • Manufacturer: Magewell
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your Magewell
  • Settings and expert assistance
  • Contact Magewell service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Magewell XI204XE Dual DVI Quad CVBS PCI Express XI-204-XE, which address similar problems with connecting and setting up Computer Hardware Magewell.



User manual for the Magewell XI204XE Dual DVI Quad CVBS PCI Express XI-204-XE

The user manual for the Magewell XI204XE Dual DVI Quad CVBS PCI Express XI-204-XE provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

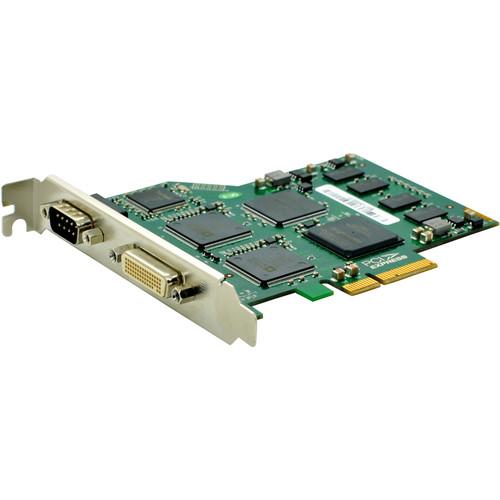

With the Magewell XI204XE PCI Express Video Capture Card, you can stream video from analog and digital sources simultaneously to your PC. This card is capable of handling video from four standard definition and two high definition sources at once. The card itself features a DB9 port for analog audio and video as well as a DMS59 port for digital video. Included with the card are breakout cables to adapt the DB9 and DMS59 ports to accept DVI, VGA, HDMI, component, and composite video signals. Built into the card is an FPGA that can process the incoming video signal without placing the stress on your computer's CPU. The card can deinterlace, crop, and change the color space of the video in real time before being streamed to your PC. Because this card is plug-and-play compatible, you do not need to install any extra drivers.
If you own a Magewell computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Magewell XI204XE Dual DVI Quad CVBS PCI Express XI-204-XE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Magewell XI204XE Dual DVI Quad CVBS PCI Express XI-204-XE:
Host Interface PCI Express x4, 700 MB/s transmission bandwidth
Input Interface 1 x DMS59 port (2-channel DVI-I interface)
1 x DB9 port (4-channel composite video, dual stereo audio)
Video Inputs All inputs use included breakout cables (2 HD and 4 SD sources can be used simultaneously):
2 x DVI 1080p @ 60 Hz
2 x HDMI 1080p @ 60 Hz
2 x VGA
2 x YPbPr
4 x Composite Video
Audio Inputs 2 x Stereo LPCM audio signal
2 x RCA Analog stereo
Input Formats DVI: 1.0 standard 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
HDMI: 1.3 standard, supports 36-bit DeepColor
YPbPr: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
VGA: 640×400 - 2048×1536 when the pixel rate is below 170MHz
Composite: PAL/NTSC
Output Formats HD: 40×30 - 2048×1536, 1-100 fps
SD: 176×144 - 768×576, 1-30 fps
Sampling Rates Video: 10-bit, 170 MHz (RGB/Component), 225 MHz (HDMI/DVI)
Audio: 24-bit/48 KHz
Color Space YUYV, UYVY, I420, 24-bit RGB, 32-bit RGB
Hardware switchable
Deinterlacing Vertical filter deinterlacing; motion-adaptive deinterlacing
Image Scale Hardware 5-Tap scale
Image Mirroring Horizontal; vertical
Image Crop Yes
Image Adjustments Brightness/contrast/hue adjustment/saturation adjustment/control of monochrome and color/gamma adjustment
Separately adjust the brightness and contrast of R/G/B
OS Support Windows XP Professional
Windows Server2003
Windows Vista
Windows Server 2008
Windows 7
Windows Server 2008 R2
Windows 8
Windows 8.1
Software Compatibility Windows Media Encoder
Adobe Flash Media Live Encoder
Real Producer Plus
VideoLAN for Windows
Onboard Memory 256MB DDR2
Installation PCI-Express x4, x8, or x16 slot, can be installed in a 4RU chassis
Power Consumption <= 8 W
Dimensions 4.6 x 4" / 117 x 102.8 mm
